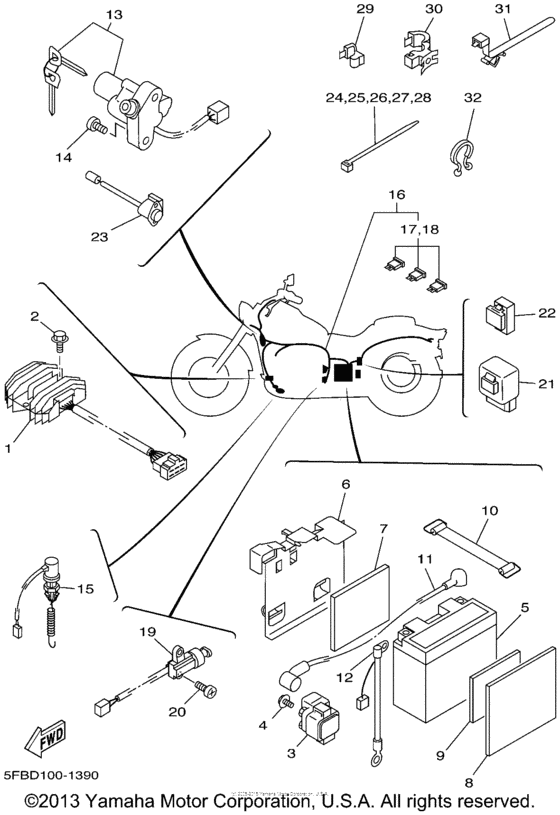

Electrical (1) Diagram Yamaha XVS650 V-Star Custom
- Year
- 2002
- Model code
- 5FBH
- Sales region
- USA
- Базовая модель
- XVS650PC
- Engine Capacity
- 650
- Model
- XVS650 (V-Star Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5KP-81960-00-00 Rectifier & Regulator Assy |
5KP-81960-00-00 |
from US $293.06 |
||
|
2
|
2
95804-06020-00 Bolt, Flange |
95804-06020-00 |
from US $1.42 |
||
| replacement | |||||
|
2
|
2
95814-06020-00 Bolt, Flange |
95814-06020-00 |
from US $1.36 |
||
|
3
|
3
4BH-81940-00-00 Starter Relay Assy (Rc19-005) |
4BH-81940-00-00 |
from US $97.40 |
||
| replacement | |||||
|
3
|
3
4BH-81940-02-00 Starter Relay Assy (Rc19-005) |
4BH-81940-02-00 |
from US $97.40 |
||
|
4
|
4
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.43 |
||
|
5
|
5
4TX-82100-01-00
Gt12B4 Gs Battery -
GS BATTERY - |
4TX-82100-01-00 |
— | ||
| replacements | |||||
|
5
|
5
GT1-2B400-00-00
Battery
GS BATTERY - |
GT1-2B400-00-00 |
— | ||
|
5
|
5
YT1-2BBS0-00-00
Bat Yt12B-Bs (Pt12B-4) Yu
GS BATTERY - |
YT1-2BBS0-00-00 |
— | ||
|
6
|
6
5BN-82129-00-00 Cover, Battery |
5BN-82129-00-00 |
from US $35.28 |
||
|
7
|
7
29N-14425-00-00 Damper 1 |
29N-14425-00-00 |
from US $2.36 |
||
|
8
|
8
4VR-2176E-00-00 Plate |
4VR-2176E-00-00 |
from US $15.30 |
||
|
9
|
9
29N-14425-00-00 Damper 1 |
29N-14425-00-00 |
from US $2.36 |
||
|
10
|
10
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $12.89 |
||
|
11
|
11
5BN-82115-00-00 Wire, Plus Lead |
5BN-82115-00-00 |
from US $31.03 |
||
|
12
|
12
5BN-82116-00-00 Wire, Minus Lead |
5BN-82116-00-00 |
from US $20.69 |
||
|
13
|
13
4TR-82501-01-00 Main Switch Steering Lock |
4TR-82501-01-00 |
from US $156.12 |
||
| replacement | |||||
|
13
|
13
4TR-82501-02-00 Main Switch Steering Lock |
4TR-82501-02-00 |
US $374.89 |
||
|
14
|
14
90149-08002-00 Screw |
90149-08002-00 |
from US $1.84 |
||
|
15
|
15
5KP-82530-00-00 Stop Switch Assy |
5KP-82530-00-00 |
from US $32.73 |
||
|
16
|
16
5BN-82590-40-00 Wire Harness Assy |
5BN-82590-40-00 |
US $370.51 |
||
|
17
|
17
36Y-82151-00-00 Fuse (15A-Blue)15A-BL |
36Y-82151-00-00 |
from US $2.98 |
||
|
18
|
18
42X-82151-00-00 Fuse (10A-Bl)10A-BL |
42X-82151-00-00 |
from US $1.56 |
||
|
19
|
19
3LD-82566-90-00 Switch, Side Stand |
3LD-82566-90-00 |
from US $62.80 |
||
| replacement | |||||
|
19
|
19
3LD-82566-91-00 Switch, Side Stand |
3LD-82566-91-00 |
from US $62.80 |
||
|
20
|
20
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
20
|
20
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.36 |
||
|
21
|
21
5KP-81950-00-00 Relay Assy (5Kp-00)5KP-00 |
5KP-81950-00-00 |
from US $112.19 |
||
|
22
|
22
1UY-81950-92-00 Relay Assy (1Uy-92)1UY-92 |
1UY-81950-92-00 |
from US $34.85 |
||
|
23
|
23
5FU-82560-30-00 Thermo Switch Assy |
5FU-82560-30-00 |
from US $33.86 |
||
|
24
|
24
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
25
|
25
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
26
|
26
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
27
|
27
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
28
|
28
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
29
|
29
90464-05188-00 Clamp |
90464-05188-00 |
from US $1.70 |
||
|
30
|
30
90464-20191-00 Clamp |
90464-20191-00 |
from US $1.70 |
||
|
31
|
31
90464-20213-00 Clamp |
90464-20213-00 |
from US $1.70 |
||
|
32
|
32
90464-23041-00 Clamp (4N0) |
90464-23041-00 |
from US $1.70 |
||
| replacement | |||||
|
32
|
32
90464-25267-00 Clamp |
90464-25267-00 |
from US $1.70 |
||
