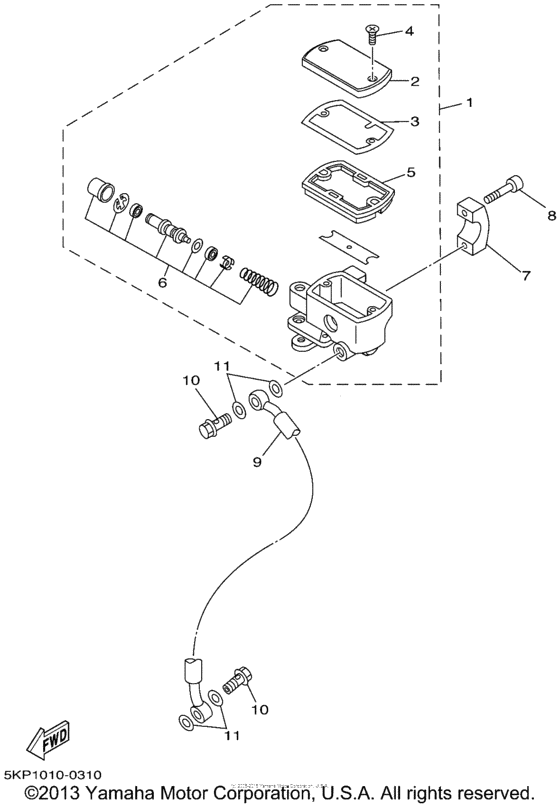

Front master cylinder Diagram Yamaha XVS650 V-Star Custom
- Year
- 2002
- Model code
- 5FBH
- Sales region
- USA
- Базовая модель
- XVS650PC
- Engine Capacity
- 650
- Model
- XVS650 (V-Star Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4TR-25870-01-00 Master Cylinder Sub Assy |
4TR-25870-01-00 |
from US $165.79 |
||
| replacement | |||||
|
1
|
1
3D8-25870-11-00 Master Cylinder Sub Assy |
3D8-25870-11-00 |
from US $165.79 |
||
|
2
|
2
4TR-25852-01-00 Cap, Reservoir |
4TR-25852-01-00 |
from US $42 |
||
|
3
|
3
4BH-25815-00-00 Seal, Piston |
4BH-25815-00-00 |
from US $21.82 |
||
|
4
|
4
4TR-2589H-00-00 Screw |
4TR-2589H-00-00 |
from US $2.55 |
||
|
5
|
5
4BH-25854-02-00 Diaphragm, Reservoir |
4BH-25854-02-00 |
from US $22.81 |
||
|
6
|
6
2KR-W0041-00-00
Cylinder Kit, Master
|
2KR-W0041-00-00 |
— | ||
| replacement | |||||
|
6
|
6
2KR-25807-00-00 Cylinder Kit, Master |
2KR-25807-00-00 |
from US $46.70 |
||
|
7
|
7
4TR-25867-00-00 Bracket, Master Cylinder |
4TR-25867-00-00 |
from US $18.83 |
||
|
8
|
8
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.56 |
||
|
9
|
9
5KP-25872-00-00 Hose, Brake 1 |
5KP-25872-00-00 |
from US $88.35 |
||
|
10
|
10
90401-10172-00 Bolt, Union |
90401-10172-00 |
from US $2.55 |
||
|
11
|
11
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.28 |
||
| replacement | |||||
|
11
|
11
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.28 |
||
