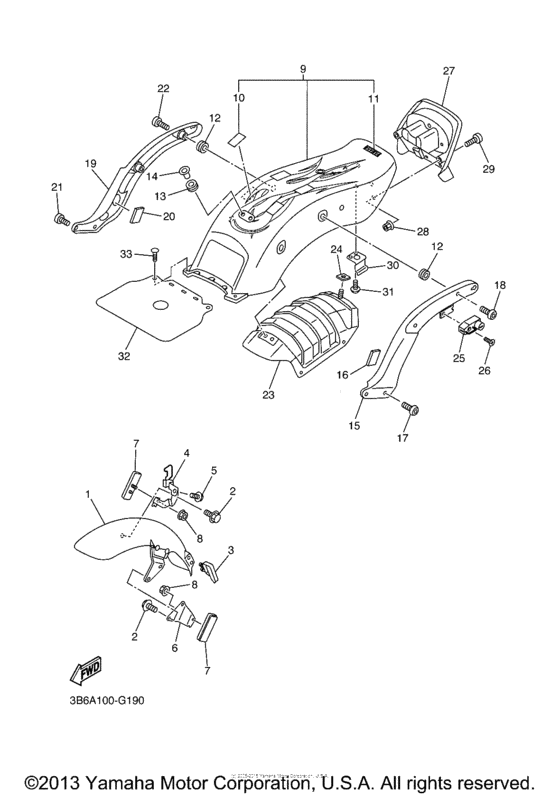

Fender Diagram Yamaha XVS650 V-Star Custom
- Year
- 2008
- Model code
- 3B6A
- Sales region
- USA
- Базовая модель
- XVS65XR
- Engine Capacity
- 650
- Model
- XVS650 (V-Star Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4TR-21510-02-PG Front Fender Compfor Color Deep Red Metallic K DRMK / 0918 |
4TR-21510-02-PG |
US $168.80 |
||
|
2
|
2
95027-08012-00 Bolt, Flange |
95027-08012-00 |
from US $1.56 |
||
|
3
|
3
4VR-21518-00-00 Holder, Cable |
4VR-21518-00-00 |
from US $10.35 |
||
|
4
|
4
5FB-21598-01-00 Holder, Wire 2 |
5FB-21598-01-00 |
US $65.86 |
||
|
5
|
5
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
5
|
5
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
6
|
6
5FB-85112-00-00 Bracket, Reflector 1 |
5FB-85112-00-00 |
US $28.80 |
||
|
7
|
7
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $11.92 |
||
|
8
|
8
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
9
|
9
4TR-Y2161-G2-PH Rear Fender Compfor Color Deep Red Metallic K DRMK / 0918 |
4TR-Y2161-G2-PH |
US $533.11 |
||
|
10
|
10
3SP-21732-00-00 Seal 1 |
3SP-21732-00-00 |
from US $8.93 |
||
|
11
|
11
1D6-2153E-10-00 Emblem, Yamaha |
1D6-2153E-10-00 |
from US $7.65 |
||
| replacements | |||||
|
11
|
11
3WF-2153E-40-00 Emblem, Yamaha |
3WF-2153E-40-00 |
from US $7.51 |
||
|
11
|
11
3WF-2153E-41-00 Emblem, Yamaha |
3WF-2153E-41-00 |
from US $7.51 |
||
|
12
|
12
90480-18418-00 Grommet |
90480-18418-00 |
from US $2.83 |
||
| replacement | |||||
|
12
|
12
90480-18495-00 Grommet(3Ak) |
90480-18495-00 |
from US $2.83 |
||
|
13
|
13
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
13
|
13
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
14
|
14
90387-067N5-00 Collar |
90387-067N5-00 |
from US $4.68 |
||
|
15
|
15
4TR-21613-01-00 Stay, Fender 1 |
4TR-21613-01-00 |
from US $329.22 |
||
|
16
|
16
3SX-2139X-00-00 Damper |
3SX-2139X-00-00 |
from US $2.55 |
||
|
17
|
17
90157-10043-00 Screw, Pan Head |
90157-10043-00 |
from US $4.96 |
||
|
18
|
18
92014-08040-00 Bolt, Button Head |
92014-08040-00 |
from US $2.69 |
||
|
19
|
19
4TR-21614-01-00 Stay, Fender 2 |
4TR-21614-01-00 |
from US $341.26 |
||
|
20
|
20
3SX-2139X-00-00 Damper |
3SX-2139X-00-00 |
from US $2.55 |
||
|
21
|
21
90157-10043-00 Screw, Pan Head |
90157-10043-00 |
from US $4.96 |
||
|
22
|
22
92014-08040-00 Bolt, Button Head |
92014-08040-00 |
from US $2.69 |
||
|
23
|
23
4TR-21643-01-00 Stay, Rear |
4TR-21643-01-00 |
from US $149.33 |
||
|
24
|
24
5FB-24737-00-00 Damper |
5FB-24737-00-00 |
from US $1.84 |
||
|
25
|
25
4R8-21308-01-00 Helmet Hanger Assy |
4R8-21308-01-00 |
from US $46.70 |
||
|
26
|
26
90149-06154-00 Screw |
90149-06154-00 |
from US $1.56 |
||
|
27
|
27
5FB-2162R-00-00 Fender 2 |
5FB-2162R-00-00 |
from US $21.82 |
||
|
28
|
28
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
29
|
29
90154-05011-00 Screw, Binding |
90154-05011-00 |
from US $1.70 |
||
|
30
|
30
4TR-21679-00-00 Holder, Harness |
4TR-21679-00-00 |
from US $4.12 |
||
|
31
|
31
90167-05025-00 Screw, Truss Head Tapping |
90167-05025-00 |
from US $1.28 |
||
| replacement | |||||
|
31
|
31
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
32
|
32
4TR-21629-00-00 Guard, Mud |
4TR-21629-00-00 |
from US $21.04 |
||
|
33
|
33
90269-05039-00 Rivet |
90269-05039-00 |
from US $1.70 |
||
| replacement | |||||
|
33
|
33
90269-05055-00 Rivet |
90269-05055-00 |
from US $1.34 |
||
