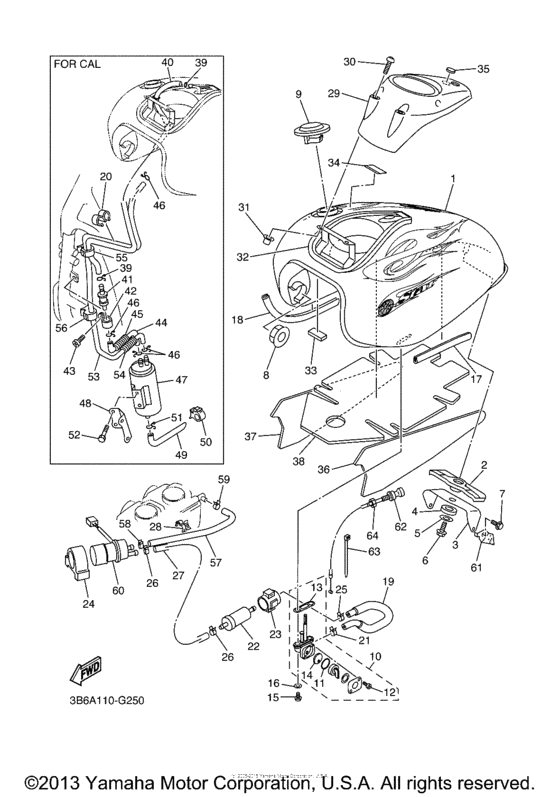

Fuel tank Diagram Yamaha XVS650 V-Star Custom
- Year
- 2008
- Model code
- 3B6A
- Sales region
- USA
- Базовая модель
- XVS65XR
- Engine Capacity
- 650
- Model
- XVS650 (V-Star Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5SC-Y2410-30-X8 Fuel Tank Compfor Color Deep Red Metallic K DRMK / 0918 |
5SC-Y2410-30-X8 |
US $1,152.40 |
||
|
1
|
1
5SC-Y2410-T0-02 Fuel Tank Compfor Color Deep Red Metallic K DRMK / 0918 |
5SC-Y2410-T0-02 |
US $1,016.69 |
||
|
2
|
2
4TR-24182-00-00 Damper, Locating 2 |
4TR-24182-00-00 |
from US $16.72 |
||
|
3
|
3
4TR-2413Y-00-00 Bracket, Tank Fitting |
4TR-2413Y-00-00 |
from US $15.50 |
||
|
4
|
4
4TR-24183-00-00 Damper, Locating 3 |
4TR-24183-00-00 |
from US $5.24 |
||
|
5
|
5
90209-06011-00 Washer |
90209-06011-00 |
from US $3.83 |
||
|
6
|
6
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.42 |
||
|
7
|
7
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
8
|
8
4H7-24181-00-00 Damper, Locating 1 |
4H7-24181-00-00 |
from US $7.93 |
||
|
9
|
9
5BN-24602-01-00
Cap Assy
3B6A X 49 |
5BN-24602-01-00 |
— | ||
| replacement | |||||
|
9
|
9
5BN-24602-10-00 Fuel Cap Assy3B6A X 49 |
5BN-24602-10-00 |
from US $104.86 |
||
|
9
|
9
4NK-24602-11-00 Cap Assy3B6B XC CA |
4NK-24602-11-00 |
from US $106.80 |
||
| replacement | |||||
|
9
|
9
4NK-24602-20-00 Cap Assy3B6B XC CA |
4NK-24602-20-00 |
from US $106.80 |
||
|
10
|
10
21V-24500-11-00 Fuel Cock Assy 1 |
21V-24500-11-00 |
from US $44.50 |
||
| replacement | |||||
|
10
|
10
21V-24500-20-00 Fuel Cock Assy 1 |
21V-24500-20-00 |
from US $52.78 |
||
|
11
|
11
3AJ-24534-01-00 Seal, Cock |
3AJ-24534-01-00 |
from US $1.66 |
||
|
12
|
12
98507-03008-00 Screw, Pan Head |
98507-03008-00 |
from US $2.27 |
||
| replacement | |||||
|
12
|
12
98517-03008-00 Screw, Pan Head |
98517-03008-00 |
from US $2.27 |
||
|
13
|
13
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $1.84 |
||
|
14
|
14
3AC-24523-00-00 Valve Packing |
3AC-24523-00-00 |
from US $6.80 |
||
|
15
|
15
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
16
|
16
902-02051-93-00
Washer, Plate(3Gm)
|
902-02051-93-00 |
— | ||
| replacement | |||||
|
16
|
16
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
17
|
17
1FK-2171L-00-00 Mole, Side Cover 1 |
1FK-2171L-00-00 |
from US $12.18 |
||
|
18
|
18
4BP-24188-00-00 Mold, Fuel Tank |
4BP-24188-00-00 |
from US $9.35 |
||
| replacement | |||||
|
18
|
18
1HX-24188-01-00 Mold, Fuel Tank |
1HX-24188-01-00 |
from US $9.35 |
||
|
19
|
19
4TR-24313-10-00 Pipe 3 |
4TR-24313-10-00 |
US $63.92 |
||
|
20
|
20
90464-09M31-00 Clamp |
90464-09M31-00 |
from US $1.66 |
||
|
21
|
21
90467-10038-00 Clip |
90467-10038-00 |
from US $1.28 |
||
|
22
|
22
1FK-24560-10-00 Filter Assy |
1FK-24560-10-00 |
from US $14.88 |
||
|
23
|
23
1FK-24566-00-00 Bracket, Filter |
1FK-24566-00-00 |
from US $10.06 |
||
|
24
|
24
4EB-24398-00-00 Band 1 |
4EB-24398-00-00 |
from US $16.15 |
||
|
25
|
25
90467-11032-00 Clip |
90467-11032-00 |
from US $1.28 |
||
| replacement | |||||
|
25
|
25
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.28 |
||
|
26
|
26
90467-12053-00 Clip |
90467-12053-00 |
from US $1.28 |
||
| replacement | |||||
|
26
|
26
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.28 |
||
|
27
|
27
4TR-24311-10-00 Pipe, Fuel 1 |
4TR-24311-10-00 |
US $31.84 |
||
|
28
|
28
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.70 |
||
|
29
|
29
4TR-2171A-00-00 Cover, Top |
4TR-2171A-00-00 |
from US $101.82 |
||
|
30
|
30
90149-05299-00 Screw |
90149-05299-00 |
from US $1.56 |
||
|
31
|
31
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
32
|
32
4TR-2414G-00-00 Seal |
4TR-2414G-00-00 |
from US $4.82 |
||
|
33
|
33
3XV-21717-00-00 Damper |
3XV-21717-00-00 |
from US $2.27 |
||
|
34
|
34
5GK-2118K-00-00 Label, Caution |
5GK-2118K-00-00 |
from US $3.40 |
||
|
35
|
35
4TR-2413B-00-00 Emblem |
4TR-2413B-00-00 |
from US $14.73 |
||
|
36
|
36
5SC-2414H-00-00 Damper, Plate 1 |
5SC-2414H-00-00 |
from US $48.77 |
||
|
37
|
37
5SC-2414J-00-00 Damper, Plate 2 |
5SC-2414J-00-00 |
from US $48.77 |
||
|
38
|
38
5SC-2414K-00-00 Damper, Plate 3 |
5SC-2414K-00-00 |
from US $56.37 |
||
|
39
|
39
904-67100-41-00 Clip |
904-67100-41-00 |
from US $1.28 |
||
| replacements | |||||
|
39
|
39
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
39
|
39
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
40
|
40
5BN-24312-10-00 Pipe 2 |
5BN-24312-10-00 |
from US $105.14 |
||
|
41
|
41
5PX-24180-00-00 Roll Over Valve Assy |
5PX-24180-00-00 |
from US $40.20 |
||
|
42
|
42
90461-15139-00 Clamp(4Tr) |
90461-15139-00 |
from US $1.57 |
||
| replacement | |||||
|
42
|
42
904-64150-14-00 Clamp |
904-64150-14-00 |
from US $1.70 |
||
|
43
|
43
98907-05010-00 Screw, Bind |
98907-05010-00 |
from US $1.21 |
||
|
44
|
44
5BN-24314-10-00 Pipe 4 |
5BN-24314-10-00 |
US $41.72 |
||
|
45
|
45
5BN-24327-00-00 Protector, Pipe |
5BN-24327-00-00 |
US $29.16 |
||
|
46
|
46
904-67100-41-00 Clip |
904-67100-41-00 |
from US $1.28 |
||
| replacements | |||||
|
46
|
46
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
46
|
46
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
47
|
47
2JU-24170-00-00 Canister Assy |
2JU-24170-00-00 |
US $360.31 |
||
| replacement | |||||
|
47
|
47
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
48
|
48
5BN-2419F-00-00 Bracket, Canistor |
5BN-2419F-00-00 |
US $61.24 |
||
|
49
|
49
5BN-24315-10-00 Pipe 5 |
5BN-24315-10-00 |
US $23.85 |
||
|
50
|
50
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.70 |
||
|
51
|
51
904-67100-41-00 Clip |
904-67100-41-00 |
from US $1.28 |
||
| replacements | |||||
|
51
|
51
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
51
|
51
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
52
|
52
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
52
|
52
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
53
|
53
5BN-24313-10-00 Pipe 3 |
5BN-24313-10-00 |
US $120.29 |
||
|
54
|
54
5BN-24327-00-00 Protector, Pipe |
5BN-24327-00-00 |
US $29.16 |
||
|
55
|
55
90464-20191-00 Clamp |
90464-20191-00 |
from US $1.70 |
||
|
56
|
56
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.70 |
||
|
57
|
57
4TR-14294-10-00 Hose |
4TR-14294-10-00 |
US $81 |
||
|
58
|
58
90467-12053-00 Clip |
90467-12053-00 |
from US $1.28 |
||
| replacement | |||||
|
58
|
58
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.28 |
||
|
59
|
59
90467-12124-00 Clip |
90467-12124-00 |
from US $1.70 |
||
|
60
|
60
5KS-13907-00-00
Fuel Pump
|
5KS-13907-00-00 |
— | ||
| replacement | |||||
|
60
|
60
5KS-13907-01-00 Fuel Pump |
5KS-13907-01-00 |
from US $205.97 |
||
|
61
|
61
4TR-2637G-00-00 Holder, Wire |
4TR-2637G-00-00 |
from US $9.36 |
||
|
62
|
62
4TR-26331-00-00 Cable, Starter 1 |
4TR-26331-00-00 |
from US $24.79 |
||
|
63
|
63
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
64
|
64
1VJ-26333-00-00 Nut |
1VJ-26333-00-00 |
from US $3.12 |
||
