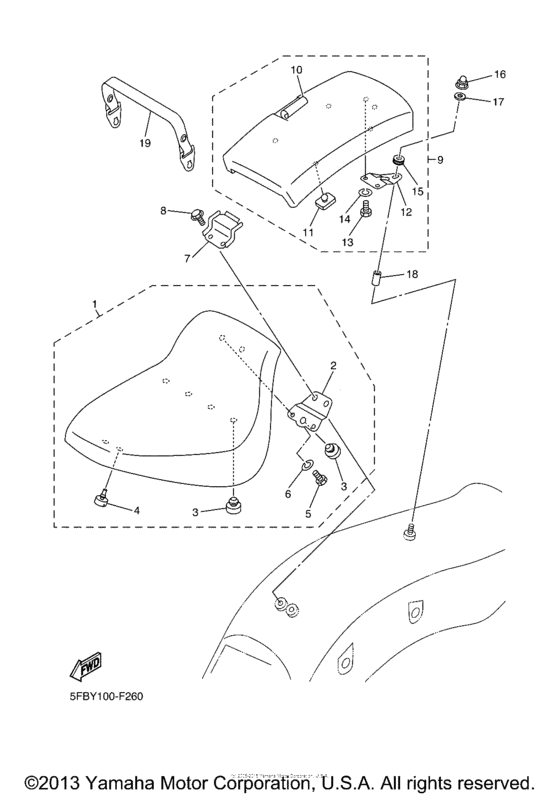

Seat Diagram Yamaha XVS650 V-Star Custom
- Year
- 2008
- Model code
- 3B6A
- Sales region
- USA
- Базовая модель
- XVS65XR
- Engine Capacity
- 650
- Model
- XVS650 (V-Star Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4VR-24710-20-00 Single Seat Assy |
4VR-24710-20-00 |
US $265.14 |
||
|
2
|
2
4TR-2475H-00-00 Bracket, Seat Lever 1 |
4TR-2475H-00-00 |
from US $8.50 |
||
|
3
|
3
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2 |
||
|
4
|
4
35T-24724-00-00 Damper, Seat |
35T-24724-00-00 |
from US $5.24 |
||
|
5
|
5
970-07060-12-00
Bolt
|
970-07060-12-00 |
— | ||
| replacement | |||||
|
5
|
5
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
6
|
6
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
7
|
7
4TR-2475K-00-00 Bracket 3 |
4TR-2475K-00-00 |
from US $9.45 |
||
|
8
|
8
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
9
|
9
4TR-24750-31-00 Tandem Seat Assy |
4TR-24750-31-00 |
from US $224.82 |
||
| replacement | |||||
|
9
|
9
4TR-24750-32-00 |
4TR-24750-32-00 |
US $153.99 |
||
|
10
|
10
4TR-24751-10-00 Cover, Tandem Seat |
4TR-24751-10-00 |
US $65.72 |
||
|
11
|
11
509-24724-00-00 Damper, Seat |
509-24724-00-00 |
from US $5.10 |
||
|
12
|
12
5FB-2475J-01-00 Bracket, Seat Lever 2 |
5FB-2475J-01-00 |
from US $12.75 |
||
|
13
|
13
970-07060-12-00
Bolt
|
970-07060-12-00 |
— | ||
| replacement | |||||
|
13
|
13
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
14
|
14
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
15
|
15
5YS-24742-00-00 Grommet |
5YS-24742-00-00 |
from US $1.65 |
||
|
16
|
16
90176-08001-00 Nut, Cap |
90176-08001-00 |
from US $4.53 |
||
|
17
|
17
90201-08042-00 Washer, Plain |
90201-08042-00 |
from US $2.55 |
||
|
18
|
18
90387-081M9-00 Collar |
90387-081M9-00 |
from US $1.42 |
||
|
19
|
19
4TR-24720-00-00 Seat Band Assy |
4TR-24720-00-00 |
from US $39.38 |
||
| replacement | |||||
|
19
|
19
4TR-24720-01-00 |
4TR-24720-01-00 |
US $51.79 |
||
