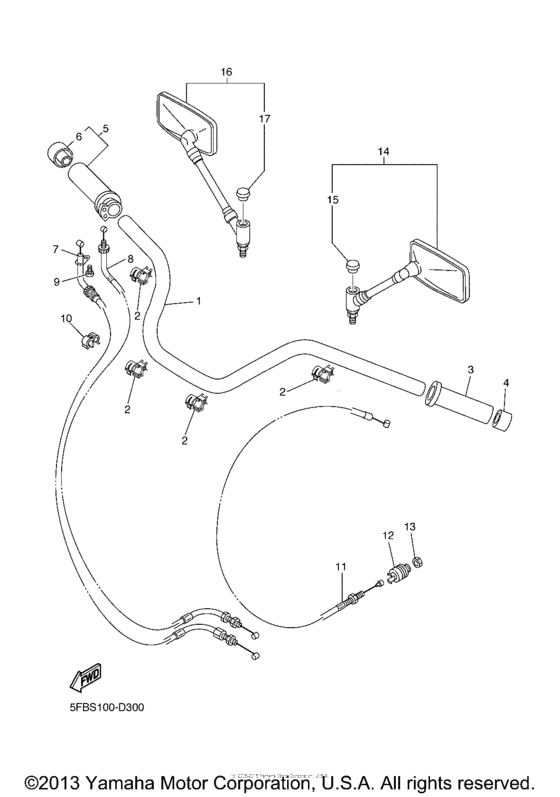

Steering handle & cable Diagram Yamaha XVS650 V-Star Custom
- Year
- 2008
- Model code
- 3B6A
- Sales region
- USA
- Базовая модель
- XVS65XR
- Engine Capacity
- 650
- Model
- XVS650 (V-Star Custom)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4VR-26111-21-00 Handlebar |
4VR-26111-21-00 |
from US $211.38 |
||
|
2
|
2
90464-15192-00 Clamp |
90464-15192-00 |
from US $1.70 |
||
|
3
|
3
4NK-26241-00-00 Grip(Left) |
4NK-26241-00-00 |
from US $35.37 |
||
| replacement | |||||
|
3
|
3
4NK-26241-01-00 |
4NK-26241-01-00 |
from US $39.42 |
||
|
4
|
4
4NK-2628J-00-00 Grip Cap |
4NK-2628J-00-00 |
from US $12.33 |
||
|
5
|
5
4NK-26240-00-00 Grip Assy |
4NK-26240-00-00 |
from US $41.17 |
||
|
6
|
6
4NK-2635J-00-00 Cap 2 |
4NK-2635J-00-00 |
from US $14.88 |
||
|
7
|
7
5KP-26311-10-00 Cable, Throttle 1 |
5KP-26311-10-00 |
from US $39.89 |
||
| replacement | |||||
|
7
|
7
5KP-26311-11-00 Wire, Throttle 1 |
5KP-26311-11-00 |
US $40.54 |
||
|
8
|
8
5KP-26312-10-00 Cable, Throttle 2 |
5KP-26312-10-00 |
from US $40.20 |
||
| replacement | |||||
|
8
|
8
5KP-26312-11-00 Cable, Throttle 2 |
5KP-26312-11-00 |
US $43.09 |
||
|
9
|
9
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
10
|
10
90464-06214-00 Clamp |
90464-06214-00 |
from US $1.70 |
||
|
11
|
11
5KP-26335-00-00 Cable, clutch |
5KP-26335-00-00 |
from US $33.58 |
||
|
12
|
12
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $14.17 |
||
|
13
|
13
953-04087-00-00 Nut(3Bm) |
953-04087-00-00 |
US $1.42 |
||
| replacement | |||||
|
13
|
13
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
14
|
14
4VR-26280-10-00 Rear View Mirror Assy (Left)Rear view mirror assy (left) |
4VR-26280-10-00 |
from US $97.13 |
||
| replacement | |||||
|
14
|
14
4VR-26280-12-00 Rear View Mirror Assy (Left) |
4VR-26280-12-00 |
US $175.95 |
||
|
15
|
15
5PS-26133-10-00 Cap |
5PS-26133-10-00 |
from US $4.53 |
||
| replacement | |||||
|
15
|
15
5PS-26133-20-00 Cap |
5PS-26133-20-00 |
from US $4.53 |
||
|
16
|
16
4VR-26290-10-00 Rear View Mirror Assy (Right) |
4VR-26290-10-00 |
from US $97.13 |
||
| replacement | |||||
|
16
|
16
4VR-26290-11-00 Rear View Mirror Assy (Right) |
4VR-26290-11-00 |
US $171.45 |
||
|
17
|
17
5PS-26133-10-00 Cap |
5PS-26133-10-00 |
from US $4.53 |
||
| replacement | |||||
|
17
|
17
5PS-26133-20-00 Cap |
5PS-26133-20-00 |
from US $4.53 |
||
