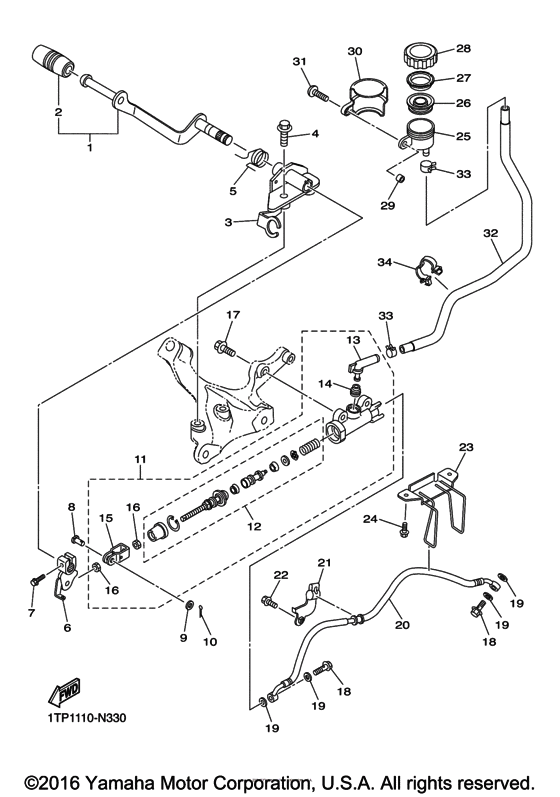

Rear master cylinder Diagram Yamaha XVS950 Bolt R-Spec
- Year
- 2017
- Model code
- BS52
- Sales region
- United States (California)
- Базовая модель
- XVS95CHCS
- Engine Capacity
- 950
- Model
- XVS950CUSP (Bolt R-Spec)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1TP-27200-00-00 Pedal, Brake |
1TP-27200-00-00 |
from US $83.31 |
||
|
2
|
2
5VN-18113-00-00 Cover, Shift Pedal |
5VN-18113-00-00 |
from US $9.98 |
||
|
3
|
3
1TP-27243-00-00 Boss, Brake Pedal |
1TP-27243-00-00 |
from US $44.35 |
||
|
4
|
4
95027-08035-00 Bolt, Flange |
95027-08035-00 |
from US $1.56 |
||
|
5
|
5
1TP-27216-00-00 Spring, Return |
1TP-27216-00-00 |
from US $3.68 |
||
|
6
|
6
1TP-27262-00-00 Lever |
1TP-27262-00-00 |
from US $30.32 |
||
|
7
|
7
97002-06020-00 Bolt |
97002-06020-00 |
from US $0.99 |
||
| replacement | |||||
|
7
|
7
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
8
|
8
90240-08124-00 Pin, Clevis |
90240-08124-00 |
from US $1.84 |
||
|
9
|
9
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
10
|
10
914-01200-12-00
Pin, Cotter
|
914-01200-12-00 |
— | ||
| replacements | |||||
|
10
|
10
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
10
|
10
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
11
|
11
1TP-2583V-00-00 Rear Master Cylinder Assy |
1TP-2583V-00-00 |
from US $145.07 |
||
|
12
|
12
1TP-25808-00-00 Cylinder Kit, Master |
1TP-25808-00-00 |
from US $33.58 |
||
|
13
|
13
4BP-2582A-00-00 Joint |
4BP-2582A-00-00 |
from US $10.06 |
||
|
14
|
14
4BP-2585F-01-00 O-Ring |
4BP-2585F-01-00 |
from US $6.24 |
||
|
15
|
15
4BP-27222-02-00 Joint |
4BP-27222-02-00 |
from US $9.92 |
||
|
16
|
16
90170-08010-00 Nut |
90170-08010-00 |
from US $1.56 |
||
|
17
|
17
95027-08030-00 Bolt, Flange |
95027-08030-00 |
from US $1.66 |
||
|
18
|
18
90401-10020-00 Bolt, Union |
90401-10020-00 |
from US $2.69 |
||
|
19
|
19
90430-10005-00 Gasket |
90430-10005-00 |
from US $1.66 |
||
|
20
|
20
1TP-2581J-01-00 Hose, Brake 4 |
1TP-2581J-01-00 |
from US $41.45 |
||
|
21
|
21
1TP-2588F-00-00 Holder, Brake Hose 5 |
1TP-2588F-00-00 |
from US $7.65 |
||
|
22
|
22
95022-06016-00 Bolt, Flange |
95022-06016-00 |
from US $1.66 |
||
|
23
|
23
1TP-2587A-00-00 Holder, Brake Hose |
1TP-2587A-00-00 |
from US $19.13 |
||
|
24
|
24
95022-06016-00 Bolt, Flange |
95022-06016-00 |
from US $1.66 |
||
|
25
|
25
31A-25894-10-00 Tank, Reservoir |
31A-25894-10-00 |
from US $7.49 |
||
|
26
|
26
360-25854-01-00 Gasket, Diaphragm |
360-25854-01-00 |
from US $17.20 |
||
|
27
|
27
2GU-25855-00-00 Bush,diaphragm |
2GU-25855-00-00 |
from US $11.46 |
||
|
28
|
28
2KF-25852-50-00 Cap, Reservoir |
2KF-25852-50-00 |
from US $8.05 |
||
|
29
|
29
903-87060-72-00 Collar |
903-87060-72-00 |
from US $3.12 |
||
|
30
|
30
4NK-25888-00-00 Reservoir Tank Cover (Black) |
4NK-25888-00-00 |
from US $41.17 |
||
|
31
|
31
90111-06028-00 Bolt, Button Head |
90111-06028-00 |
from US $1.56 |
||
| replacement | |||||
|
31
|
31
92014-06020-00 Bolt, Button Head |
92014-06020-00 |
from US $1.66 |
||
|
32
|
32
1TP-25895-00-00 Hose, Reservoir |
1TP-25895-00-00 |
from US $22.53 |
||
|
33
|
33
90467-14057-00 Clip |
90467-14057-00 |
from US $1.28 |
||
|
34
|
34
90464-23239-00 Clamp |
90464-23239-00 |
from US $1.84 |
||
