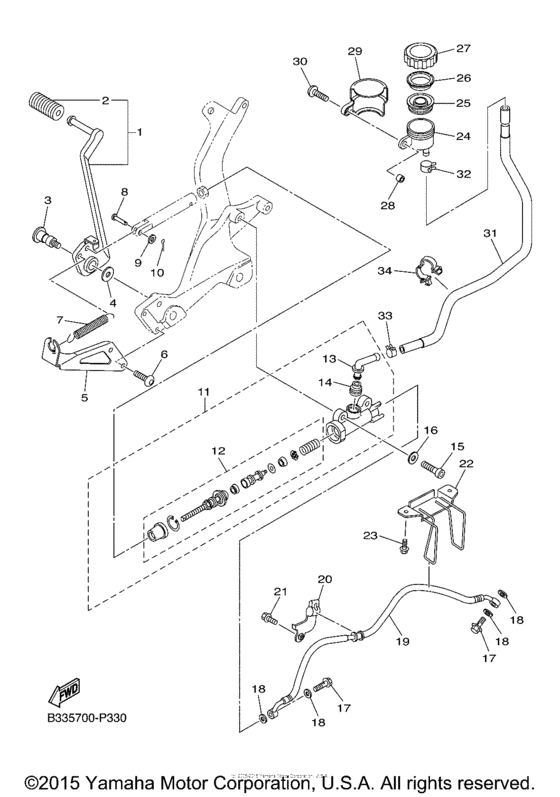

Rear master cylinder Diagram Yamaha XVS950 Bolt C-Spec
- Year
- 2015
- Model code
- B331
- Sales region
- USA
- Базовая модель
- XVS95CRFS
- Engine Capacity
- 950
- Model
- XVS950CR (Bolt C-Spec)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
B33-27200-00-00 Pedal, Brake |
B33-27200-00-00 |
from US $46.57 |
||
|
2
|
2
5EB-18113-00-00 Cover, Pedal |
5EB-18113-00-00 |
from US $4.19 |
||
|
3
|
3
5XT-27434-00-00 Bolt |
5XT-27434-00-00 |
from US $6.13 |
||
| replacement | |||||
|
3
|
3
5XT-27434-10-00 Bolt |
5XT-27434-10-00 |
from US $5.14 |
||
|
4
|
4
90201-08366-00 Washer, Plate |
90201-08366-00 |
from US $1.80 |
||
| replacement | |||||
|
4
|
4
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $1.69 |
||
|
5
|
5
B33-27263-00-00 Bracket 1 |
B33-27263-00-00 |
from US $9.57 |
||
|
6
|
6
92017-06010-00 Bolt, Button Head |
92017-06010-00 |
from US $1.50 |
||
|
7
|
7
905-06160-09-00 Spring, Tension |
905-06160-09-00 |
from US $2.84 |
||
|
8
|
8
91702-06018-00 Pin |
91702-06018-00 |
from US $1.50 |
||
| replacement | |||||
|
8
|
8
91701-06018-00 Pin |
91701-06018-00 |
from US $1.50 |
||
|
9
|
9
929-02062-00-00
Washer, Plain
|
929-02062-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $0.90 |
||
|
10
|
10
91401-20015-00 Pin. Cotter |
91401-20015-00 |
US $0.98 |
||
| replacements | |||||
|
10
|
10
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $0.98 |
||
|
10
|
10
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.50 |
||
|
11
|
11
B33-2583V-00-00 Rear Master Cylinder Assy |
B33-2583V-00-00 |
from US $85.90 |
||
|
12
|
12
1TP-25808-00-00 Cylinder Kit, Master |
1TP-25808-00-00 |
from US $33.06 |
||
|
13
|
13
B33-2582A-00-00 Joint |
B33-2582A-00-00 |
from US $6.58 |
||
|
14
|
14
4BP-2585F-01-00 O-Ring |
4BP-2585F-01-00 |
from US $5.24 |
||
|
15
|
15
91312-08025-00 Bolt |
91312-08025-00 |
from US $0.90 |
||
| replacement | |||||
|
15
|
15
913-17080-25-00 Bolt |
913-17080-25-00 |
from US $0.90 |
||
|
16
|
16
90201-082H0-00 Washer, Plate |
90201-082H0-00 |
from US $0.59 |
||
|
17
|
17
90401-10020-00 Bolt, Union |
90401-10020-00 |
from US $2.39 |
||
|
18
|
18
90430-10005-00 Gasket |
90430-10005-00 |
from US $1.50 |
||
|
19
|
19
1TP-2581J-01-00 Hose, Brake 4 |
1TP-2581J-01-00 |
from US $40.90 |
||
|
20
|
20
1TP-2588F-00-00 Holder, Brake Hose 5 |
1TP-2588F-00-00 |
from US $7.18 |
||
|
21
|
21
95022-06016-00 Bolt, Flange |
95022-06016-00 |
from US $1.50 |
||
|
22
|
22
1TP-2587A-00-00 Holder, Brake Hose |
1TP-2587A-00-00 |
from US $18.85 |
||
|
23
|
23
95022-06016-00 Bolt, Flange |
95022-06016-00 |
from US $1.50 |
||
|
24
|
24
31A-25894-10-00 Tank, Reservoir |
31A-25894-10-00 |
from US $6.43 |
||
|
25
|
25
360-25854-01-00 Gasket, Diaphragm |
360-25854-01-00 |
from US $15.26 |
||
|
26
|
26
2GU-25855-00-00 Bush,diaphragm |
2GU-25855-00-00 |
from US $16.16 |
||
|
27
|
27
2KF-25852-50-00 Cap, Reservoir |
2KF-25852-50-00 |
from US $6.73 |
||
|
28
|
28
903-87060-72-00 Collar |
903-87060-72-00 |
from US $2.84 |
||
|
29
|
29
4NK-25888-00-00 Reservoir Tank Cover (Black) |
4NK-25888-00-00 |
from US $40.61 |
||
|
30
|
30
90111-06028-00 Bolt, Button Head |
90111-06028-00 |
from US $1.50 |
||
| replacement | |||||
|
30
|
30
92014-06020-00 Bolt, Button Head |
92014-06020-00 |
from US $1.50 |
||
|
31
|
31
B33-25895-00-00 Hose, Reservoir |
B33-25895-00-00 |
from US $34.71 |
||
|
32
|
32
90467-14057-00 Clip |
90467-14057-00 |
from US $1.13 |
||
|
33
|
33
90467-12191-00 Clip |
90467-12191-00 |
from US $1.13 |
||
| replacement | |||||
|
33
|
33
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.13 |
||
|
34
|
34
90464-23239-00 Clamp |
90464-23239-00 |
from US $1.53 |
||
