Seat Diagram Yamaha XVS950 Bolt C-Spec
- Year
- 2016
- Colour
- Desert Bronze
- Model code
- B33B
- Sales region
- USA
- Базовая модель
- XVS95CRG
- Engine Capacity
- 950
- Color Variant
- A
- Model
- XVS950CR (Bolt C-Spec)
Difficulties in parts search?
Difficulties in parts search?

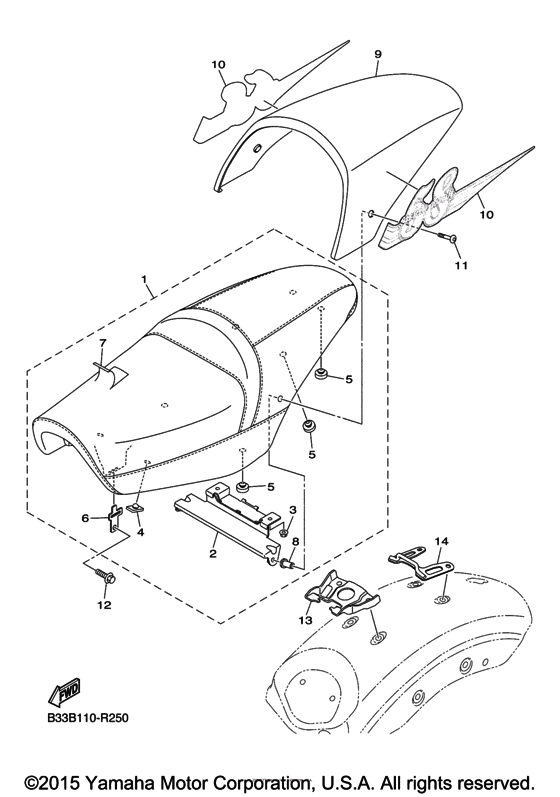

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
B33-24730-00-00 Double Seat Assy |
B33-24730-00-00 |
US $451.97 |
||
| replacements | |||||
|
1
|
1
B33-24730-02-00 Double Seat Assy |
B33-24730-02-00 |
US $451.97 |
||
|
1
|
1
B33-24730-03-00 |
B33-24730-03-00 |
US $470.90 |
||
|
2
|
2
B33-2475J-00-00 Bracket, Seat Lever 2 |
B33-2475J-00-00 |
US $75.37 |
||
|
3
|
3
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.52 |
||
| replacement | |||||
|
3
|
3
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
4
|
4
509-24724-00-00 Damper, Seat |
509-24724-00-00 |
from US $5.68 |
||
|
5
|
5
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $3.05 |
||
|
6
|
6
1TP-24718-00-00 Bracket, Seat |
1TP-24718-00-00 |
from US $3.12 |
||
|
7
|
7
B33-2470F-00-00 Seat Cover Comp |
B33-2470F-00-00 |
US $180 |
||
|
8
|
8
2PN-2471N-00-00 Collar 1 |
2PN-2471N-00-00 |
US $13 |
||
|
9
|
9
B33-24731-00-P3 Cover, SeatUse for Color VERY DARK ORANGE METALLIC 1 ( VDOM1 / 0858 ) |
B33-24731-00-P3 |
US $188.50 |
||
|
10
|
10
B33-2477U-30-00 Graphic Set 1 |
B33-2477U-30-00 |
US $94.91 |
||
|
11
|
11
2PN-24717-00-00 Bolt, Seat Fitting |
2PN-24717-00-00 |
US $10.51 |
||
|
12
|
12
950-22080-14-00 Bolt, Flange |
950-22080-14-00 |
from US $1.07 |
||
|
13
|
13
B33-2475H-00-00 Bracket, Seat Lever 1 |
B33-2475H-00-00 |
from US $21.82 |
||
|
14
|
14
B33-2475R-00-00 Bracket 6 |
B33-2475R-00-00 |
from US $24.94 |
||
