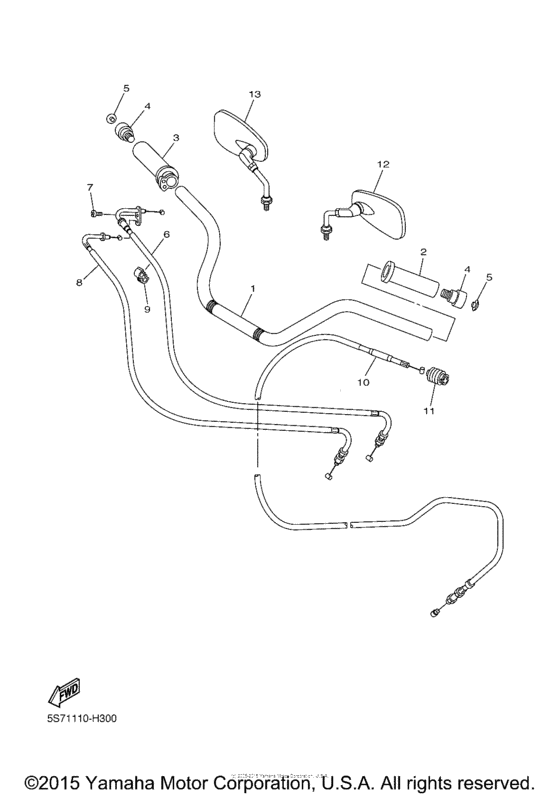

Steering handle & cable Diagram Yamaha XVS950 V-Star
- Year
- 2015
- Model code
- 5S7L
- Sales region
- USA
- Базовая модель
- XVS95FCO
- Engine Capacity
- 950
- Model
- XVS950A (V-Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5S7-26111-00-00 Handlebar |
5S7-26111-00-00 |
from US $216.61 |
||
|
2
|
2
4NK-26241-00-00
Grip(Left)
|
4NK-26241-00-00 |
— | ||
| replacement | |||||
|
2
|
2
4NK-26241-01-00 Grip(Left) |
4NK-26241-01-00 |
from US $39.42 |
||
|
3
|
3
4XY-26240-00-00 Grip Assy |
4XY-26240-00-00 |
from US $53.51 |
||
|
4
|
4
5EL-26246-00-00 End, Grip |
5EL-26246-00-00 |
from US $49.52 |
||
|
5
|
5
90338-10164-00 Plug |
90338-10164-00 |
from US $3.89 |
||
|
6
|
6
5S7-26311-00-00 Cable, Throttle 1 |
5S7-26311-00-00 |
from US $40.48 |
||
|
7
|
7
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
8
|
8
5S7-26312-00-00 Cable, Throttle 2 |
5S7-26312-00-00 |
from US $36.61 |
||
|
9
|
9
90464-06214-00 Clamp |
90464-06214-00 |
from US $1.81 |
||
|
10
|
10
5S7-26335-00-00 Cable, clutch |
5S7-26335-00-00 |
from US $56.02 |
||
|
11
|
11
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
12
|
12
4XY-26280-10-00 Rear View Mirror Assy (Left) |
4XY-26280-10-00 |
from US $66.32 |
||
|
13
|
13
4XY-26290-10-00 Rear View Mirror Assy (Right) |
4XY-26290-10-00 |
from US $66.32 |
||
