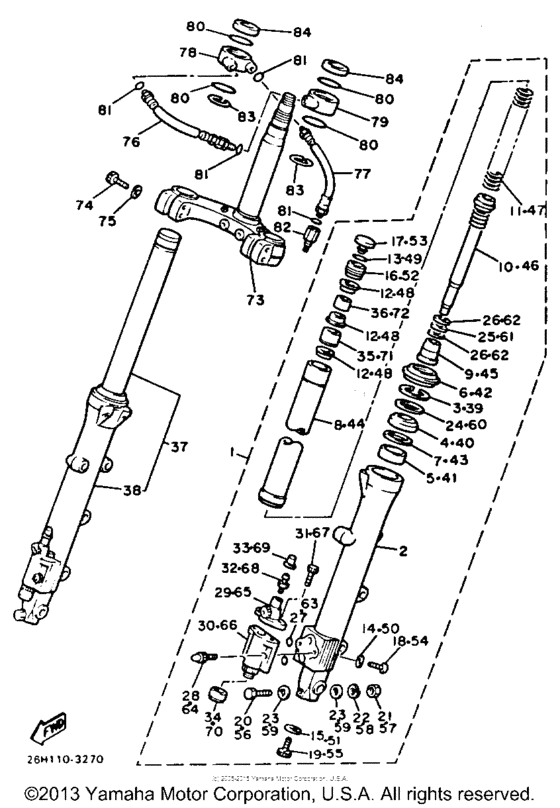

Front fork Diagram Yamaha XVZ1200 Venture
- Year
- 1983
- Sales region
- USA
- Engine Capacity
- 1200
- Model
- XVZ1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41R-23102-00-00
Front Fork Assembly (L.h) (26H-
26H- |
41R-23102-00-00 |
— | ||
|
2
|
2
26H-23126-00-00
Tube, Outer 1
|
26H-23126-00-00 |
— | ||
|
3
|
3
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.99 |
||
|
4
|
4
26H-23145-00-00 Oil Seal |
26H-23145-00-00 |
from US $33.01 |
||
| replacement | |||||
|
4
|
4
1NL-23145-00-00 Oil Seal |
1NL-23145-00-00 |
from US $31.76 |
||
|
5
|
5
3JJ-23125-00-00 Metal, Slide 1 |
3JJ-23125-00-00 |
from US $30.74 |
||
|
6
|
6
26H-23144-00-00 Seal, Dust |
26H-23144-00-00 |
from US $28.34 |
||
|
7
|
7
26H-23149-00-00 Washer, Spring Upper |
26H-23149-00-00 |
from US $13.60 |
||
|
8
|
8
26H-23110-00-00
Inner Tube Comp. 1
|
26H-23110-00-00 |
— | ||
|
9
|
9
26H-23173-00-00
Spindle, Taper
|
26H-23173-00-00 |
— | ||
|
10
|
10
26H-23170-00-00
Cylinder Comp., Front Fork
|
26H-23170-00-00 |
— | ||
|
11
|
11
26H-23141-00-00
Spring, Front Fork
|
26H-23141-00-00 |
— | ||
|
12
|
12
1W4-23142-L0-00
Seat, Spring Upper
|
1W4-23142-L0-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
26H-23147-00-00 O-Ring |
26H-23147-00-00 |
from US $5.81 |
||
|
14
|
14
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
15
|
15
2K8-23158-L0-00 Gasket |
2K8-23158-L0-00 |
from US $14.29 |
||
|
16
|
16
26H-23111-00-00 Bolt, Cap |
26H-23111-00-00 |
US $88 |
||
|
17
|
17
26H-23168-00-00 Cap, Front Fork |
26H-23168-00-00 |
from US $11.76 |
||
|
18
|
18
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
18
|
18
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
18
|
18
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
19
|
19
3R4-23181-L0-00 Bolt, Hexagon Socket Head |
3R4-23181-L0-00 |
from US $8.35 |
||
|
20
|
20
4U8-23356-10-00 Bolt |
4U8-23356-10-00 |
from US $2.41 |
||
| replacement | |||||
|
20
|
20
97017-08060-00 Bolt |
97017-08060-00 |
from US $2.41 |
||
|
21
|
21
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
21
|
21
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
22
|
22
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
23
|
23
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
24
|
24
26H-23146-00-00
Washer, Oil Seal
|
26H-23146-00-00 |
— | ||
|
25
|
25
26H-2319L-00-00 Washer |
26H-2319L-00-00 |
US $7.92 |
||
|
26
|
26
26H-2319M-00-00 Spring, Valve |
26H-2319M-00-00 |
from US $5.65 |
||
|
27
|
27
22N-23147-00-00 O-Ring |
22N-23147-00-00 |
from US $9.49 |
||
|
28
|
28
22N-23346-00-00 Bolt, Hexagon Socket Head |
22N-23346-00-00 |
from US $1.42 |
||
| replacement | |||||
|
28
|
28
91314-06016-00 Bolt, Hexagon Socket Head |
91314-06016-00 |
from US $1.42 |
||
|
29
|
29
26H-2319F-00-00
Brake Plunger Assembly 1
|
26H-2319F-00-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
26H-2319E-00-00
Damper Piston Assembly
|
26H-2319E-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
22N-23356-00-00 Bolt |
22N-23356-00-00 |
from US $4.11 |
||
| replacements | |||||
|
31
|
31
913-14050-12-00 Bolt, Socket |
913-14050-12-00 |
from US $0.90 |
||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
1TX-2319V-00-00
Breather, Air (26H-2319V-00-0
26H-2319V-00-0 |
1TX-2319V-00-00 |
— | ||
| replacement | |||||
|
32
|
32
999-99999-99-00
Not Available
26H-2319V-00-0 |
999-99999-99-00 |
— | ||
|
33
|
33
26H-2319W-00-00
Cap
|
26H-2319W-00-00 |
— | ||
|
34
|
34
22N-2319U-00-00
Cap
|
22N-2319U-00-00 |
— | ||
| replacement | |||||
|
34
|
34
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
35
|
35
26H-23118-00-00
Spacer
|
26H-23118-00-00 |
— | ||
|
36
|
36
26H-2316E-00-00
Spacer
|
26H-2316E-00-00 |
— | ||
|
37
|
37
41R-23103-00-00
Front Fork Assembly (R.h) (26H-
26H- |
41R-23103-00-00 |
— | ||
|
38
|
38
26H-23136-00-00
Tube, Outer 2
|
26H-23136-00-00 |
— | ||
|
39
|
39
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.99 |
||
|
40
|
40
26H-23145-00-00 Oil Seal |
26H-23145-00-00 |
from US $33.01 |
||
| replacement | |||||
|
40
|
40
1NL-23145-00-00 Oil Seal |
1NL-23145-00-00 |
from US $31.76 |
||
|
41
|
41
3JJ-23125-00-00 Metal, Slide 1 |
3JJ-23125-00-00 |
from US $30.74 |
||
|
42
|
42
26H-23144-00-00 Seal, Dust |
26H-23144-00-00 |
from US $28.34 |
||
|
43
|
43
26H-23149-00-00 Washer, Spring Upper |
26H-23149-00-00 |
from US $13.60 |
||
|
44
|
44
26H-23110-00-00
Inner Tube Comp. 1
|
26H-23110-00-00 |
— | ||
|
45
|
45
26H-23173-00-00
Spindle, Taper
|
26H-23173-00-00 |
— | ||
|
46
|
46
26H-23170-00-00
Cylinder Comp., Front Fork
|
26H-23170-00-00 |
— | ||
|
47
|
47
26H-23141-00-00
Spring, Front Fork
|
26H-23141-00-00 |
— | ||
|
48
|
48
1W4-23142-L0-00
Seat, Spring Upper
|
1W4-23142-L0-00 |
— | ||
| replacement | |||||
|
48
|
48
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
49
|
49
26H-23147-00-00 O-Ring |
26H-23147-00-00 |
from US $5.81 |
||
|
50
|
50
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
51
|
51
2K8-23158-L0-00 Gasket |
2K8-23158-L0-00 |
from US $14.29 |
||
|
52
|
52
26H-23111-00-00 Bolt, Cap |
26H-23111-00-00 |
US $88 |
||
|
53
|
53
26H-23168-00-00 Cap, Front Fork |
26H-23168-00-00 |
from US $11.76 |
||
|
54
|
54
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
54
|
54
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
54
|
54
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
55
|
55
3R4-23181-L0-00 Bolt, Hexagon Socket Head |
3R4-23181-L0-00 |
from US $8.35 |
||
|
56
|
56
4U8-23356-10-00 Bolt |
4U8-23356-10-00 |
from US $2.41 |
||
| replacement | |||||
|
56
|
56
97017-08060-00 Bolt |
97017-08060-00 |
from US $2.41 |
||
|
57
|
57
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
57
|
57
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
58
|
58
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
59
|
59
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
59
|
59
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
60
|
60
26H-23146-00-00
Washer, Oil Seal
|
26H-23146-00-00 |
— | ||
|
61
|
61
26H-2319L-00-00 Washer |
26H-2319L-00-00 |
US $7.92 |
||
|
62
|
62
26H-2319M-00-00 Spring, Valve |
26H-2319M-00-00 |
from US $5.65 |
||
|
63
|
63
22N-23147-00-00 O-Ring |
22N-23147-00-00 |
from US $9.49 |
||
|
64
|
64
22N-23346-00-00 Bolt, Hexagon Socket Head |
22N-23346-00-00 |
from US $1.42 |
||
| replacement | |||||
|
64
|
64
91314-06016-00 Bolt, Hexagon Socket Head |
91314-06016-00 |
from US $1.42 |
||
|
65
|
65
26H-2319F-00-00
Brake Plunger Assembly 1
|
26H-2319F-00-00 |
— | ||
| replacement | |||||
|
65
|
65
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
66
|
66
26H-2319E-00-00
Damper Piston Assembly
|
26H-2319E-00-00 |
— | ||
| replacement | |||||
|
66
|
66
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
67
|
67
22N-23356-00-00 Bolt |
22N-23356-00-00 |
from US $4.11 |
||
| replacements | |||||
|
67
|
67
913-14050-12-00 Bolt, Socket |
913-14050-12-00 |
from US $0.90 |
||
|
67
|
67
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
68
|
68
1TX-2319V-00-00
Breather, Air (26H-2319V-00-0
26H-2319V-00-0 |
1TX-2319V-00-00 |
— | ||
| replacement | |||||
|
68
|
68
999-99999-99-00
Not Available
26H-2319V-00-0 |
999-99999-99-00 |
— | ||
|
69
|
69
26H-2319W-00-00
Cap
|
26H-2319W-00-00 |
— | ||
|
70
|
70
22N-2319U-00-00
Cap
|
22N-2319U-00-00 |
— | ||
| replacement | |||||
|
70
|
70
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
71
|
71
26H-23118-00-00
Spacer
|
26H-23118-00-00 |
— | ||
|
72
|
72
26H-2316E-00-00
Spacer
|
26H-2316E-00-00 |
— | ||
|
73
|
73
2WR-23340-01-00
Under Bracket Comp
|
2WR-23340-01-00 |
— | ||
| replacement | |||||
|
73
|
73
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
74
|
74
91311-08035-00 Bolt, Hexagon Socket Head |
91311-08035-00 |
from US $3.26 |
||
| replacement | |||||
|
74
|
74
91314-08035-00 Bolt, Hexagon Socket Head |
91314-08035-00 |
from US $3.60 |
||
|
75
|
75
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
76
|
76
23Y-H3936-00-00 Band, Switch Cord26H-2318F-00-00 |
23Y-H3936-00-00 |
from US $0.29 |
||
| replacement | |||||
|
76
|
76
25G-83936-01-00 Band, Switch Cord26H-2318F-00-00 |
25G-83936-01-00 |
from US $1.56 |
||
|
77
|
77
26H-2318K-00-00
Hose, Air 2
|
26H-2318K-00-00 |
— | ||
|
78
|
78
26H-2319A-00-00
Joint, Air 2
|
26H-2319A-00-00 |
— | ||
|
79
|
79
26H-2318A-00-00
Joint, Air 1
|
26H-2318A-00-00 |
— | ||
| replacement | |||||
|
79
|
79
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
80
|
80
26H-23188-00-00 O-Ring |
26H-23188-00-00 |
from US $10.62 |
||
|
81
|
81
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
82
|
82
26H-23190-00-00
Air Valve Comp
|
26H-23190-00-00 |
— | ||
| replacement | |||||
|
82
|
82
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
83
|
83
26H-23153-00-00
Ring, Snap
|
26H-23153-00-00 |
— | ||
|
84
|
84
26H-23163-00-00
Gasket
|
26H-23163-00-00 |
— | ||
