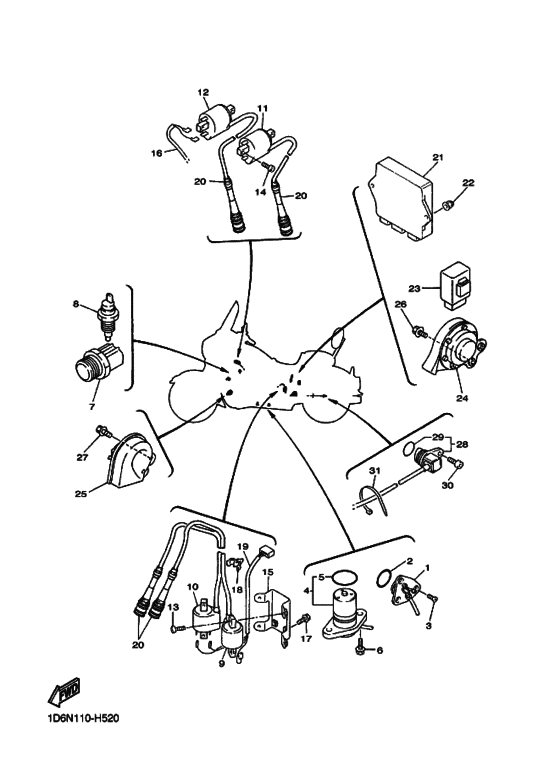

Electrical 2 Diagram Yamaha XVZ1300 Royal Star Tour Deluxe S
- Year
- 2009
- Colour
- Dark Bluish Gray Metallic 8 (DBNM8; 0919)
- Model code
- 1D6U
- Sales region
- Europe (010)
- Engine Capacity
- 1300
- Color Variant
- A
- Model
- XVZ1300CT (Royal Star Midnight Tour Deluxe/ Royal Star Tour Deluxe S)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1D6-82540-00-00 Neutral Switch Assy |
1D6-82540-00-00 |
US $60.91 |
||
|
2
|
2
93210-29196-00 O-Ring (371) |
93210-29196-00 |
from US $1.81 |
||
|
3
|
3
901-49053-21-00
Screw
|
901-49053-21-00 |
— | ||
| replacement | |||||
|
3
|
3
90149-05245-00 Screw(3Hx) |
90149-05245-00 |
from US $2.69 |
||
|
4
|
4
4XY-85720-00-00 Oil Level Gauge Assy |
4XY-85720-00-00 |
from US $164.41 |
||
|
5
|
5
4XV-8A8E0-00-00 O-Ring |
4XV-8A8E0-00-00 |
from US $11.19 |
||
|
6
|
6
950-27060-16-00
Bolt, Flange
|
950-27060-16-00 |
— | ||
| replacement | |||||
|
6
|
6
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.64 |
||
|
7
|
7
5EB-82560-00-00 Thermo Switch Assy |
5EB-82560-00-00 |
from US $47.80 |
||
|
8
|
8
3YX-82560-00-00 Thermo Switch Assy |
3YX-82560-00-00 |
from US $78.34 |
||
|
9
|
9
1D6-82310-00-00 Ignition Coil Assy |
1D6-82310-00-00 |
US $118.04 |
||
|
10
|
10
1D6-82310-10-00 Ignition Coil Assy |
1D6-82310-10-00 |
US $195.50 |
||
|
11
|
11
4XY-82320-10-00 Ignition Coil Assy |
4XY-82320-10-00 |
from US $103.34 |
||
|
12
|
12
4XY-82320-00-00 Ignition Coil Assy |
4XY-82320-00-00 |
from US $103.34 |
||
|
13
|
13
91317-05016-00 Bolt |
91317-05016-00 |
from US $1.22 |
||
|
14
|
14
97007-05016-00 Bolt, Hex. Head |
97007-05016-00 |
from US $2.41 |
||
| replacement | |||||
|
14
|
14
97017-05016-00 Bolt, Hex. Head |
97017-05016-00 |
from US $2.41 |
||
|
15
|
15
4NK-82316-00-00 Bracket, Ignition Coil |
4NK-82316-00-00 |
from US $26.64 |
||
|
16
|
16
1D6-82309-00-00 Wire, Sub Lead |
1D6-82309-00-00 |
US $14.26 |
||
|
17
|
17
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
17
|
17
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
18
|
18
90464-09130-00 Clamp |
90464-09130-00 |
from US $1.98 |
||
|
19
|
19
1D6-82509-00-00 Wire, Sub Lead |
1D6-82509-00-00 |
US $18.94 |
||
|
20
|
20
4XY-82370-00-00 Plug Cap Assy |
4XY-82370-00-00 |
from US $31.74 |
||
|
21
|
21
4XY-82305-00-00 Ignitor Unit Assy |
4XY-82305-00-00 |
from US $720.72 |
||
|
22
|
22
90176-06065-00 Nut, Crown |
90176-06065-00 |
from US $1.33 |
||
|
23
|
23
4NK-83350-00-00 Flasher Relay Assy |
4NK-83350-00-00 |
from US $124.48 |
||
| replacement | |||||
|
23
|
23
4NK-83350-01-00 |
4NK-83350-01-00 |
US $101.11 |
||
|
24
|
24
4NK-83371-00-00 Horn |
4NK-83371-00-00 |
from US $116.33 |
||
|
25
|
25
4XY-83371-00-00 Horn |
4XY-83371-00-00 |
from US $77.92 |
||
|
26
|
26
90119-06217-00 Bolt, With Washer |
90119-06217-00 |
from US $2.08 |
||
|
27
|
27
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
27
|
27
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
28
|
28
4NK-83755-01-00 Sensor, Speed |
4NK-83755-01-00 |
from US $180.99 |
||
|
29
|
29
4NK-85075-00-00 O-Ring |
4NK-85075-00-00 |
from US $7.37 |
||
|
30
|
30
90109-081F0-00 Bolt |
90109-081F0-00 |
from US $2.27 |
||
| replacements | |||||
|
30
|
30
90109-08789-00 Bolt (34L) |
90109-08789-00 |
from US $2.27 |
||
|
30
|
30
901-11080-53-00 Bolt,hex. Socket Button |
901-11080-53-00 |
from US $1.77 |
||
|
31
|
31
904-65132-75-00
Clamp
|
904-65132-75-00 |
— | ||
| replacement | |||||
|
31
|
31
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
