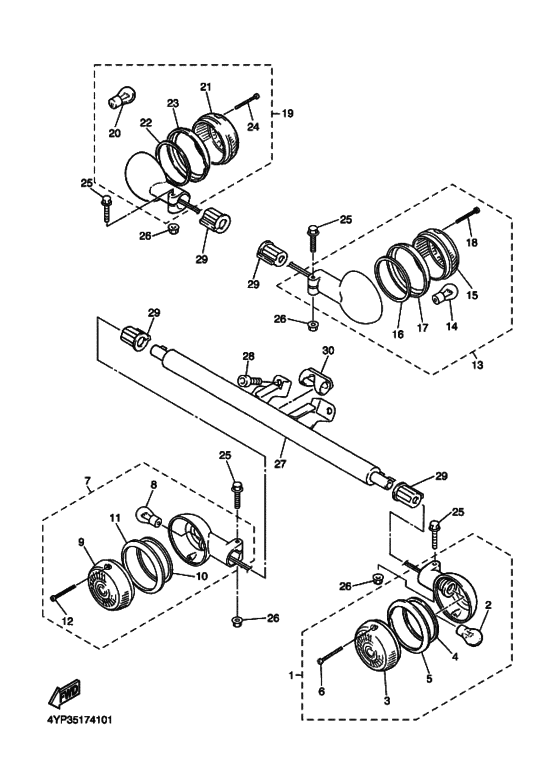

Flasher light Diagram Yamaha XVZ1300 Royal Star
- Year
- 2000
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 4YP4
- Sales region
- Europe (070)
- Engine Capacity
- 1300
- Color Variant
- A
- Model
- XVZ1300A (Royal Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2EN-83310-01-00 Front Flasher Light Assy 1 |
2EN-83310-01-00 |
from US $72.99 |
||
| replacement | |||||
|
1
|
1
2EN-83310-04-00 FRONT FLASHER LIGHT |
2EN-83310-04-00 |
from US $62.28 |
||
|
2
|
2
2AE-83311-00-00 Bulb, Flasher (12V-21W)12V-21W |
2AE-83311-00-00 |
from US $8.05 |
||
| replacement | |||||
|
2
|
2
306-83311-40-00 Bulb, Flasher (12V-21W)12V-21W |
306-83311-40-00 |
from US $7.51 |
||
|
3
|
3
42X-83312-10-00 Lens, Flasher |
42X-83312-10-00 |
from US $14.45 |
||
|
4
|
4
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.47 |
||
|
5
|
5
1D6-83363-00-00 Lens, Rim |
1D6-83363-00-00 |
from US $18.70 |
||
|
6
|
6
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $2.22 |
||
|
7
|
7
2EN-83320-01-00 Front Flasher Light Assy 2 |
2EN-83320-01-00 |
from US $73.80 |
||
| replacement | |||||
|
7
|
7
2EN-83320-04-00 FRONT FLASHER LIGHT |
2EN-83320-04-00 |
from US $83.90 |
||
|
8
|
8
2AE-83311-00-00 Bulb, Flasher (12V-21W)12V-21W |
2AE-83311-00-00 |
from US $8.05 |
||
| replacement | |||||
|
8
|
8
306-83311-40-00 Bulb, Flasher (12V-21W)12V-21W |
306-83311-40-00 |
from US $7.51 |
||
|
9
|
9
42X-83312-20-00 Lens, Flasher |
42X-83312-20-00 |
from US $14.45 |
||
|
10
|
10
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.47 |
||
|
11
|
11
1D6-83363-10-00 Lens, Rim |
1D6-83363-10-00 |
from US $18.70 |
||
|
12
|
12
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $2.22 |
||
|
13
|
13
2EN-83330-01-00 Rear Flasher Light Assy 1 |
2EN-83330-01-00 |
from US $82.24 |
||
|
14
|
14
2AE-83311-00-00 Bulb, Flasher (12V-21W)12V-21W |
2AE-83311-00-00 |
from US $8.05 |
||
| replacement | |||||
|
14
|
14
306-83311-40-00 Bulb, Flasher (12V-21W)12V-21W |
306-83311-40-00 |
from US $7.51 |
||
|
15
|
15
2AE-83312-20-00 Lens, Flasher |
2AE-83312-20-00 |
from US $10.46 |
||
|
16
|
16
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.47 |
||
|
17
|
17
1D6-83363-10-00 Lens, Rim |
1D6-83363-10-00 |
from US $18.70 |
||
|
18
|
18
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $2.22 |
||
|
19
|
19
2EN-83340-01-00 Flasher Light Assy 2 |
2EN-83340-01-00 |
from US $78.30 |
||
| replacement | |||||
|
19
|
19
2EN-83340-02-00 Rear Flasher Light A |
2EN-83340-02-00 |
US $81.74 |
||
|
20
|
20
2AE-83311-00-00 Bulb, Flasher (12V-21W)12V-21W |
2AE-83311-00-00 |
from US $8.05 |
||
| replacement | |||||
|
20
|
20
306-83311-40-00 Bulb, Flasher (12V-21W)12V-21W |
306-83311-40-00 |
from US $7.51 |
||
|
21
|
21
2AE-83312-10-00 Lens, Flasher |
2AE-83312-10-00 |
from US $9.72 |
||
| replacement | |||||
|
21
|
21
2AE-83312-20-00 Lens, Flasher |
2AE-83312-20-00 |
from US $10.46 |
||
|
22
|
22
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.47 |
||
|
23
|
23
1D6-83363-00-00 Lens, Rim |
1D6-83363-00-00 |
from US $18.70 |
||
|
24
|
24
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $2.22 |
||
|
25
|
25
95024-06030-00 Bolt, Flange (Small Head) |
95024-06030-00 |
from US $1.56 |
||
|
26
|
26
957-04065-00-00
Nut, Flange(3Bm)
|
957-04065-00-00 |
— | ||
| replacement | |||||
|
26
|
26
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
27
|
27
4NK-2317V-00-00 Stay, 8 |
4NK-2317V-00-00 |
US $186.44 |
||
|
28
|
28
91314-08016-00 Bolt, Hexagon Socket Head |
91314-08016-00 |
from US $1.42 |
||
|
29
|
29
4NK-83321-00-00 Damper, Flasher 1 |
4NK-83321-00-00 |
from US $8.74 |
||
|
30
|
30
4NK-83345-00-00 Plug, Blind |
4NK-83345-00-00 |
from US $19.98 |
||
