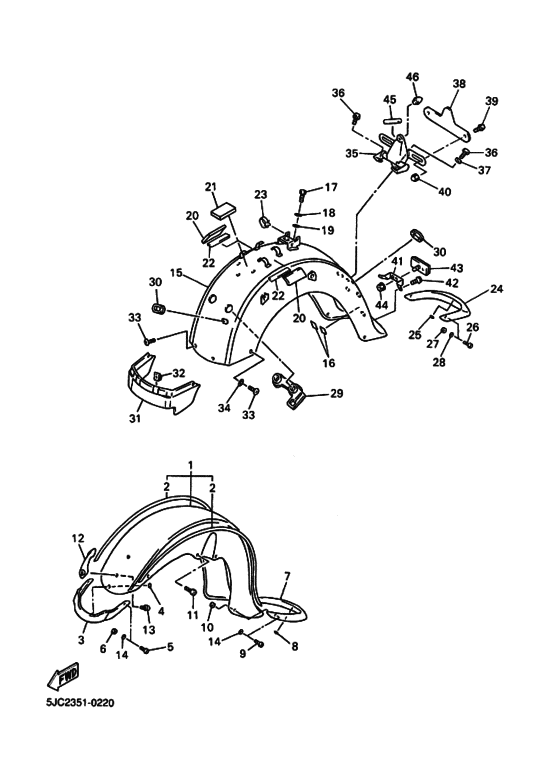

Fender Diagram Yamaha XVZ1300 Royal Star Venture
- Year
- 2000
- Colour
- Light Greenish Gray Metallic 6 (LGNM6; 0676)
- Model code
- 5JC2
- Sales region
- Europe (080)
- Engine Capacity
- 1300
- Color Variant
- B
- Model
- XVZ1300TF (Royal Star Venture)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4NL-Y2150-N0-2Y Front Fender AssyUR LGNM6/DNLGM1 |
4NL-Y2150-N0-2Y |
US $727.96 |
||
|
2
|
2
4XY-21570-30-00
Graphic Set, Front Fender
UR FOR LGNM6 |
4XY-21570-30-00 |
— | ||
|
3
|
3
4NL-21561-11-00 Flap 2 |
4NL-21561-11-00 |
from US $279.08 |
||
|
4
|
4
90183-06008-00 Nut, Spring |
90183-06008-00 |
from US $1.98 |
||
|
5
|
5
92014-05010-00 Bolt, Button Head |
92014-05010-00 |
from US $1.56 |
||
|
6
|
6
95304-05600-00 Nut |
95304-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
6
|
6
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
7
|
7
4NL-21521-10-00 Flap, Front Fender |
4NL-21521-10-00 |
from US $175.46 |
||
|
8
|
8
90183-06008-00 Nut, Spring |
90183-06008-00 |
from US $1.98 |
||
|
9
|
9
92014-05010-00 Bolt, Button Head |
92014-05010-00 |
from US $1.56 |
||
|
10
|
10
95304-05600-00 Nut |
95304-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
11
|
11
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.52 |
||
|
12
|
12
4NL-21577-10-00 Mascot |
4NL-21577-10-00 |
from US $73.87 |
||
|
13
|
13
90159-06107-00 Screw, Pan Head |
90159-06107-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
14
|
14
4NL-21575-10-00 Seal 1 |
4NL-21575-10-00 |
from US $2.27 |
||
|
15
|
15
5JC-21610-10-P2
Rear Fender Comp
UR LGNM6 |
5JC-21610-10-P2 |
— | ||
|
16
|
16
3MA-27491-00-00 Protector |
3MA-27491-00-00 |
from US $4.39 |
||
|
17
|
17
97007-08016-00 Bolt |
97007-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
18
|
18
92907-08200-00 Washer |
92907-08200-00 |
from US $1.66 |
||
|
19
|
19
90202-09227-00 Washer, Plate |
90202-09227-00 |
from US $1.66 |
||
|
20
|
20
4XY-21639-00-00 Damper 2 |
4XY-21639-00-00 |
from US $3.40 |
||
|
21
|
21
4XY-21649-00-00 Damper |
4XY-21649-00-00 |
from US $5.38 |
||
|
22
|
22
4XY-21638-00-00 Damper 1 |
4XY-21638-00-00 |
from US $1.42 |
||
|
23
|
23
90464-18246-00 Clamp(4Tr) |
90464-18246-00 |
from US $1.28 |
||
|
24
|
24
4NL-21621-10-00 Flap |
4NL-21621-10-00 |
from US $174.08 |
||
|
25
|
25
90183-06008-00 Nut, Spring |
90183-06008-00 |
from US $1.98 |
||
|
26
|
26
92014-05010-00 Bolt, Button Head |
92014-05010-00 |
from US $1.56 |
||
|
27
|
27
95304-05600-00 Nut |
95304-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
27
|
27
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
28
|
28
4NL-21575-10-00 Seal 1 |
4NL-21575-10-00 |
from US $2.27 |
||
|
29
|
29
4NK-21649-00-00 Damper |
4NK-21649-00-00 |
from US $27.63 |
||
|
30
|
30
90480-15061-00 Grommet (438) |
90480-15061-00 |
from US $1.70 |
||
|
31
|
31
4NK-21621-00-P5
Flap
UR LGNM6 |
4NK-21621-00-P5 |
— | ||
|
32
|
32
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
32
|
32
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.72 |
||
|
33
|
33
901-10062-00-00 Bolt, Hexagon Socket Head |
901-10062-00-00 |
from US $1.81 |
||
|
34
|
34
90202-06170-00 Washer, Plate |
90202-06170-00 |
from US $2.66 |
||
|
35
|
35
4YE-2317W-00-00 Stay, 9 |
4YE-2317W-00-00 |
US $335.45 |
||
|
36
|
36
92014-06012-00 Bolt, Button Head |
92014-06012-00 |
from US $1.18 |
||
|
37
|
37
90201-06043-00 Washer, Plate |
90201-06043-00 |
from US $1.28 |
||
|
38
|
38
5JC-8375E-00-00
Plate 1
|
5JC-8375E-00-00 |
— | ||
|
39
|
39
92014-06014-00 Bolt, Button Head |
92014-06014-00 |
from US $1.52 |
||
|
40
|
40
90176-06041-00 Nut, Crown (21G) |
90176-06041-00 |
from US $3.40 |
||
|
41
|
41
5JC-21641-00-00 Bracket, Reflector |
5JC-21641-00-00 |
US $20.13 |
||
|
42
|
42
92014-06012-00 Bolt, Button Head |
92014-06012-00 |
from US $1.18 |
||
|
43
|
43
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $12.80 |
||
|
44
|
44
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
45
|
45
90446-07114-00 Hose |
90446-07114-00 |
from US $1.98 |
||
|
46
|
46
5A8-21639-00-00 Damper 2 |
5A8-21639-00-00 |
from US $3.68 |
||
