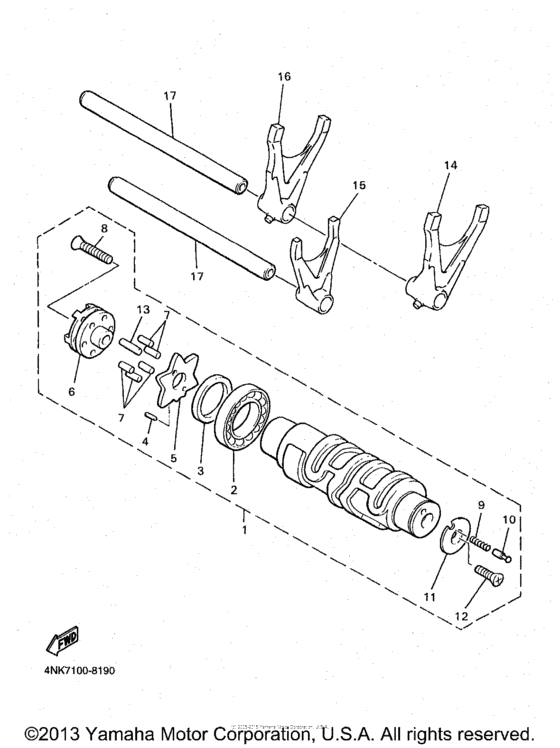

Shift cam shift fork Diagram Yamaha XVZ1300 Royal Star
- Year
- 1998
- Sales region
- USA
- Engine Capacity
- 1300
- Model
- XVZ1300A (Royal Star)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4NK-18540-02-00 Shift Cam Assy |
4NK-18540-02-00 |
from US $223.82 |
||
| replacement | |||||
|
1
|
1
4NK-18540-03-00 Shift Cam Assy |
4NK-18540-03-00 |
from US $223.82 |
||
|
2
|
2
93306-90602-00 Bearing |
93306-90602-00 |
from US $34.26 |
||
|
3
|
3
90560-30234-00 Spacer |
90560-30234-00 |
from US $1.98 |
||
|
4
|
4
93603-10049-00 Pin, Dowel |
93603-10049-00 |
from US $2.70 |
||
|
5
|
5
4NK-18141-00-00 Plate, Stopper |
4NK-18141-00-00 |
from US $28.86 |
||
|
6
|
6
4NK-18185-00-00 Segment |
4NK-18185-00-00 |
from US $59.19 |
||
|
7
|
7
93604-12037-00 Pin, Dowel |
93604-12037-00 |
from US $1.39 |
||
|
8
|
8
90151-06013-00 Screw, Countersunk |
90151-06013-00 |
from US $1.70 |
||
|
9
|
9
90501-06022-00 Spring, Compression |
90501-06022-00 |
from US $1.70 |
||
|
10
|
10
4UN-18542-00-00 Point, Neutral |
4UN-18542-00-00 |
from US $1.94 |
||
|
11
|
11
4UN-18566-00-00 Plate, Side 2 |
4UN-18566-00-00 |
from US $2.41 |
||
|
12
|
12
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
13
|
13
93604-16092-00 Pin, Dowel |
93604-16092-00 |
from US $1.56 |
||
|
14
|
14
4NK-18511-00-00 Fork, Shift 1 |
4NK-18511-00-00 |
from US $55.54 |
||
|
15
|
15
4NK-18512-00-00 Fork, Shift 2 |
4NK-18512-00-00 |
from US $52.81 |
||
|
16
|
16
4NK-18513-00-00 Fork, Shift 3 |
4NK-18513-00-00 |
from US $55.54 |
||
|
17
|
17
4NK-18531-00-00 Bar, Shift Fork Guide 1 |
4NK-18531-00-00 |
from US $22.67 |
||
