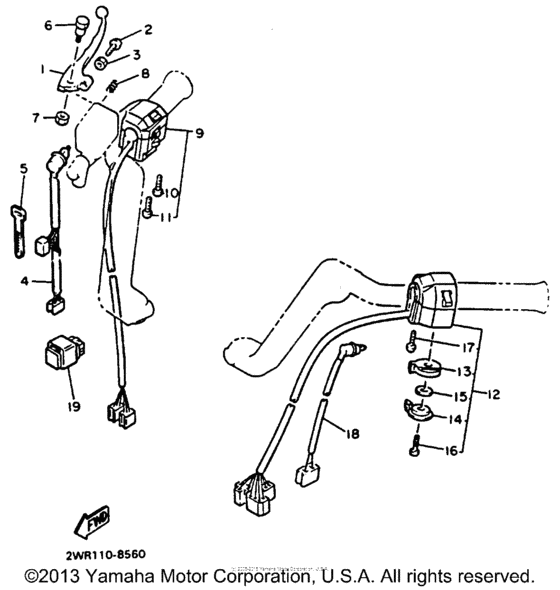

Handle switch & lever Diagram Yamaha XVZ1300 Venture Royale
- Year
- 1991
- Sales region
- USA
- Engine Capacity
- 1300
- Model
- XVZ1300 (Venture/ Venture Royale)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26H-83922-10-00 Lever 2 (26H-83922-01)26H-83922-01 |
26H-83922-10-00 |
US $56.05 |
||
|
2
|
2
90149-06131-00 Screw |
90149-06131-00 |
from US $2.08 |
||
|
3
|
3
90170-06010-00 Nut |
90170-06010-00 |
from US $2.35 |
||
|
4
|
4
2WR-83980-01-00
Front Stop Switch Assy (2Wr-839
2WR-839 |
2WR-83980-01-00 |
— | ||
|
5
|
5
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
6
|
6
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
7
|
7
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
7
|
7
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
8
|
8
90501-10510-00 Spring, Compression |
90501-10510-00 |
from US $2.83 |
||
|
9
|
9
1NL-83972-50-00
Switch, Handle 4
|
1NL-83972-50-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
98506-05040-00 Screw, Pan Head |
98506-05040-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
11
|
11
98506-05060-00
Screw, Pan Head
|
98506-05060-00 |
— | ||
|
12
|
12
1NL-83972-00-00 Switch, Handle 4 |
1NL-83972-00-00 |
US $390.96 |
||
|
13
|
13
10M-83942-00-00 Cover, Starter |
10M-83942-00-00 |
from US $17.14 |
||
|
14
|
14
10M-83941-00-00 Lever, Starter |
10M-83941-00-00 |
from US $13.18 |
||
|
15
|
15
90209-10131-00 Washer |
90209-10131-00 |
from US $1.84 |
||
|
16
|
16
98506-06008-00 Screw |
98506-06008-00 |
from US $2.41 |
||
| replacement | |||||
|
16
|
16
98517-06008-00 Screw |
98517-06008-00 |
from US $1.70 |
||
|
17
|
17
98506-05035-00 Screw, Pan Head |
98506-05035-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
18
|
18
41V-82917-01-00
Switch (41V-82917-00)
41V-82917-00 |
41V-82917-01-00 |
— | ||
|
19
|
19
25G-81950-01-00 Relay Assy (25G-01)25G-01 |
25G-81950-01-00 |
from US $34.43 |
||
| replacement | |||||
|
19
|
19
25G-81950-02-00 реле в сборереле в сборе 25G-01 |
25G-81950-02-00 |
from US $33.05 |
||
