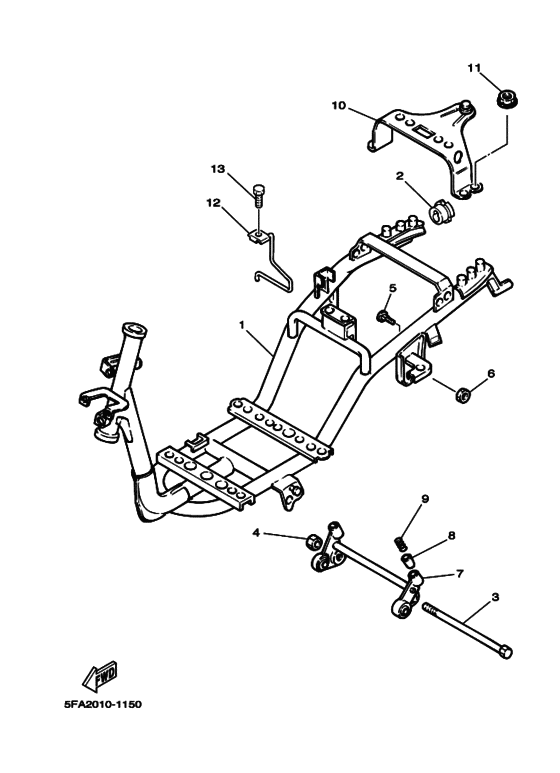

Frame 2 (5FA2) Diagram Yamaha YA100 Grand Axis 100
- Year
- 2001
- Colour
- Fairy Silver (FS; 001V)
- Model code
- 5FA2
- Sales region
- Japan (010)
- Engine Capacity
- 100
- Color Variant
- B
- Model
- YA100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5FA-F1110-10-33
Frame Comp
フレームコンプリート; ヤマハブラツク |
5FA-F1110-10-33 |
— | ||
|
2
|
2
5FA-F1399-00-00
Cap
キヤツプ，ツールボツクス; |
5FA-F1399-00-00 |
— | ||
|
3
|
3
3XG-F1481-00-00 Bolt, Engine Mounting 1 |
3XG-F1481-00-00 |
from US $9.58 |
||
|
4
|
4
956-07122-00-00 Nut, Self-Lockingナツト，セルフロツキング; |
956-07122-00-00 |
from US $9.02 |
||
|
5
|
5
4Y4-F1481-00-00 Bolt, Engine Mounting 1 |
4Y4-F1481-00-00 |
from US $9.63 |
||
| replacement | |||||
|
5
|
5
2T4-21481-01-00 Bolt, Engine Mounting 1 |
2T4-21481-01-00 |
from US $5.24 |
||
|
6
|
6
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
7
|
7
4VP-F1410-10-00 Engine Bracket Comエンジンブラケツトコンプリート; |
4VP-F1410-10-00 |
from US $47.41 |
||
| replacement | |||||
|
7
|
7
4VP-F1410-30-00 Engine Bracket Compエンジンブラケツトコンプリート; |
4VP-F1410-30-00 |
from US $108.05 |
||
|
8
|
8
4Y4-F139X-01-00 Damper |
4Y4-F139X-01-00 |
from US $2.50 |
||
| replacement | |||||
|
8
|
8
3WG-F139X-00-00 Damper |
3WG-F139X-00-00 |
US $16.46 |
||
|
9
|
9
90501-29517-00 Spring, Compression |
90501-29517-00 |
US $2.83 |
||
| replacement | |||||
|
9
|
9
905-01290-K2-00 Spring, Compression |
905-01290-K2-00 |
US $2.83 |
||
|
10
|
10
5CP-F1349-00-00 Bracket, Seatブラケツト，シート; |
5CP-F1349-00-00 |
US $58.80 |
||
|
11
|
11
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
12
|
12
5FA-F1339-00-00 Guide, Wire |
5FA-F1339-00-00 |
US $8.51 |
||
|
13
|
13
958-07060-14-00
Bolt, Flange
|
958-07060-14-00 |
— | ||
| replacement | |||||
|
13
|
13
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
