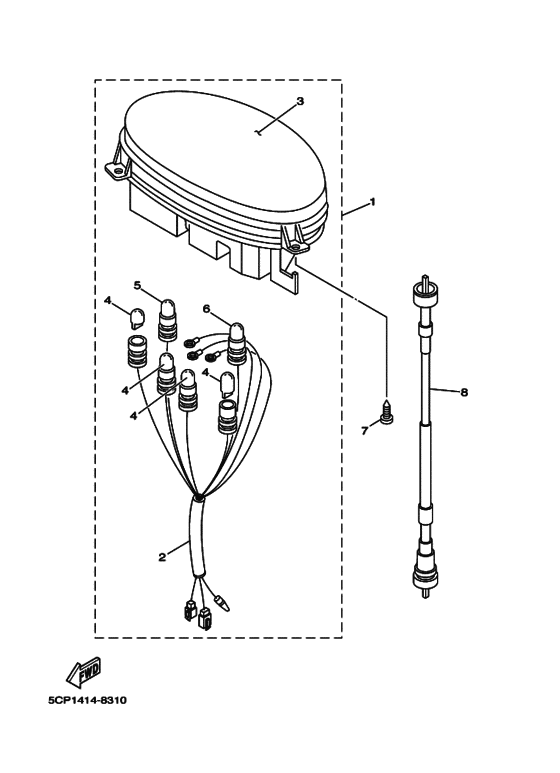

Meter Diagram Yamaha YA100 Grand Axis 100
- Year
- 2001
- Colour
- Fairy Silver (FS; 001V)
- Model code
- 5FA2
- Sales region
- Japan (010)
- Engine Capacity
- 100
- Color Variant
- B
- Model
- YA100
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5FA-H3510-10-00
Speedometer Assy
スピードメータアセンブリ; |
5FA-H3510-10-00 |
— | ||
|
2
|
2
5CP-H3509-00-00 Socket Cord Assy．ソケツトコードアセンブリ; |
5CP-H3509-00-00 |
US $38.15 |
||
|
3
|
3
5CP-H353K-00-00 Glass Plate．ガラスプレート; |
5CP-H353K-00-00 |
US $25.79 |
||
|
4
|
4
3GF-H3517-00-00
Bulb
．バルブ; |
3GF-H3517-00-00 |
— | ||
| replacement | |||||
|
4
|
4
1Y7-83517-00-00 Bulb (12V-1.7W T10)．バルブ; |
1Y7-83517-00-00 |
US $3.26 |
||
|
5
|
5
5CP-H3518-00-00 Bulb, Meter．バルブ，メータ; |
5CP-H3518-00-00 |
US $2.35 |
||
|
6
|
6
4TE-H3517-00-00 Bulb (12V-3.4W)．バルブ; |
4TE-H3517-00-00 |
US $6.38 |
||
|
7
|
7
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
7
|
7
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
8
|
8
4VP-H3550-02-00 Speedometer Cable Assyスピードメータケーブルアセンブリ; |
4VP-H3550-02-00 |
US $23.80 |
||
| replacement | |||||
|
8
|
8
4VP-H3550-03-00 Speedometer Cableスピードメータケーブルアセンブリ; |
4VP-H3550-03-00 |
US $23.80 |
||
