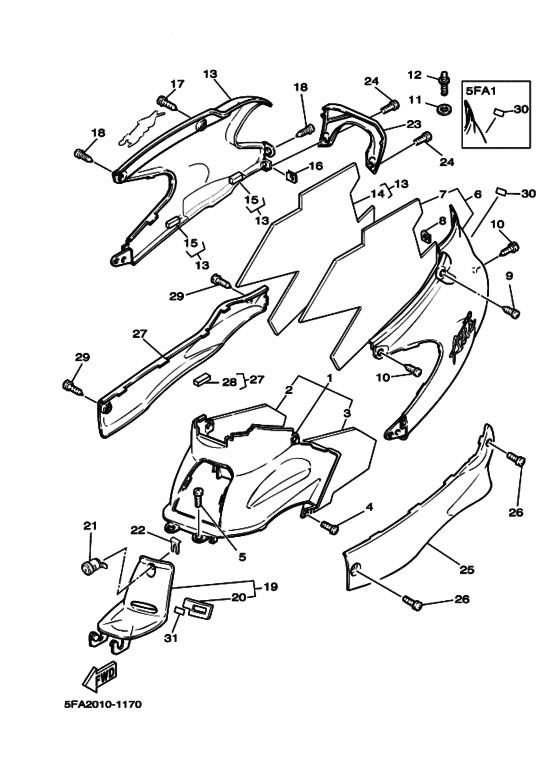

Side cover Diagram Yamaha YA100 Grand Axis 100
- Year
- 2001
- Colour
- Fairy Silver (FS; 001V)
- Model code
- 5FA2
- Sales region
- Japan (010)
- Engine Capacity
- 100
- Color Variant
- B
- Model
- YA100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5FA-X2171-01-00 Cover, Side 1カバー，サイド １; |
5FA-X2171-01-00 |
US $86.04 |
||
|
2
|
2
5FA-F177M-00-00 Damper, Locating 3．ダンパ，ロケーテイング ３; |
5FA-F177M-00-00 |
US $22.47 |
||
|
3
|
3
5FA-F177N-00-00 Damper, Locating 4．ダンパ，ロケーテイング ４; |
5FA-F177N-00-00 |
US $30.07 |
||
|
4
|
4
97707-50012-00 Screw, Truss Head Tappingスクリユ，タツピング; |
97707-50012-00 |
from US $1.28 |
||
|
5
|
5
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
5
|
5
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
6
|
6
5CP-X2172-20-1V Cover, Side 2カバー，サイド ２; ＵＲ フエアリーシルバーグラフィック付 |
5CP-X2172-20-1V |
US $193.62 |
||
|
7
|
7
5FA-F1778-00-00 Damper, Locating 1．ダンパ，ロケーテイング １; |
5FA-F1778-00-00 |
US $38.30 |
||
|
8
|
8
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
8
|
8
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
9
|
9
97707-50012-00 Screw, Truss Head Tappingスクリユ，タツピング; |
97707-50012-00 |
from US $1.28 |
||
|
10
|
10
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
10
|
10
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
11
|
11
90201-08753-00 Washer, Plateワツシヤ，プレート; |
90201-08753-00 |
US $2.22 |
||
| replacement | |||||
|
11
|
11
90201-081R9-00 Washer, Plateワツシヤ，プレート; |
90201-081R9-00 |
from US $2.22 |
||
|
12
|
12
90116-08822-00 Bolt, Stud |
90116-08822-00 |
US $13.46 |
||
|
13
|
13
5CP-X2173-20-1V Cover, Side 3ＵＲ フエアリーシルバーグラフィック付 |
5CP-X2173-20-1V |
US $266.65 |
||
|
14
|
14
5FA-F1779-00-00 Damper, Locating 2．ダンパ，ロケーテイング ２; |
5FA-F1779-00-00 |
US $38.30 |
||
|
15
|
15
5FA-F1717-00-00 Damper．ダンパ; |
5FA-F1717-00-00 |
US $2.41 |
||
|
16
|
16
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
16
|
16
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
17
|
17
97707-50012-00 Screw, Truss Head Tappingスクリユ，タツピング; |
97707-50012-00 |
from US $1.28 |
||
|
18
|
18
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
18
|
18
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
19
|
19
5FA-X2174-00-00 Cover, Side 4カバー，サイド ４; |
5FA-X2174-00-00 |
US $23.07 |
||
|
20
|
20
5FA-F1746-00-00 Damper．ダンパ; |
5FA-F1746-00-00 |
US $5.95 |
||
|
21
|
21
5FA-F1708-00-00
Lock Assy 2
ロツクアセンブリ ２; |
5FA-F1708-00-00 |
— | ||
|
22
|
22
5FA-F175L-00-00
Plate, Lock
|
5FA-F175L-00-00 |
— | ||
|
23
|
23
5CP-F4756-00-1V Cover, Tailカバー，テール; ＵＲ フエアリーシルバー |
5CP-F4756-00-1V |
US $35.99 |
||
|
24
|
24
97707-50012-00 Screw, Truss Head Tappingスクリユ，タツピング; |
97707-50012-00 |
from US $1.28 |
||
|
25
|
25
5FA-F171L-00-1V Mole, Side Cover 1モール，サイドカバー １; ＵＲ フエアリーシルバー |
5FA-F171L-00-1V |
US $61.53 |
||
|
26
|
26
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
26
|
26
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
27
|
27
5FA-X217M-00-1V Mole, Side Cover 2モール，サイドカバー ２; ＵＲ フエアリーシルバー |
5FA-X217M-00-1V |
US $61.53 |
||
|
28
|
28
5FA-F1717-00-00 Damper．ダンパ; |
5FA-F1717-00-00 |
US $2.41 |
||
|
29
|
29
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
29
|
29
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
31
|
31
4JP-2178B-00-00 Oil, Label |
4JP-2178B-00-00 |
US $2.69 |
||
