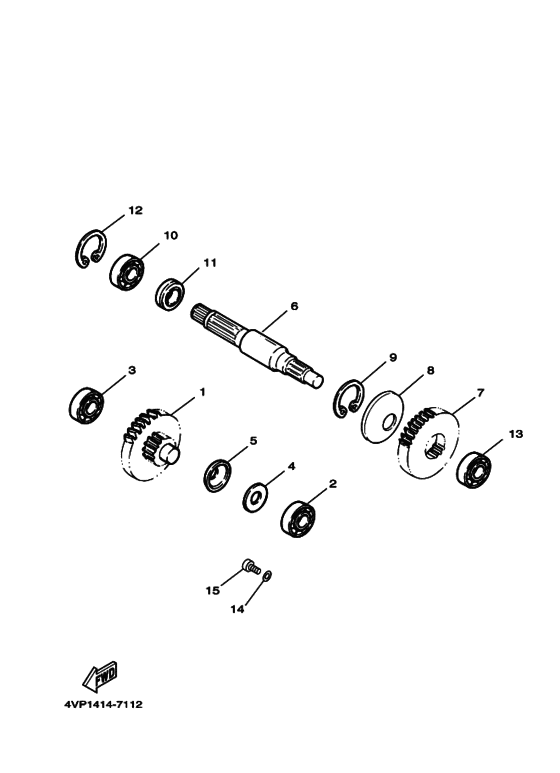

Transmission Diagram Yamaha YA100 Grand Axis 100
- Year
- 2005
- Colour
- Midnight Silver (MDS; 007M)
- Model code
- 5FA4
- Sales region
- Japan (010)
- Engine Capacity
- 100
- Color Variant
- B
- Model
- YA100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5FA-E7410-11-00 Main Axle Compメインアクスルコンプリート; |
5FA-E7410-11-00 |
US $156.12 |
||
|
2
|
2
933-11315-Y2-00 Bearing |
933-11315-Y2-00 |
from US $13.81 |
||
|
3
|
3
93306-200Y1-00 Bearingベアリング; |
93306-200Y1-00 |
from US $5.90 |
||
|
4
|
4
90201-158K9-00 Washer, Plateワツシヤ，プレート; |
90201-158K9-00 |
US $7.37 |
||
|
5
|
5
90208-15807-00 Washer, Conical Springワツシヤ，コニカルスプリング; |
90208-15807-00 |
US $4.39 |
||
|
6
|
6
4VP-E7421-01-00 Axle, Drive |
4VP-E7421-01-00 |
from US $43.02 |
||
|
7
|
7
5FA-E7211-11-00 Gear, 1St Wheelギヤ，フアーストホイール; |
5FA-E7211-11-00 |
US $92.22 |
||
|
8
|
8
90208-21801-00 Washer, Conical Spring |
90208-21801-00 |
US $9.63 |
||
|
9
|
9
93410-20823-00 Circlipサークリツプ; |
93410-20823-00 |
from US $0.45 |
||
|
10
|
10
93306-004X7-00 Bearing |
93306-004X7-00 |
from US $12.37 |
||
|
11
|
11
93102-25270-00 Oil Sealオイルシール; |
93102-25270-00 |
from US $6.52 |
||
| replacement | |||||
|
11
|
11
931-02258-09-00 Oil Sealオイルシール; |
931-02258-09-00 |
from US $1.35 |
||
|
12
|
12
990-09425-00-00 Circlipサークリツプ; |
990-09425-00-00 |
from US $1.66 |
||
|
13
|
13
93306-203YE-00 Bearing |
93306-203YE-00 |
from US $9.59 |
||
|
14
|
14
90201-06847-00 Washer, Plateワツシヤ，プレート; |
90201-06847-00 |
US $1.56 |
||
|
15
|
15
950-27060-10-00 Bolt, Flange(4My)ボルト，フランジ; |
950-27060-10-00 |
from US $1.18 |
||
