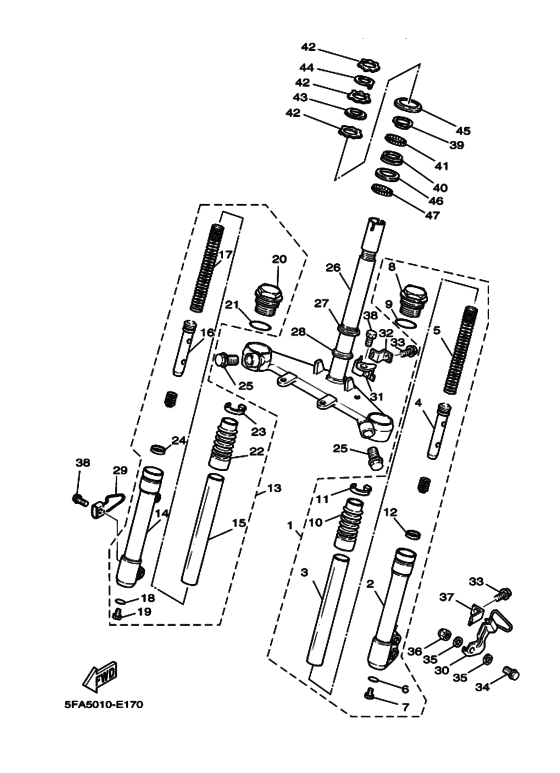

Front fork Diagram Yamaha YA100 Grand Axis 100
- Year
- 2006
- Colour
- Midnight Silver (MDS; 007M)
- Model code
- 5FA5
- Sales region
- Japan (010)
- Engine Capacity
- 100
- Color Variant
- B
- Model
- YA100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5FA-F3102-30-33
Front Fork Assy (L.h)
フロントフオークアセンブリ ; レフト |
5FA-F3102-30-33 |
— | ||
|
2
|
2
5CP-F3126-30-33 Tube, Outer (L.h)．チユーブ，アウタ Ｌ; |
5CP-F3126-30-33 |
US $150.60 |
||
|
3
|
3
5CP-F3110-00-00 Inner Tube Comp.1．インナチユーブコンプリート １; ＊１ |
5CP-F3110-00-00 |
US $85.48 |
||
|
4
|
4
5CP-F3170-00-00 Cylinder Comp., Front Fork．シリンダコンプリート，フロントフオーク; ＊２ |
5CP-F3170-00-00 |
US $29.23 |
||
|
5
|
5
5FA-F3141-00-00 Spring, Front Fork．スプリング，フロントフオーク; |
5FA-F3141-00-00 |
US $37.99 |
||
|
6
|
6
3GF-F3158-00-00 Gasket．ガスケツト; |
3GF-F3158-00-00 |
US $1.70 |
||
|
7
|
7
3GF-F3181-00-00 Bolt, Hexagon Socket Head．ボルト，ヘキサゴンソケツトヘツド; |
3GF-F3181-00-00 |
from US $1.67 |
||
|
8
|
8
4WX-F3154-00-00 Cap．プラグ，インナチユーブ; |
4WX-F3154-00-00 |
US $4.68 |
||
|
9
|
9
3GF-F3147-00-00 O-Ring．Ｏ−リング; |
3GF-F3147-00-00 |
from US $0.45 |
||
| replacement | |||||
|
9
|
9
93210-16275-00 O-Ring．Ｏ−リング; |
93210-16275-00 |
from US $1.63 |
||
|
10
|
10
5CP-F3191-00-00 Boot．ブーツ; ＊３ |
5CP-F3191-00-00 |
US $45.04 |
||
|
11
|
11
4JL-F3192-00-00 Band．バンド; |
4JL-F3192-00-00 |
US $4.19 |
||
|
12
|
12
5SU-F3145-00-00 Oil Seal．オイルシール; ＊４ |
5SU-F3145-00-00 |
from US $3.53 |
||
|
13
|
13
5CP-F3103-00-33 Front Fork Assy (R.h)フロントフオークアセンブリ ; ライト |
5CP-F3103-00-33 |
US $326.06 |
||
|
14
|
14
5CP-F3136-00-33 Tube, Outer 2．チユーブ，アウタ Ｒ; |
5CP-F3136-00-33 |
US $125.07 |
||
|
15
|
15
5CP-F3110-00-00 Inner Tube Comp.1．インナチユーブコンプリート １; |
5CP-F3110-00-00 |
US $85.48 |
||
|
16
|
16
5CP-F3170-00-00 Cylinder Comp., Front Fork．シリンダコンプリート，フロントフオーク; |
5CP-F3170-00-00 |
US $29.23 |
||
|
17
|
17
5FA-F3141-00-00 Spring, Front Fork．スプリング，フロントフオーク; |
5FA-F3141-00-00 |
US $37.99 |
||
|
18
|
18
3GF-F3158-00-00 Gasket．ガスケツト; |
3GF-F3158-00-00 |
US $1.70 |
||
|
19
|
19
3GF-F3181-00-00 Bolt, Hexagon Socket Head．ボルト，ヘキサゴンソケツトヘツド; |
3GF-F3181-00-00 |
from US $1.67 |
||
|
20
|
20
4WX-F3154-00-00 Cap．プラグ，インナチユーブ; |
4WX-F3154-00-00 |
US $4.68 |
||
|
21
|
21
3GF-F3147-00-00 O-Ring．Ｏ−リング; |
3GF-F3147-00-00 |
from US $0.45 |
||
| replacement | |||||
|
21
|
21
93210-16275-00 O-Ring．Ｏ−リング; |
93210-16275-00 |
from US $1.63 |
||
|
22
|
22
5CP-F3191-00-00 Boot．ブーツ; |
5CP-F3191-00-00 |
US $45.04 |
||
|
23
|
23
4JL-F3192-00-00 Band．バンド; |
4JL-F3192-00-00 |
US $4.19 |
||
|
24
|
24
5SU-F3145-00-00 Oil Seal．オイルシール; |
5SU-F3145-00-00 |
from US $3.53 |
||
|
25
|
25
3GF-F3346-00-00 Bolt 1 |
3GF-F3346-00-00 |
from US $1.28 |
||
|
26
|
26
5FA-F3340-00-00 Under Bracket Compアンダブラケツトコンプリート; |
5FA-F3340-00-00 |
US $379.19 |
||
|
27
|
27
1MH-F3411-00-00 Race, Ball 1レース，ボール １; |
1MH-F3411-00-00 |
from US $8.75 |
||
| replacements | |||||
|
27
|
27
156-23411-00-00 Race, Ball 1レース，ボール １; |
156-23411-00-00 |
from US $17.10 |
||
|
27
|
27
4C6-F3411-10-00 Race, Ball 1レース，ボール １; |
4C6-F3411-10-00 |
from US $7.81 |
||
|
27
|
27
B6E-23411-00-00 Race, Ball 1レース，ボール １; |
B6E-23411-00-00 |
from US $9.65 |
||
|
28
|
28
3KW-F3462-00-00 Seal, Steeringシール，ステアリング; |
3KW-F3462-00-00 |
from US $2.70 |
||
|
29
|
29
3GF-F3317-00-00 Holder, Cableホルダ，ケーブル; |
3GF-F3317-00-00 |
from US $2.93 |
||
|
30
|
30
5FA-F5875-11-00 Holder, Brake Hose 1ホルダ，ブレーキホース １; |
5FA-F5875-11-00 |
US $20.05 |
||
|
31
|
31
5FA-F5886-01-00 Holder, Brake Hoseホルダ，ブレーキホース; |
5FA-F5886-01-00 |
from US $4.66 |
||
|
32
|
32
5FA-F5887-00-00 Holder, Brake Hoseホルダ，ブレーキホース; |
5FA-F5887-00-00 |
from US $1.21 |
||
|
33
|
33
90119-05062-00 Bolt, With Washer |
90119-05062-00 |
from US $1.70 |
||
| replacement | |||||
|
33
|
33
97017-05012-00 Bolt |
97017-05012-00 |
from US $1.39 |
||
|
34
|
34
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
| replacement | |||||
|
34
|
34
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
35
|
35
90201-064J1-00 Washer, Plateワツシヤ，プレート; |
90201-064J1-00 |
from US $1.98 |
||
|
36
|
36
956-07061-00-00
Nut, U
ナツト，Ｕ; |
956-07061-00-00 |
— | ||
| replacement | |||||
|
36
|
36
95617-06100-00 Nut, Uナツト，Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
37
|
37
5FA-F5876-10-00 Holder, Brake Hose 2ホルダ，ブレーキホース ２; |
5FA-F5876-10-00 |
US $4.68 |
||
|
38
|
38
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
38
|
38
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
39
|
39
22F-23411-01-00 Race, Ball 1レース，ボール １; |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
39
|
39
BP2-23411-00-00 Race, Ball 1レース，ボール １; |
BP2-23411-00-00 |
from US $9.71 |
||
|
40
|
40
22F-23412-01-00 Race, Ball 2レース，ボール ２; |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
40
|
40
BP2-23412-00-00 Race, Ball 2レース，ボール ２; |
BP2-23412-00-00 |
from US $8.74 |
||
|
41
|
41
22F-2341E-00-00 Retainer, Ball Bearingリテーナ、ボールベアリング; |
22F-2341E-00-00 |
from US $14.14 |
||
| replacement | |||||
|
41
|
41
BP2-2341E-00-00 Retainer, Ball Bearingリテーナ、ボールベアリング; |
BP2-2341E-00-00 |
from US $14.14 |
||
|
42
|
42
901-79256-15-00
Nut
|
901-79256-15-00 |
— | ||
| replacement | |||||
|
42
|
42
901-79258-11-00 Nut |
901-79258-11-00 |
from US $5.44 |
||
|
43
|
43
90202-26142-00 Washer, Plateワツシヤ，プレート; |
90202-26142-00 |
from US $2.08 |
||
|
44
|
44
4VP-F3418-00-00 Washer, Special |
4VP-F3418-00-00 |
from US $2.59 |
||
|
45
|
45
4TE-F3416-00-00 Cover, Ball Race 2カバー，ボールレース ２; |
4TE-F3416-00-00 |
from US $0.58 |
||
|
46
|
46
156-23412-00-00 Race, Ball 2レース，ボール ２; |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
46
|
46
B6E-23412-00-00 Race, Ball 2レース，ボール ２; |
B6E-23412-00-00 |
from US $11.83 |
||
|
47
|
47
156-2341E-00-00 Retainer, Ball Bearingリテーナ、ボールベアリング; |
156-2341E-00-00 |
from US $9.38 |
||
| replacement | |||||
|
47
|
47
B6E-2341E-00-00 Retainer, Ball Bearingリテーナ、ボールベアリング; |
B6E-2341E-00-00 |
from US $8.64 |
||
