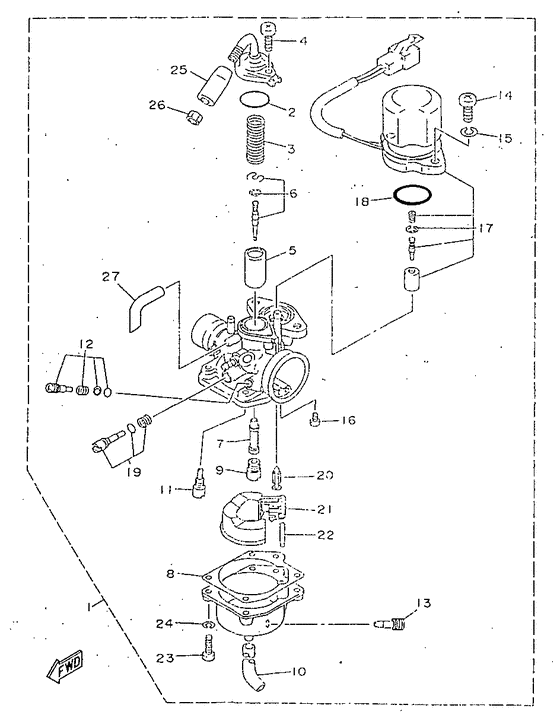

Carburetor Diagram Yamaha YA50 Axis 50
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 3UG2
- Sales region
- Germany (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4FW-14301-01-00
Carburetor Assy 1
|
4FW-14301-01-00 |
— | ||
| replacement | |||||
|
01
|
01
4FW-14301-02-00
Carburetot Assy
|
4FW-14301-02-00 |
— | ||
|
02
|
02
4JP-14561-00-00 O-Ring |
4JP-14561-00-00 |
from US $5.95 |
||
|
03
|
03
1YU-14331-00-00 Spring, Throttle Valve |
1YU-14331-00-00 |
from US $3.59 |
||
|
04
|
04
985-80050-14-00
Screw, Pan Head
|
985-80050-14-00 |
— | ||
| replacements | |||||
|
04
|
04
98502-05014-00 Screw, Pan Head |
98502-05014-00 |
from US $1.28 |
||
|
04
|
04
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
05
|
05
3KJ-14312-20-00
Valve, Throttle 1
|
3KJ-14312-20-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
4FW-1490J-00-00 Needle Set |
4FW-1490J-00-00 |
US $28.94 |
||
|
07
|
07
4FW-14341-00-00
Nozzle, Main
|
4FW-14341-00-00 |
— | ||
|
08
|
08
14T-14384-00-00 Gasket, Float Chamber |
14T-14384-00-00 |
from US $11.62 |
||
|
09
|
09
14T-14343-38-00 Jet, Main (76) |
14T-14343-38-00 |
from US $10.42 |
||
|
10
|
10
3KJ-14349-01-00 Pipe |
3KJ-14349-01-00 |
from US $3.12 |
||
|
11
|
11
3KJ-14353-19-00
Jet, Pilot
|
3KJ-14353-19-00 |
— | ||
|
12
|
12
4JP-14104-00-00 Air Screw Set |
4JP-14104-00-00 |
from US $10.94 |
||
|
13
|
13
14T-14104-00-00 Screw, Air Adjusting |
14T-14104-00-00 |
from US $13.86 |
||
|
14
|
14
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
16
|
16
98580-03006-00 Screw, Pan Head |
98580-03006-00 |
from US $2.35 |
||
|
17
|
17
4FW-1410A-00-00
Starter Set
|
4FW-1410A-00-00 |
— | ||
|
18
|
18
1HV-14147-00-00 O-Ring |
1HV-14147-00-00 |
from US $9.92 |
||
|
19
|
19
3YJ-14103-00-00 Throttle Screw Set |
3YJ-14103-00-00 |
from US $18.74 |
||
|
20
|
20
2JA-14392-00-00 Valve, Needle |
2JA-14392-00-00 |
from US $26.91 |
||
|
21
|
21
4HV-14385-01-00
Float
|
4HV-14385-01-00 |
— | ||
|
22
|
22
367-14386-00-00 Pin, Float |
367-14386-00-00 |
from US $4.86 |
||
|
23
|
23
98580-04016-00 Screw, Panhead (+) |
98580-04016-00 |
from US $1.07 |
||
|
24
|
24
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
25
|
25
3KJ-26329-00-00 Cap, Rubber |
3KJ-26329-00-00 |
from US $6.76 |
||
|
26
|
26
288-14161-00-00
Nut, Cable Adjusting
|
288-14161-00-00 |
— | ||
| replacement | |||||
|
26
|
26
85L-14161-00-00
Nut, Cable Adjusting
|
85L-14161-00-00 |
— | ||
|
27
|
27
2JA-14397-00-00 O-Ring |
2JA-14397-00-00 |
from US $9.85 |
||
