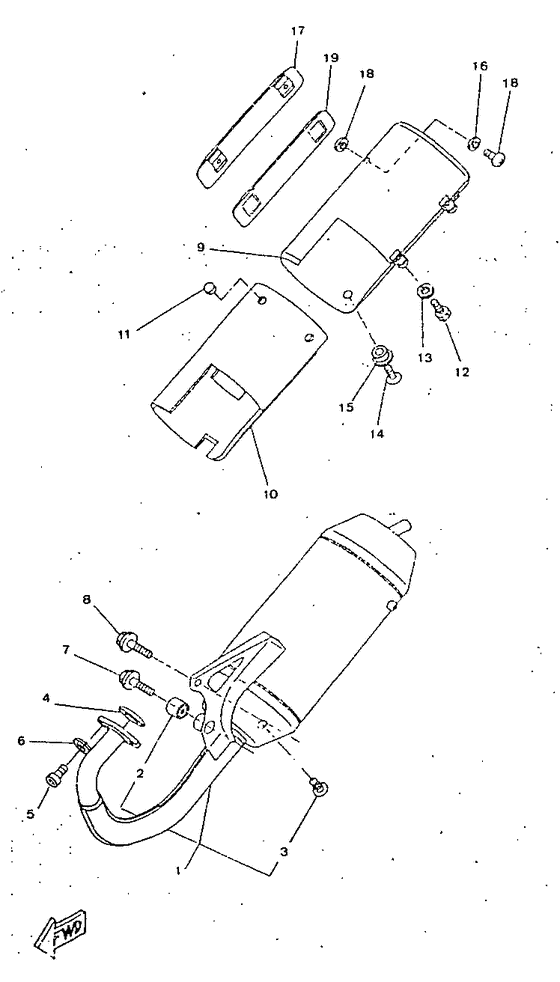

Exhaust Diagram Yamaha YA50 Axis 50
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 3UG2
- Sales region
- Germany (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4RC-E4610-00-00
Exhaust Pipe Assy 1
|
4RC-E4610-00-00 |
— | ||
|
02
|
02
2JA-14737-00-00 Damper, Muffler |
2JA-14737-00-00 |
US $8.73 |
||
|
03
|
03
NH7-91810-10-00
Screw
|
NH7-91810-10-00 |
— | ||
| replacement | |||||
|
03
|
03
97707-30606-00
Screw, Pan Tap.2 Slit
|
97707-30606-00 |
— | ||
|
04
|
04
3WG-E4613-00-00 Gasket, Exhaust Pipe |
3WG-E4613-00-00 |
US $8.36 |
||
| replacement | |||||
|
04
|
04
5AD-E4613-00-00 Gasket, Exhaust Pi |
5AD-E4613-00-00 |
US $9.15 |
||
|
05
|
05
91311-06020-00 Bolt, Hexagon Socket Head |
91311-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
05
|
05
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.39 |
||
|
06
|
06
90201-062A8-00 Washer, Plate |
90201-062A8-00 |
from US $1.84 |
||
|
07
|
07
95816-08040-00 Bolt, Flange |
95816-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
07
|
07
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
08
|
08
95826-08025-00 Bolt, Flange |
95826-08025-00 |
from US $1.07 |
||
| replacement | |||||
|
08
|
08
95817-08025-00 Bolt, Flange |
95817-08025-00 |
from US $1.07 |
||
|
09
|
09
4LN-E4718-00-00
Protector, Muffler 1
|
4LN-E4718-00-00 |
— | ||
|
10
|
10
3AA-1469A-01-00
Fiber
|
3AA-1469A-01-00 |
— | ||
|
11
|
11
3AA-14653-00-00 Gasket, Exhaust 4 |
3AA-14653-00-00 |
from US $2.20 |
||
| replacement | |||||
|
11
|
11
3AA-14653-09-00 Gasket, Exhaust 4 |
3AA-14653-09-00 |
US $2.20 |
||
|
12
|
12
97301-05016-00 Bolt, Hexagon |
97301-05016-00 |
US $7.18 |
||
| replacement | |||||
|
12
|
12
973-13050-16-00
Bolt, Hexagon
|
973-13050-16-00 |
— | ||
|
13
|
13
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
13
|
13
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
13
|
13
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
14
|
14
98906-06014-00 Screw, Bind |
98906-06014-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
98907-06014-00 Screw, Binding |
98907-06014-00 |
from US $1.66 |
||
|
15
|
15
4FG-E4638-00-00
Collar
|
4FG-E4638-00-00 |
— | ||
|
16
|
16
3WX-14766-00-00 Washer, Protector |
3WX-14766-00-00 |
from US $8.36 |
||
|
17
|
17
3VL-E4729-00-00
Emblem, Protector
|
3VL-E4729-00-00 |
— | ||
| replacement | |||||
|
17
|
17
3VL-E4729-00-11
Emblem, Protector
|
3VL-E4729-00-11 |
— | ||
|
18
|
18
98501-06010-00 Screw Pan Head |
98501-06010-00 |
US $1.42 |
||
| replacement | |||||
|
18
|
18
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
19
|
19
4FG-14747-00-00
Damper, Muffler
|
4FG-14747-00-00 |
— | ||
