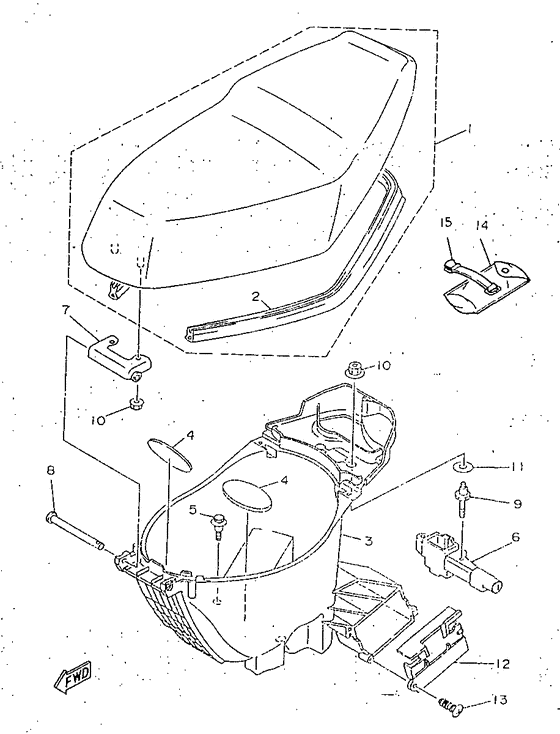

Seat Diagram Yamaha YA50 Axis 50
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 3UG2
- Sales region
- Germany (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4MJ-F4730-00-00
Double Seat Assy
Ur yb |
4MJ-F4730-00-00 |
— | ||
| replacement | |||||
|
01
|
01
4MJ-F4730-20-00
Double Seat Assy
Ur yb |
4MJ-F4730-20-00 |
— | ||
|
02
|
02
4MJ-F475M-00-00
Seal
|
4MJ-F475M-00-00 |
— | ||
|
03
|
03
4MJ-F473R-01-00
Box 1
|
4MJ-F473R-01-00 |
— | ||
|
04
|
04
4MJ-F4747-00-00
Damper, Seat
|
4MJ-F4747-00-00 |
— | ||
|
05
|
05
90109-063F1-00 Bolt |
90109-063F1-00 |
from US $1.66 |
||
|
06
|
06
4PC-F4780-00-00
Seat Lock Assy
|
4PC-F4780-00-00 |
— | ||
| replacement | |||||
|
06
|
06
4MJ-F4780-01-00
Seat Lock Assy
|
4MJ-F4780-01-00 |
— | ||
|
07
|
07
3WG-F4726-00-00
Hinge, Seat
|
3WG-F4726-00-00 |
— | ||
|
08
|
08
90241-10015-00 Pin |
90241-10015-00 |
from US $5.81 |
||
| replacement | |||||
|
08
|
08
902-41108-01-00 Pin |
902-41108-01-00 |
US $6.24 |
||
|
09
|
09
3VP-24717-00-00
Bolt, Seat Fitting
|
3VP-24717-00-00 |
— | ||
|
10
|
10
90179-06403-00 Nut (21W) |
90179-06403-00 |
from US $1.70 |
||
|
11
|
11
90201-08107-00 Washer, Plate |
90201-08107-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
90201-086A3-00 Washer, Plate |
90201-086A3-00 |
from US $1.70 |
||
|
12
|
12
3WG-H2129-00-00
Cover, Battery
|
3WG-H2129-00-00 |
— | ||
|
13
|
13
90167-05041-00 Screw, Truss Head Tapping |
90167-05041-00 |
from US $1.28 |
||
| replacement | |||||
|
13
|
13
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
14
|
14
21L-F8100-10-00
Tool Kit
|
21L-F8100-10-00 |
— | ||
| replacement | |||||
|
14
|
14
5WX-F8100-00-00
Tool Kit
|
5WX-F8100-00-00 |
— | ||
|
15
|
15
1TK-H2131-00-00
Band, Battery
|
1TK-H2131-00-00 |
— | ||
