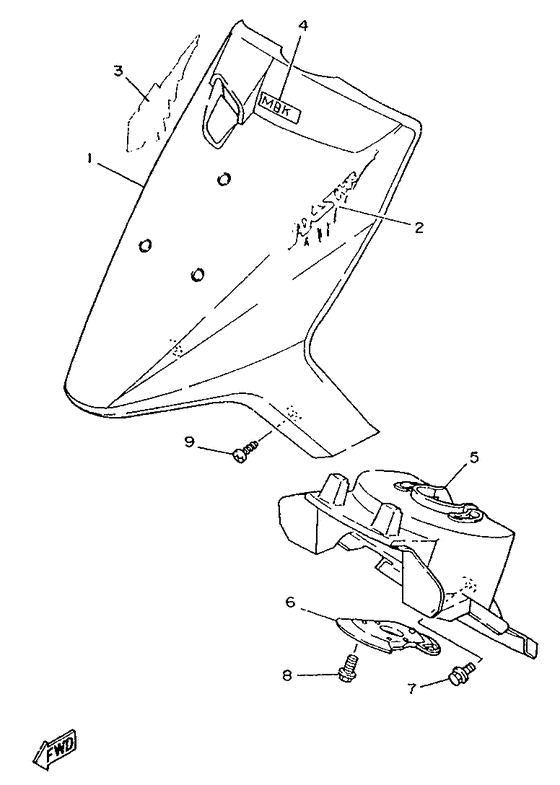

Guardaborro Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Colour
- Spanish Dark Green Cocktail 1 (SDGC1; 0479)
- Model code
- 4MJ2
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4MJ-F1511-B0-Q2
Fender, Front
Ur sdgc1 |
4MJ-F1511-B0-Q2 |
— | ||
| replacement | |||||
|
01
|
01
4MJ-X1511-B0-Q2
Fender, Front
Ur sdgc1 |
4MJ-X1511-B0-Q2 |
— | ||
|
02
|
02
4MJ-F1571-B0-00
Graphic, Front Fender 1
Ur para sdgc1 |
4MJ-F1571-B0-00 |
— | ||
|
03
|
03
4MJ-F1572-B0-00
Graphic, Front Fender 2
Ur para sdgc1 |
4MJ-F1572-B0-00 |
— | ||
|
04
|
04
992-36000-80-00
Emblem, Yamaha
|
992-36000-80-00 |
— | ||
| replacement | |||||
|
04
|
04
992-46000-80-00 Emblem (YAMAHA) |
992-46000-80-00 |
from US $9.07 |
||
|
05
|
05
4PC-F1552-00-00
Fender, Inner
|
4PC-F1552-00-00 |
— | ||
|
06
|
06
3WG-F1553-00-00
Fender, Inner 2
|
3WG-F1553-00-00 |
— | ||
|
07
|
07
95806-06012-00 Bolt Hexagon |
95806-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
07
|
07
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
08
|
08
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
08
|
08
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.35 |
||
|
09
|
09
90163-05006-00 Screw, Tapping |
90163-05006-00 |
from US $1.84 |
||
| replacement | |||||
|
09
|
09
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
