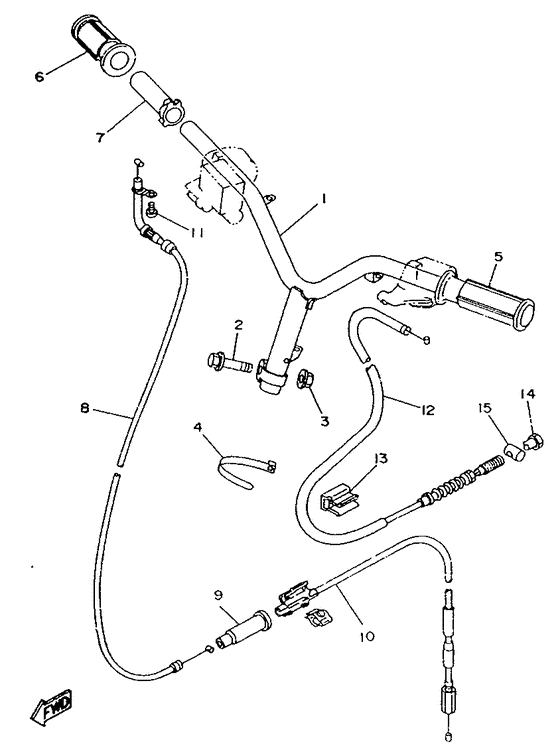

Mannilar. cables Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Colour
- Spanish Dark Green Cocktail 1 (SDGC1; 0479)
- Model code
- 4MJ2
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4PC-F6110-00-00
Handle Comp
|
4PC-F6110-00-00 |
— | ||
|
02
|
02
90105-10036-00 Bolt, Flange |
90105-10036-00 |
from US $4.25 |
||
|
03
|
03
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
04
|
04
90464-10380-00
Clamp
|
90464-10380-00 |
— | ||
|
05
|
05
3VL-F6241-00-00 Grip |
3VL-F6241-00-00 |
US $14.42 |
||
|
06
|
06
3VL-F6242-00-00
Grip (Right)
|
3VL-F6242-00-00 |
— | ||
| replacement | |||||
|
06
|
06
3VL-F6240-00-00
Grip Assy
|
3VL-F6240-00-00 |
— | ||
|
07
|
07
3WG-F6243-00-00
Tube, Throttle Guide
|
3WG-F6243-00-00 |
— | ||
|
08
|
08
4PC-F6311-00-00
Cable, Throttle 1
|
4PC-F6311-00-00 |
— | ||
|
09
|
09
3WG-F6329-00-00 Cap, Rubber |
3WG-F6329-00-00 |
from US $9.67 |
||
|
10
|
10
3WG-F6312-B0-00
Cable, Throttle 2
|
3WG-F6312-B0-00 |
— | ||
| replacement | |||||
|
10
|
10
3WG-F6312-C0-00
Cable, Throttle 2
|
3WG-F6312-C0-00 |
— | ||
|
11
|
11
985-06050-10-00
Screw, Pan Head
|
985-06050-10-00 |
— | ||
| replacement | |||||
|
11
|
11
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
12
|
12
4PC-F6351-00-00
Cable, Brake
|
4PC-F6351-00-00 |
— | ||
|
13
|
13
3WG-F6393-00-00
Holder
|
3WG-F6393-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
90179-06411-00 Nut |
90179-06411-00 |
from US $1.36 |
||
|
15
|
15
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
