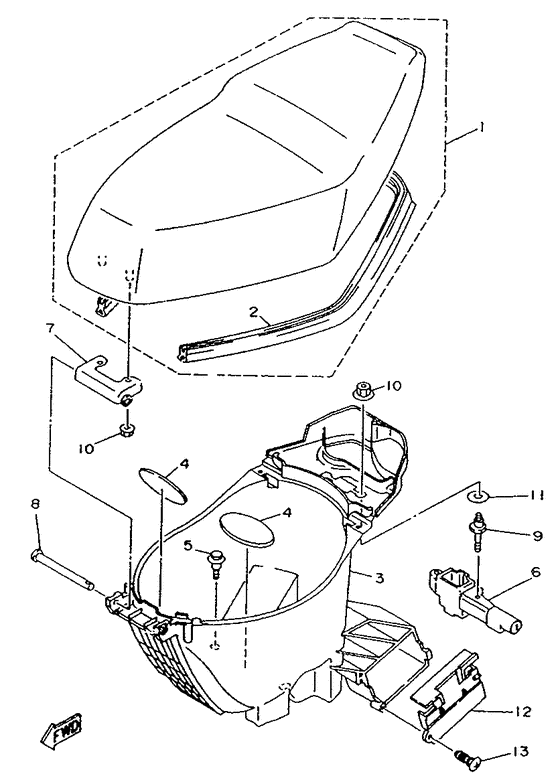

Seat. carrier Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Colour
- Spanish Dark Green Cocktail 1 (SDGC1; 0479)
- Model code
- 4MJ2
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4MJ-F4730-20-00
Double Seat Assy
Ur para sdgc1 |
4MJ-F4730-20-00 |
— | ||
|
02
|
02
4MJ-F475M-00-00
Seal
|
4MJ-F475M-00-00 |
— | ||
|
03
|
03
4BA-F415E-00-00
Label, Caution
|
4BA-F415E-00-00 |
— | ||
|
04
|
04
4MJ-F473R-00-00
Box 1
|
4MJ-F473R-00-00 |
— | ||
| replacement | |||||
|
04
|
04
4MJ-F473R-01-00
Box 1
|
4MJ-F473R-01-00 |
— | ||
|
05
|
05
4MJ-F4747-00-00
Damper, Seat
|
4MJ-F4747-00-00 |
— | ||
|
06
|
06
3WG-F118K-01-00
Label, Caution
|
3WG-F118K-01-00 |
— | ||
|
07
|
07
90109-063F1-00 Bolt |
90109-063F1-00 |
from US $1.56 |
||
|
08
|
08
4MJ-F4780-00-00
Seat Lock Assy
|
4MJ-F4780-00-00 |
— | ||
| replacement | |||||
|
08
|
08
4MJ-F4780-01-00
Seat Lock Assy
|
4MJ-F4780-01-00 |
— | ||
|
09
|
09
4MJ-F4842-00-00
Carrier, Rear
|
4MJ-F4842-00-00 |
— | ||
| replacement | |||||
|
09
|
09
4MJ-F4842-00-98
Carrier
|
4MJ-F4842-00-98 |
— | ||
|
10
|
10
95816-08012-00 Bolt, Flange |
95816-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
11
|
11
958-16060-12-00
Bolt, Flange(2Xj)
|
958-16060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
12
|
12
3WG-F4726-00-00
Hinge, Seat
|
3WG-F4726-00-00 |
— | ||
|
13
|
13
90241-10015-00 Pin |
90241-10015-00 |
from US $5.81 |
||
| replacement | |||||
|
13
|
13
902-41108-01-00 Pin |
902-41108-01-00 |
US $5.81 |
||
|
14
|
14
3VP-24717-00-00
Bolt, Seat Fitting
|
3VP-24717-00-00 |
— | ||
|
15
|
15
90179-06403-00 Nut (21W) |
90179-06403-00 |
from US $1.70 |
||
|
16
|
16
90201-08107-00 Washer, Plate |
90201-08107-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
90201-086A3-00 Washer, Plate |
90201-086A3-00 |
from US $1.70 |
||
|
17
|
17
3WG-H2129-00-00
Cover, Battery
|
3WG-H2129-00-00 |
— | ||
|
18
|
18
90167-05041-00 Screw, Truss Head Tapping |
90167-05041-00 |
from US $1.28 |
||
| replacement | |||||
|
18
|
18
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
