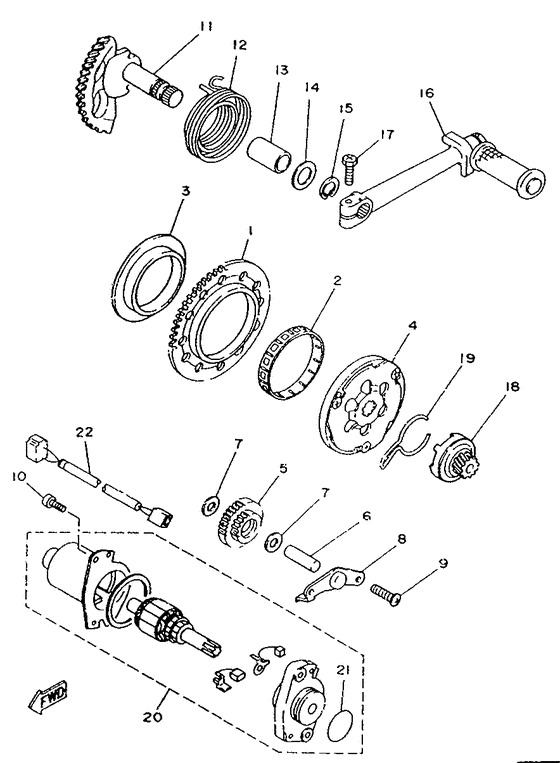

Starter Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Colour
- Spanish Dark Green Cocktail 1 (SDGC1; 0479)
- Model code
- 4MJ2
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3AA-15513-00-00 Gear 1 (71T) |
3AA-15513-00-00 |
from US $33.15 |
||
|
02
|
02
93310-257R1-00 Bearing |
93310-257R1-00 |
from US $28.48 |
||
| replacement | |||||
|
02
|
02
93310-25712-00 Bearing |
93310-25712-00 |
from US $28.48 |
||
|
03
|
03
3KJ-15528-00-00 Boss, Gear |
3KJ-15528-00-00 |
from US $14.17 |
||
|
04
|
04
3VL-15570-00-00 Starter Clutch Assy |
3VL-15570-00-00 |
from US $73.48 |
||
|
05
|
05
4CU-E5650-00-00
Idle Gear Assy
|
4CU-E5650-00-00 |
— | ||
| replacement | |||||
|
05
|
05
3AA-15650-00-00 Idle Gear Assembly (65T) |
3AA-15650-00-00 |
from US $39.44 |
||
|
06
|
06
3VL-E5659-00-00 Shaft |
3VL-E5659-00-00 |
from US $6.89 |
||
| replacement | |||||
|
06
|
06
3VL-E5659-10-00 Shaft |
3VL-E5659-10-00 |
from US $2.99 |
||
|
07
|
07
90201-084M4-00 Washer, Plate (90201-08088-00) |
90201-084M4-00 |
US $1.70 |
||
| replacement | |||||
|
07
|
07
90201-08088-00 Washer, Plate 2562171800 |
90201-08088-00 |
from US $1.70 |
||
|
08
|
08
4CU-E5532-00-00
Plate, Idle Gear
|
4CU-E5532-00-00 |
— | ||
|
09
|
09
98511-06012-00 Screw, Pan Head(3Sb) |
98511-06012-00 |
from US $1.56 |
||
| replacement | |||||
|
09
|
09
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.36 |
||
|
10
|
10
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
10
|
10
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
11
|
11
3KJ-15601-00-00 Kick Shaft Assembly |
3KJ-15601-00-00 |
from US $67.59 |
||
|
12
|
12
905-08326-09-00 Spring, Torsion (32N) |
905-08326-09-00 |
from US $8.08 |
||
|
13
|
13
90380-15083-00 Bush, Solid |
90380-15083-00 |
from US $1.62 |
||
| replacement | |||||
|
13
|
13
90380-15817-00 Bush, Solid |
90380-15817-00 |
from US $4.25 |
||
|
14
|
14
90201-154E9-00 Washer, Plate (5G3) |
90201-154E9-00 |
from US $2.55 |
||
|
15
|
15
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
16
|
16
3WG-E5620-00-00
Kick Crank Assy
|
3WG-E5620-00-00 |
— | ||
| replacement | |||||
|
16
|
16
3WG-X5620-00-00
Kick Crank Assy
|
3WG-X5620-00-00 |
— | ||
|
17
|
17
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
17
|
17
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
18
|
18
3KJ-15630-00-00 Kick Pinion Assy |
3KJ-15630-00-00 |
US $53.07 |
||
|
19
|
19
4CU-E5673-00-00
Clip
|
4CU-E5673-00-00 |
— | ||
|
20
|
20
3KJ-81800-00-00 Starting Motor Assy |
3KJ-81800-00-00 |
US $291.52 |
||
| replacement | |||||
|
20
|
20
5BM-81800-01-00 Starting Motor Assy |
5BM-81800-01-00 |
from US $285.57 |
||
|
21
|
21
93210-23614-00 O-Ring |
93210-23614-00 |
from US $1.56 |
||
|
22
|
22
3WG-H2541-00-00
Wire, Lead
|
3WG-H2541-00-00 |
— | ||
