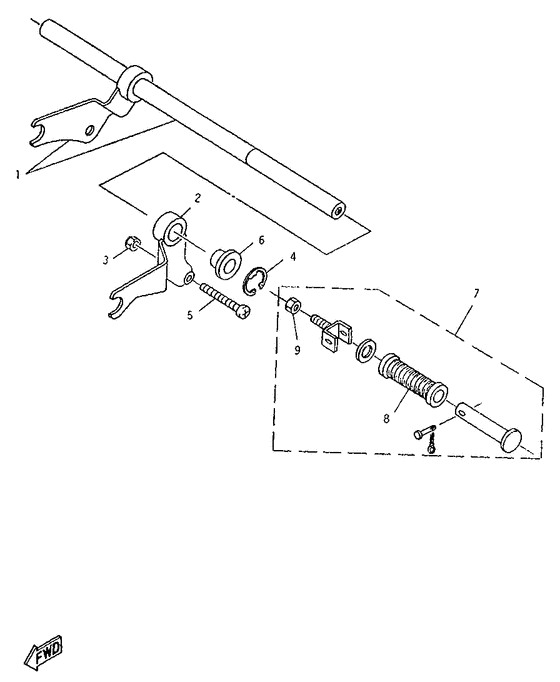

Footrest Diagram Yamaha YA50 Axis 50
- Year
- 1994
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4MJ4
- Sales region
- Greece (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4MJ-F7401-00-00
Footrest Axle
|
4MJ-F7401-00-00 |
— | ||
|
02
|
02
3WG-F741A-01-00
Arm 1
|
3WG-F741A-01-00 |
— | ||
|
03
|
03
90185-06823-00
Nut, Self-Locking
|
90185-06823-00 |
— | ||
| replacement | |||||
|
03
|
03
90185-06X01-00
Nut, Self-Locking
|
90185-06X01-00 |
— | ||
|
04
|
04
99002-15600-00
Clip
|
99002-15600-00 |
— | ||
|
05
|
05
98506-06040-00 Screw, Pan Head |
98506-06040-00 |
from US $1.56 |
||
| replacement | |||||
|
05
|
05
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
06
|
06
3WG-F7814-00-00
Bush, Pedal
|
3WG-F7814-00-00 |
— | ||
|
07
|
07
2RN-F7430-00-00
Rear Footrest Assy 1
|
2RN-F7430-00-00 |
— | ||
|
08
|
08
5T8-F7433-00-00
Cover, Rear Footrest
|
5T8-F7433-00-00 |
— | ||
|
09
|
09
90170-12062-00 Nut |
90170-12062-00 |
US $2.13 |
||
| replacement | |||||
|
09
|
09
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.13 |
||
