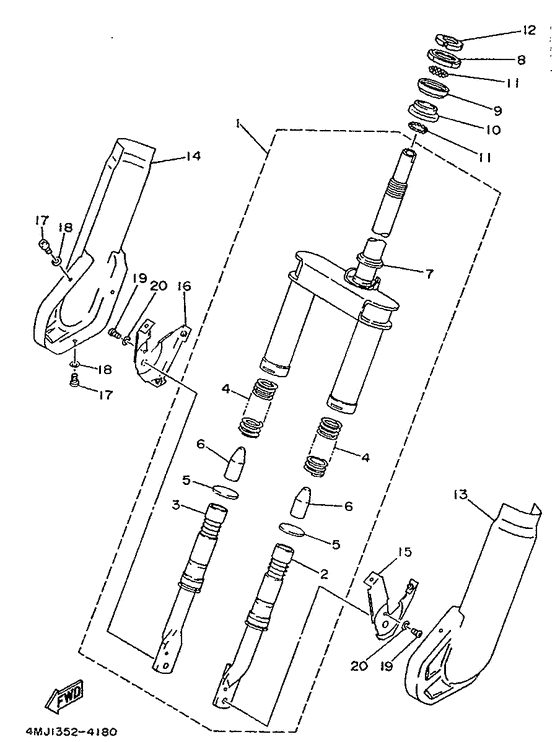

Front fork Diagram Yamaha YA50 Axis 50
- Year
- 1994
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4MJ4
- Sales region
- Greece (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4MJ-F3100-00-00
Front Fork Assy
|
4MJ-F3100-00-00 |
— | ||
|
02
|
02
4MJ-F3110-00-00
Inner Tube Comp.1
|
4MJ-F3110-00-00 |
— | ||
|
03
|
03
4MJ-F3120-00-00
Inner Tube Comp.2
|
4MJ-F3120-00-00 |
— | ||
|
04
|
04
4MJ-F3141-00-00
Spring, Front Fork
|
4MJ-F3141-00-00 |
— | ||
|
05
|
05
3WG-F3143-00-00
Seat, Spring Lower
|
3WG-F3143-00-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
4MJ-F3195-00-00
Rubber
|
4MJ-F3195-00-00 |
— | ||
|
07
|
07
1TK-F3414-00-00
Race, Ball 4
|
1TK-F3414-00-00 |
— | ||
| replacement | |||||
|
07
|
07
1TK-F3414-01-00
Race Ball 4
|
1TK-F3414-01-00 |
— | ||
|
08
|
08
3WG-F3411-00-00
Race, Ball 1
|
3WG-F3411-00-00 |
— | ||
|
09
|
09
2E9-23412-00-00 Race, Ball 2 |
2E9-23412-00-00 |
from US $22.67 |
||
| replacement | |||||
|
09
|
09
2SA-23412-00-00 |
2SA-23412-00-00 |
from US $22.67 |
||
|
10
|
10
2E9-23413-01-00 Race, Ball 3 |
2E9-23413-01-00 |
from US $4.32 |
||
|
11
|
11
93505-32002-00 Ball |
93505-32002-00 |
from US $1.84 |
||
|
12
|
12
1TK-F3454-00-00
Nut, Fitting 2
|
1TK-F3454-00-00 |
— | ||
|
13
|
13
4MJ-F3122-00-00
Cover, Outer 1
|
4MJ-F3122-00-00 |
— | ||
|
14
|
14
4MJ-F3132-00-00
Cover, Outer 2
|
4MJ-F3132-00-00 |
— | ||
|
15
|
15
4MJ-F334G-00-00
Bracket 1
|
4MJ-F334G-00-00 |
— | ||
| replacement | |||||
|
15
|
15
4MJ-F334G-01-00
Bracket 1
|
4MJ-F334G-01-00 |
— | ||
|
16
|
16
4MJ-F334H-00-00
Bracket 2
|
4MJ-F334H-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
985-06050-10-00
Screw, Pan Head
|
985-06050-10-00 |
— | ||
| replacement | |||||
|
17
|
17
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
18
|
18
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
19
|
19
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
19
|
19
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
20
|
20
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
20
|
20
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
