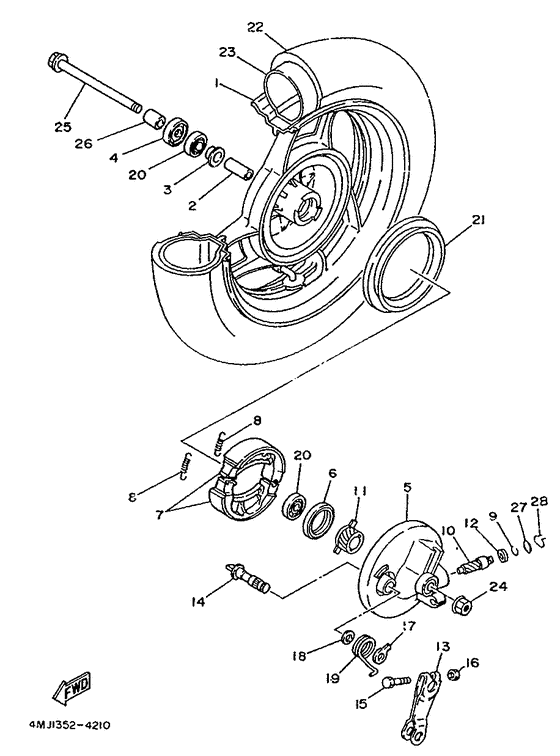

Front wheel Diagram Yamaha YA50 Axis 50
- Year
- 1994
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4MJ4
- Sales region
- Greece (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3WG-F5168-00-35
Cast Wheel, Front
Silver |
3WG-F5168-00-35 |
— | ||
|
02
|
02
90560-10289-00 Spacer |
90560-10289-00 |
from US $6.23 |
||
|
03
|
03
3WG-F5116-00-00
Flange, Spacer 2
|
3WG-F5116-00-00 |
— | ||
| replacement | |||||
|
03
|
03
3WG-F5116-R1-00
Flange, Spacer 2
|
3WG-F5116-R1-00 |
— | ||
|
04
|
04
93106-17015-00 Oil Seal |
93106-17015-00 |
from US $5.81 |
||
|
05
|
05
3WG-F5121-00-35
Plate, Brake Shoe
Silver |
3WG-F5121-00-35 |
— | ||
|
06
|
06
93106-40027-00 Oil Seal |
93106-40027-00 |
from US $7.37 |
||
|
07
|
07
2JL-W2536-10-00 Brake Shoe Kit |
2JL-W2536-10-00 |
from US $21.24 |
||
| replacement | |||||
|
07
|
07
2JL-W253E-20-00 Brake Shoe KitJuego de zapata de freno |
2JL-W253E-20-00 |
from US $24.98 |
||
|
08
|
08
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
09
|
09
3WG-F5137-00-00
Ring, Stop
|
3WG-F5137-00-00 |
— | ||
|
10
|
10
3WG-F5138-10-00
Gear, Meter
|
3WG-F5138-10-00 |
— | ||
|
11
|
11
3WG-F5135-10-00
Gear, Drive
|
3WG-F5135-10-00 |
— | ||
|
12
|
12
90201-068A6-00
Washer, Plate
|
90201-068A6-00 |
— | ||
|
13
|
13
3WG-F5155-00-00
Lever, Camshaft 1
|
3WG-F5155-00-00 |
— | ||
|
14
|
14
3Y6-25351-00-00 Camshaft |
3Y6-25351-00-00 |
from US $27.77 |
||
| replacement | |||||
|
14
|
14
4GL-25351-00-00 Camshaft |
4GL-25351-00-00 |
from US $27.77 |
||
|
15
|
15
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
16
|
16
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
17
|
17
5T8-F533A-00-00
Plate, Indicator
|
5T8-F533A-00-00 |
— | ||
|
18
|
18
3WG-F5159-00-00
Seal, Camshaft
|
3WG-F5159-00-00 |
— | ||
|
19
|
19
90508-26393-00 Spring, Torsion (K17) |
90508-26393-00 |
US $7.18 |
||
|
20
|
20
93306-20005-00 Brg,r-B 6200 30Mm 32G KyKoyo |
93306-20005-00 |
US $10.63 |
||
| replacement | |||||
|
20
|
20
93306-20009-00 Bearing (3R0)Koyo |
93306-20009-00 |
from US $12.89 |
||
|
21
|
21
3WG-F5336-00-00
Ring 2
|
3WG-F5336-00-00 |
— | ||
|
24
|
24
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
25
|
25
3WG-F5181-00-00
Axle, Wheel
|
3WG-F5181-00-00 |
— | ||
| replacement | |||||
|
25
|
25
4MJ-F5181-00-00
Axle Wheel
|
4MJ-F5181-00-00 |
— | ||
|
26
|
26
90560-10360-00 Spacer |
90560-10360-00 |
from US $7.65 |
||
|
27
|
27
93210-10096-00 O-Ring |
93210-10096-00 |
from US $1.70 |
||
|
28
|
28
3WG-F5137-10-00
Ring, Stop
|
3WG-F5137-10-00 |
— | ||
