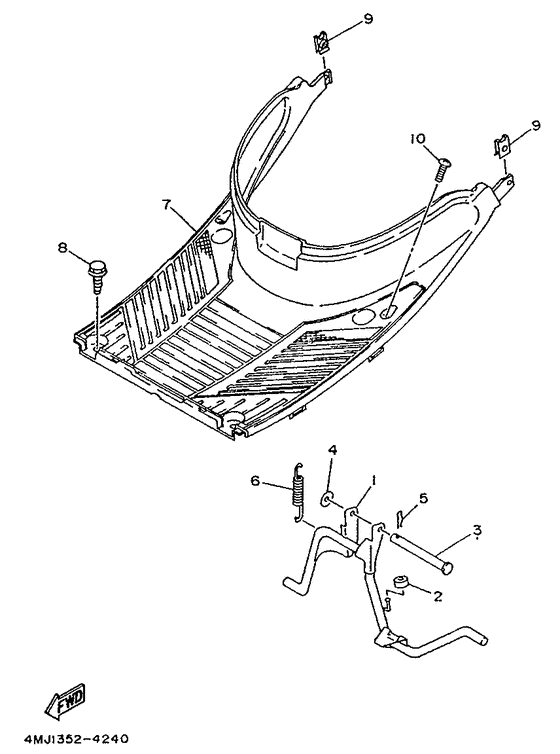

Stand & footrest Diagram Yamaha YA50 Axis 50
- Year
- 1994
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4MJ4
- Sales region
- Greece (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4CX-F7111-00-00
Stand, Main
|
4CX-F7111-00-00 |
— | ||
|
02
|
02
90387-064A4-00 Collar |
90387-064A4-00 |
from US $3.54 |
||
| replacement | |||||
|
02
|
02
90387-065X4-00 Collar |
90387-065X4-00 |
from US $3.54 |
||
|
03
|
03
90240-10137-00 Pin, Clevis |
90240-10137-00 |
from US $4.39 |
||
|
04
|
04
90202-10120-00 Washer, Plate |
90202-10120-00 |
from US $2.13 |
||
|
05
|
05
90468-12006-00 Clip |
90468-12006-00 |
from US $1.84 |
||
|
06
|
06
90506-32464-00 Spring, Tension |
90506-32464-00 |
from US $7.93 |
||
|
07
|
07
4MJ-F7481-00-00
Board, Footrest
|
4MJ-F7481-00-00 |
— | ||
|
08
|
08
90119-06118-00 Bolt, With Washer |
90119-06118-00 |
from US $1.56 |
||
|
09
|
09
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
10
|
10
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
10
|
10
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
