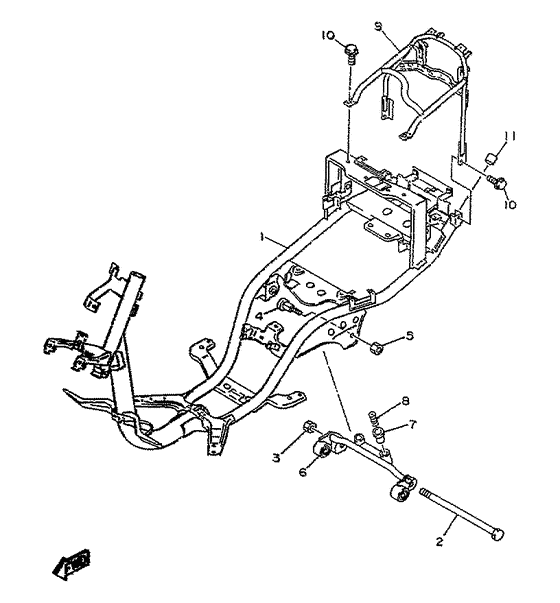

Bastidor Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Model code
- 4MJ7
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4MJ-F1110-00-00
Frame Comp
|
4MJ-F1110-00-00 |
— | ||
| replacement | |||||
|
01
|
01
4MJ-F1110-00-33
Frame Comp
|
4MJ-F1110-00-33 |
— | ||
|
02
|
02
3KJ-21481-00-00 Bolt, Engine Mounting 1 |
3KJ-21481-00-00 |
US $16.43 |
||
|
03
|
03
956-07122-00-00 Nut, Self-Locking |
956-07122-00-00 |
from US $7.69 |
||
|
04
|
04
3WG-F1481-10-00 Bolt, Engine Mounting 1 |
3WG-F1481-10-00 |
US $18.56 |
||
|
05
|
05
90185-10822-00
Nut, Self-Locking
|
90185-10822-00 |
— | ||
| replacement | |||||
|
05
|
05
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
06
|
06
3WG-F1410-00-00
Engine Bracket Comp
|
3WG-F1410-00-00 |
— | ||
| replacement | |||||
|
06
|
06
3WG-X1410-00-00
Engine Bracket Comp
|
3WG-X1410-00-00 |
— | ||
|
07
|
07
3WG-F139X-00-00
Damper
|
3WG-F139X-00-00 |
— | ||
|
08
|
08
90501-29517-00 Spring, Compression |
90501-29517-00 |
US $2.83 |
||
| replacement | |||||
|
08
|
08
905-01290-K2-00 Spring, Compression |
905-01290-K2-00 |
US $2.83 |
||
|
09
|
09
4MJ-F1232-00-00
Reinforcement, Tail
|
4MJ-F1232-00-00 |
— | ||
| replacement | |||||
|
09
|
09
4MJ-F1232-00-33
Reinforcement, Tail
|
4MJ-F1232-00-33 |
— | ||
|
10
|
10
95806-06012-00 Bolt Hexagon |
95806-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
11
|
11
4PC-F117M-00-00
Cover 2
|
4PC-F117M-00-00 |
— | ||
