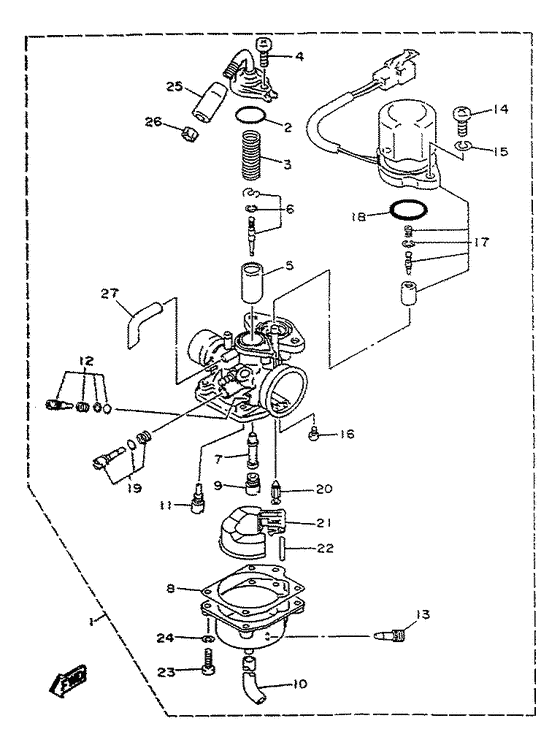

Carburetor Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Model code
- 4MJ7
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3WG-14301-03-00
Carburetor Assy 1
|
3WG-14301-03-00 |
— | ||
| replacement | |||||
|
01
|
01
3WG-14301-04-00
Carburetor Ass'y 1
|
3WG-14301-04-00 |
— | ||
|
02
|
02
4JP-14561-00-00 O-Ring |
4JP-14561-00-00 |
from US $5.95 |
||
|
03
|
03
1YU-14331-00-00 Spring, Throttle Valve |
1YU-14331-00-00 |
from US $3.59 |
||
|
04
|
04
985-80050-14-00
Screw, Pan Head
|
985-80050-14-00 |
— | ||
| replacements | |||||
|
04
|
04
98502-05014-00 Screw, Pan Head |
98502-05014-00 |
from US $1.28 |
||
|
04
|
04
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
05
|
05
3KJ-14312-25-00 Valve, Throttle 1 |
3KJ-14312-25-00 |
from US $40.21 |
||
|
06
|
06
3KJ-1490J-00-00
Needle Set
|
3KJ-1490J-00-00 |
— | ||
|
07
|
07
33A-14341-00-00 Nozzle, Main |
33A-14341-00-00 |
US $24.44 |
||
|
08
|
08
14T-14384-00-00 Gasket, Float Chamber |
14T-14384-00-00 |
from US $11.62 |
||
|
09
|
09
14T-14383-38-00
Screw, Drain
|
14T-14383-38-00 |
— | ||
|
10
|
10
3KJ-14349-01-00 Pipe |
3KJ-14349-01-00 |
from US $3.12 |
||
|
11
|
11
3KJ-14353-21-00 Jet, Pilot (42) |
3KJ-14353-21-00 |
from US $8.55 |
||
|
12
|
12
4JP-14104-00-00 Air Screw Set |
4JP-14104-00-00 |
from US $10.94 |
||
|
13
|
13
14T-14104-00-00 Screw, Air Adjusting |
14T-14104-00-00 |
from US $12.82 |
||
|
14
|
14
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
98580-03006-00 Screw, Pan Head |
98580-03006-00 |
from US $2.13 |
||
|
17
|
17
3KJ-1410A-10-00 Starter Set |
3KJ-1410A-10-00 |
from US $180.71 |
||
| replacement | |||||
|
17
|
17
3VP-1410A-00-00 Starter Set |
3VP-1410A-00-00 |
from US $180.71 |
||
|
18
|
18
1HV-14147-00-00 O-Ring |
1HV-14147-00-00 |
from US $9.92 |
||
|
19
|
19
3YJ-14103-00-00 Throttle Screw Set |
3YJ-14103-00-00 |
from US $18.74 |
||
|
20
|
20
2JA-14392-00-00 Valve, Needle |
2JA-14392-00-00 |
from US $23.66 |
||
|
21
|
21
1HV-14385-01-00 Float |
1HV-14385-01-00 |
from US $53.05 |
||
|
22
|
22
367-14386-00-00 Pin, Float |
367-14386-00-00 |
from US $4.39 |
||
|
23
|
23
98580-04016-00 Screw, Panhead (+) |
98580-04016-00 |
from US $1.07 |
||
|
24
|
24
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
24
|
24
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
25
|
25
3KJ-26329-00-00 Cap, Rubber |
3KJ-26329-00-00 |
from US $6.76 |
||
|
26
|
26
288-14161-00-00
Nut, Cable Adjusting
|
288-14161-00-00 |
— | ||
| replacement | |||||
|
26
|
26
85L-14161-00-00
Nut, Cable Adjusting
|
85L-14161-00-00 |
— | ||
