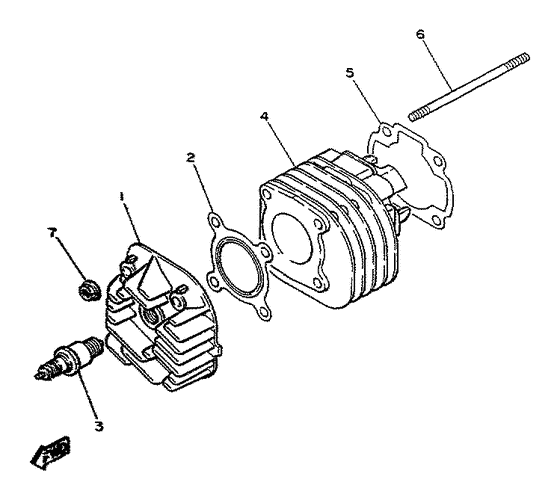

Cilindro Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Model code
- 4MJ7
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3KJ-11111-10-00 Head, Cylinder |
3KJ-11111-10-00 |
from US $45.95 |
||
|
02
|
02
3KJ-11181-00-00 Gasket, Cylinder Head 1 |
3KJ-11181-00-00 |
from US $9.49 |
||
|
03
|
03
94701-00198-00 Bpr6Hs Ngk Splug 1 |
94701-00198-00 |
from US $4.33 |
||
| replacement | |||||
|
03
|
03
BPR-6HS00-00-00 BPR6HS NGK SPLUG 1 |
BPR-6HS00-00-00 |
from US $6.40 |
||
|
04
|
04
3KJ-11311-00-00 Cylinder 1 |
3KJ-11311-00-00 |
US $276.32 |
||
| replacement | |||||
|
04
|
04
3KJ-11311-10-00 Cylinder 1 |
3KJ-11311-10-00 |
from US $213.28 |
||
|
05
|
05
4FB-11351-00-00 Gasket, Cylinder |
4FB-11351-00-00 |
from US $7.37 |
||
|
06
|
06
90116-07353-00 Bolt, Stud |
90116-07353-00 |
from US $2.13 |
||
| replacement | |||||
|
06
|
06
90116-07827-00 Bolt, Stud |
90116-07827-00 |
from US $0.81 |
||
|
07
|
07
90179-07381-00 Nut |
90179-07381-00 |
from US $2.27 |
||
| replacement | |||||
|
07
|
07
90179-07521-00 Nut(3Fr)Nut, pop |
90179-07521-00 |
from US $4.25 |
||
