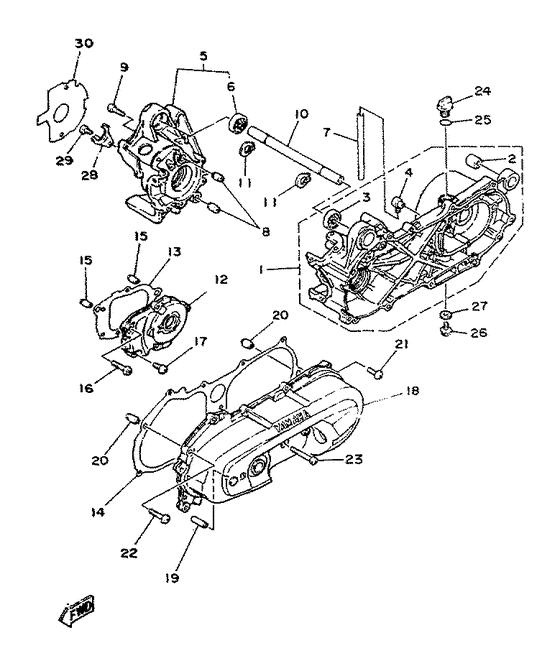

Crankcase Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Model code
- 4MJ7
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3KJ-15110-01-00 Crankcase Assy 1 |
3KJ-15110-01-00 |
from US $342.92 |
||
| replacement | |||||
|
01
|
01
3KJ-15110-03-00 Crankcase Assy 1 |
3KJ-15110-03-00 |
from US $342.92 |
||
|
02
|
02
164-22216-00-00 Bushing, Rear Cushion |
164-22216-00-00 |
from US $7.79 |
||
|
03
|
03
93306-00319-00 Bearing |
93306-00319-00 |
from US $24.17 |
||
| replacement | |||||
|
03
|
03
93306-00316-00 Bearing |
93306-00316-00 |
from US $19.52 |
||
|
04
|
04
3YJ-E5371-00-00
Breather
|
3YJ-E5371-00-00 |
— | ||
|
05
|
05
3KJ-15120-00-00 Crankcase Assy 2 |
3KJ-15120-00-00 |
from US $258.36 |
||
| replacement | |||||
|
05
|
05
3KJ-15120-02-00 Crankcase Assy 2 |
3KJ-15120-02-00 |
from US $189.32 |
||
|
06
|
06
93306-00319-00 Bearing |
93306-00319-00 |
from US $24.17 |
||
| replacement | |||||
|
06
|
06
93306-00316-00 Bearing |
93306-00316-00 |
from US $19.52 |
||
|
07
|
07
90446-11347-00 Hose |
90446-11347-00 |
from US $3.97 |
||
| replacement | |||||
|
07
|
07
91A21-07020-00 Hose |
91A21-07020-00 |
from US $3.97 |
||
|
08
|
08
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
09
|
09
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.21 |
||
|
10
|
10
3KJ-15317-00-00
Spacer, Engine Mount
|
3KJ-15317-00-00 |
— | ||
|
11
|
11
99009-17400-00 Circlip |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
93410-17X00-00 Circlip |
93410-17X00-00 |
US $1.56 |
||
|
12
|
12
3KJ-15421-00-00 Cover, Crankcase 2 |
3KJ-15421-00-00 |
from US $59.47 |
||
|
13
|
13
4FB-15461-00-00 Gasket, Crankcase Cover 2 |
4FB-15461-00-00 |
from US $11.48 |
||
|
14
|
14
4FB-15451-00-00 Gasket, Crankcase Cover 2 |
4FB-15451-00-00 |
from US $26.21 |
||
|
15
|
15
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
16
|
16
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.21 |
||
|
17
|
17
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
17
|
17
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
18
|
18
3WG-15411-00-00 Cover, Crankcase 1 |
3WG-15411-00-00 |
US $207.96 |
||
|
19
|
19
3KJ-15659-00-00 Shaft |
3KJ-15659-00-00 |
from US $5.58 |
||
|
20
|
20
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.66 |
||
|
21
|
21
98506-06025-00 Screw Pan Head |
98506-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
21
|
21
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
22
|
22
98506-06035-00 Screw Pan Head J |
98506-06035-00 |
from US $1.21 |
||
| replacement | |||||
|
22
|
22
98507-06035-00 Screw, Pan Head |
98507-06035-00 |
from US $1.21 |
||
|
23
|
23
98506-06065-00 Screw, Pan Head |
98506-06065-00 |
from US $2.27 |
||
| replacement | |||||
|
23
|
23
98507-06065-00 Screw, Pan Head |
98507-06065-00 |
from US $2.27 |
||
|
24
|
24
2T4-15363-00-00 Plug, Oil |
2T4-15363-00-00 |
from US $5.38 |
||
| replacement | |||||
|
24
|
24
4J2-15363-10-00 Plug, Oil |
4J2-15363-10-00 |
from US $2 |
||
|
25
|
25
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
25
|
25
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
26
|
26
95801-08016-00 Bolt, Flange (8A7) |
95801-08016-00 |
from US $1.21 |
||
| replacements | |||||
|
26
|
26
95814-08016-00 Bolt, Flange |
95814-08016-00 |
from US $1.21 |
||
|
26
|
26
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
27
|
27
904-30081-19-00
Gasket
|
904-30081-19-00 |
— | ||
| replacement | |||||
|
27
|
27
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.28 |
||
|
28
|
28
1HV-15128-00-00
Holder
|
1HV-15128-00-00 |
— | ||
|
29
|
29
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
29
|
29
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
30
|
30
4FB-15462-00-00 Gasket, Crankcase Cover 3 |
4FB-15462-00-00 |
from US $9.21 |
||
