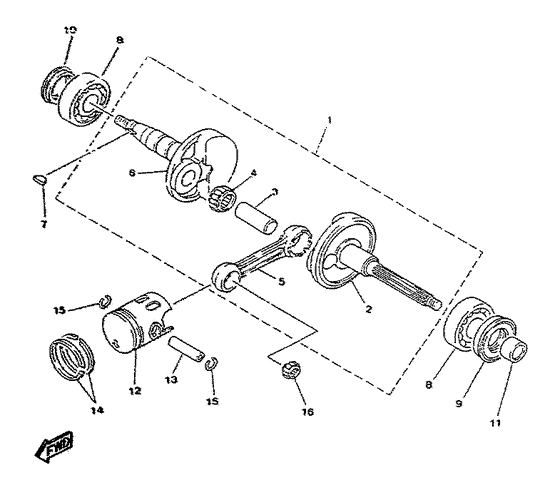

Crankshaft & Piston Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Model code
- 4MJ7
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3KJ-11400-00-00 Crankshaft Assy |
3KJ-11400-00-00 |
from US $266.04 |
||
| replacement | |||||
|
01
|
01
5SU-11400-00-00 Crankshaft Assy |
5SU-11400-00-00 |
from US $225.56 |
||
|
02
|
02
3KJ-11412-00-00 Crank 1 |
3KJ-11412-00-00 |
US $30.92 |
||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
1YU-11681-00-00 Pin, Crank 1 |
1YU-11681-00-00 |
from US $25.36 |
||
|
04
|
04
93310-416N7-00 Bearing |
93310-416N7-00 |
from US $12.18 |
||
|
05
|
05
2E9-11651-00-00 Rod, Connecting |
2E9-11651-00-00 |
from US $70.32 |
||
|
06
|
06
3KJ-11422-00-00 Crank 2 |
3KJ-11422-00-00 |
US $30.92 |
||
| replacement | |||||
|
06
|
06
3KJ-11422-01-00
Crank 2
|
3KJ-11422-01-00 |
— | ||
|
07
|
07
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.70 |
||
|
08
|
08
93306-20458-00 Bearing |
93306-20458-00 |
from US $21.96 |
||
| replacement | |||||
|
08
|
08
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $28.19 |
||
|
09
|
09
93102-20425-00 Oil Seal |
93102-20425-00 |
from US $6.80 |
||
| replacement | |||||
|
09
|
09
93102-20371-00 Oil Seal(1Yu) |
93102-20371-00 |
from US $6.80 |
||
|
10
|
10
93101-20138-00 Oil Seal |
93101-20138-00 |
from US $8.78 |
||
|
11
|
11
90387-156U0-00 Collar |
90387-156U0-00 |
from US $8.22 |
||
|
12
|
12
3PC-11631-00-96
Piston (Std)
(ur std) |
3PC-11631-00-96 |
— | ||
|
12
|
12
3PC-11635-00-00
Piston (0.25Mm O/s)
(ap) |
3PC-11635-00-00 |
— | ||
|
12
|
12
3PC-11636-00-00
Piston (0.50Mm O/s)
(ap) |
3PC-11636-00-00 |
— | ||
|
13
|
13
27V-11633-00-00 Pin, Piston |
27V-11633-00-00 |
from US $10.39 |
||
|
14
|
14
260-11601-02-00 Piston Ring Set (Std)(ur std) |
260-11601-02-00 |
from US $50.70 |
||
|
14
|
14
260-11601-12-00 Pist0N Ring Set (0.25 Mm O/s)(ap) |
260-11601-12-00 |
from US $50.70 |
||
| replacement | |||||
|
14
|
14
260-11601-13-00 Piston Ring Set (0.25Mm O/s)(ap) |
260-11601-13-00 |
from US $51.26 |
||
|
14
|
14
260-11601-22-00 Piston Ring Set (0.50Mm Os)(ap) |
260-11601-22-00 |
from US $50.70 |
||
|
15
|
15
93450-11120-00 Circlip |
93450-11120-00 |
from US $1.70 |
||
|
16
|
16
93310-210M0-00 Bearing |
93310-210M0-00 |
from US $10.48 |
||
