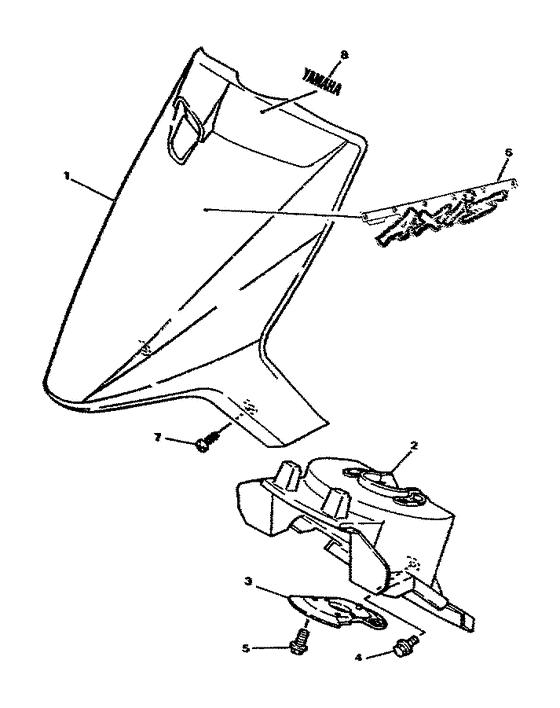

Frontal delantero Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Model code
- 4MJ7
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0-
|
0-
4MJ-F1511-00-0M
Fender, Front
(ur sweet heart red) |
4MJ-F1511-00-0M |
— | ||
|
0-
|
0-
4SJ-F1569-40-00
Graphic 1
(ur para shr) |
4SJ-F1569-40-00 |
— | ||
|
01
|
01
4MJ-F1511-00-4B
Fender, Front
(ur black 2) |
4MJ-F1511-00-4B |
— | ||
|
02
|
02
4PC-F1552-00-00
Fender, Inner
|
4PC-F1552-00-00 |
— | ||
|
03
|
03
3WG-F1553-00-00
Fender, Inner 2
|
3WG-F1553-00-00 |
— | ||
|
04
|
04
95806-06012-00 Bolt Hexagon |
95806-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
04
|
04
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
05
|
05
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
05
|
05
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.35 |
||
|
06
|
06
4SJ-F1569-30-00
Graphic 1
(ur para bl2) |
4SJ-F1569-30-00 |
— | ||
|
07
|
07
97706-50016-00 Screw, Truss Head Tapping |
97706-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
07
|
07
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
07
|
07
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
08
|
08
992-36000-80-00
Emblem, Yamaha
|
992-36000-80-00 |
— | ||
| replacement | |||||
|
08
|
08
992-46000-80-00 Emblem (YAMAHA) |
992-46000-80-00 |
from US $9.07 |
||
