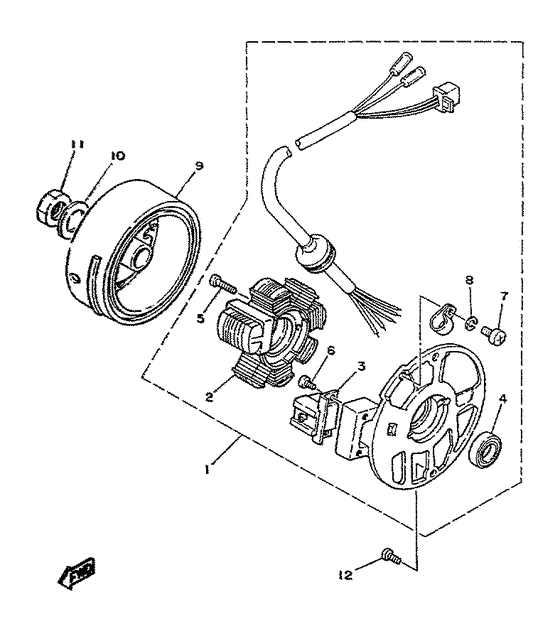

Generator Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Model code
- 4MJ7
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3KJ-85560-00-00 Base Assy |
3KJ-85560-00-00 |
US $238.08 |
||
|
02
|
02
2JA-81403-M0-00 Stator Comp |
2JA-81403-M0-00 |
from US $144.07 |
||
|
03
|
03
2JA-85580-M0-00 Coil, Pulser |
2JA-85580-M0-00 |
US $47.04 |
||
|
04
|
04
93104-19097-00 Oil Seal |
93104-19097-00 |
from US $4.82 |
||
|
05
|
05
98511-05020-00 Screw, Pan Head(4Cu) |
98511-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
05
|
05
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
06
|
06
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
06
|
06
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
07
|
07
985-01040-06-00
Screw, Pan Head
|
985-01040-06-00 |
— | ||
| replacements | |||||
|
07
|
07
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
07
|
07
901-59041-44-00
Screw, With Washer
|
901-59041-44-00 |
— | ||
|
07
|
07
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
07
|
07
99999-04427-00 Screw,pan Head W/washer |
99999-04427-00 |
US $3.04 |
||
|
08
|
08
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
08
|
08
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
09
|
09
2JA-85550-00-00 Rotor Assy |
2JA-85550-00-00 |
from US $97.53 |
||
| replacement | |||||
|
09
|
09
2JA-85550-02-00 Rotor Assy |
2JA-85550-02-00 |
from US $80.08 |
||
|
10
|
10
92907-10600-00 Washer, Plate |
92907-10600-00 |
from US $1.07 |
||
|
11
|
11
90170-10219-00 Nut |
90170-10219-00 |
from US $1.35 |
||
| replacement | |||||
|
11
|
11
90170-10011-00 Nut |
90170-10011-00 |
from US $1.35 |
||
|
12
|
12
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
