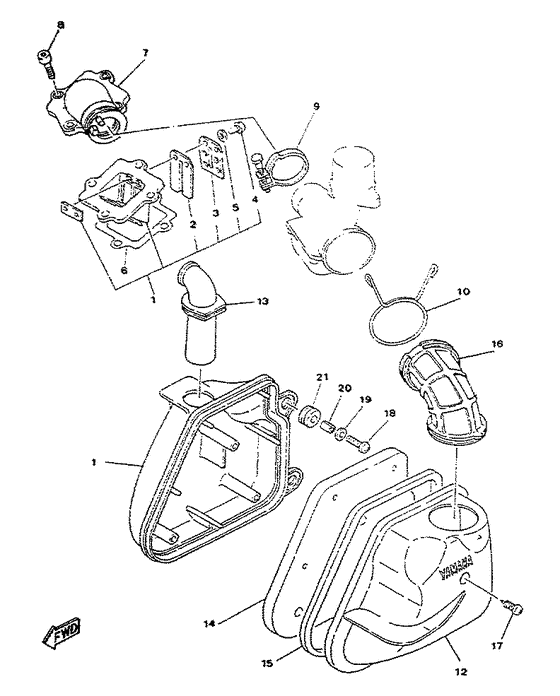

Intake Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Model code
- 4MJ7
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3KJ-13610-00-00 Reed Valve Assembly |
3KJ-13610-00-00 |
from US $45.04 |
||
|
02
|
02
3KJ-13613-00-00 Reed, Valve |
3KJ-13613-00-00 |
from US $10.17 |
||
|
03
|
03
3KJ-13616-00-00
Stopper, Reed Valve
|
3KJ-13616-00-00 |
— | ||
| replacement | |||||
|
03
|
03
3VR-13616-00-00
Stopper, Reed Valve
|
3VR-13616-00-00 |
— | ||
|
04
|
04
98501-03008-00 Screw, Pan Head |
98501-03008-00 |
from US $1.21 |
||
| replacement | |||||
|
04
|
04
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
05
|
05
92901-03600-00 Washer |
92901-03600-00 |
US $1.07 |
||
| replacement | |||||
|
05
|
05
92907-03600-00 Washer(3Sx) |
92907-03600-00 |
from US $1.07 |
||
|
06
|
06
4FB-13621-00-00 Gasket, Valve Seat |
4FB-13621-00-00 |
from US $10.91 |
||
|
07
|
07
3KJ-13555-00-00 Manifold, Intake |
3KJ-13555-00-00 |
from US $42.75 |
||
| replacement | |||||
|
07
|
07
3KJ-13555-01-00 Manifold, Intake |
3KJ-13555-01-00 |
from US $39.44 |
||
|
08
|
08
91318-06020-00 Bolt |
91318-06020-00 |
from US $1.35 |
||
| replacement | |||||
|
08
|
08
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
09
|
09
3JX-F311E-00-00
Band 2
|
3JX-F311E-00-00 |
— | ||
| replacement | |||||
|
09
|
09
90450-40X00-00
Hose, Clamp
|
90450-40X00-00 |
— | ||
|
10
|
10
90467-24140-00 Clip(3Vr) |
90467-24140-00 |
from US $3.12 |
||
|
11
|
11
3WG-E4411-00-00
Case, Air Cleaner 1
|
3WG-E4411-00-00 |
— | ||
|
12
|
12
3WG-E4412-00-00
Cap, Cleaner Case 1
|
3WG-E4412-00-00 |
— | ||
|
13
|
13
3WG-E4437-00-00
Duct
|
3WG-E4437-00-00 |
— | ||
|
14
|
14
3WG-E4451-00-00 Element, Air Cleaner |
3WG-E4451-00-00 |
US $8.28 |
||
|
15
|
15
3WG-E4452-00-00 Seal |
3WG-E4452-00-00 |
US $18.56 |
||
|
16
|
16
3WG-E4453-00-00
Joint, Air Cleaner 1
|
3WG-E4453-00-00 |
— | ||
|
17
|
17
97701-50525-00 Screw, Tapping |
97701-50525-00 |
from US $2.12 |
||
| replacement | |||||
|
17
|
17
97780-50125-00 Screw, Tapping |
97780-50125-00 |
from US $2.55 |
||
|
18
|
18
98506-06020-00 Screw, Pan Head |
98506-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
18
|
18
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
19
|
19
90201-06815-00
Washer, Plate
|
90201-06815-00 |
— | ||
|
20
|
20
90387-067V1-00 Collar(3Kj) |
90387-067V1-00 |
from US $1.70 |
||
| replacement | |||||
|
20
|
20
90387-068J5-00 Collar |
90387-068J5-00 |
from US $1.70 |
||
|
21
|
21
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.28 |
||
