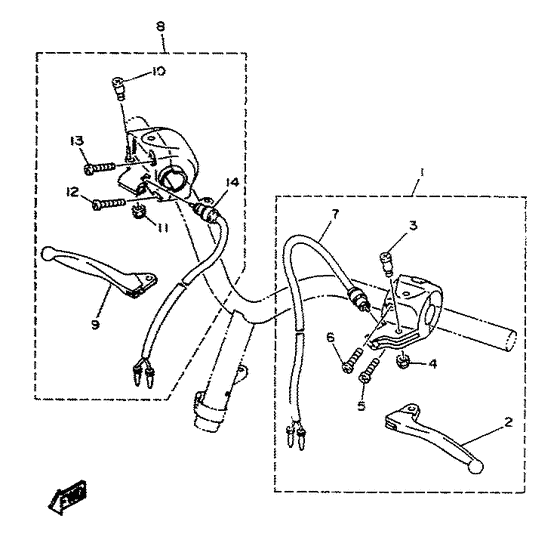

Interruptores de manillar. pal Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Model code
- 4MJ7
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VP-82910-01-00
Lever Holder Assy (Left)
|
3VP-82910-01-00 |
— | ||
| replacement | |||||
|
01
|
01
3VP-82910-09-00
Lever Holder Assy (Left)
|
3VP-82910-09-00 |
— | ||
|
02
|
02
2T4-83912-02-00 Lever 1 |
2T4-83912-02-00 |
from US $13.03 |
||
| replacement | |||||
|
02
|
02
2T4-83912-03-00 Lever 1 |
2T4-83912-03-00 |
from US $8.94 |
||
|
03
|
03
90149-06175-00 Screw |
90149-06175-00 |
from US $3.54 |
||
|
04
|
04
95706-05300-00 Nut, Flange |
95706-05300-00 |
from US $1.42 |
||
| replacement | |||||
|
04
|
04
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
05
|
05
98586-05025-00 Screw, Pan Head |
98586-05025-00 |
US $1.84 |
||
| replacement | |||||
|
05
|
05
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
06
|
06
98506-05035-00 Screw, Pan Head |
98506-05035-00 |
from US $1.42 |
||
| replacement | |||||
|
06
|
06
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
07
|
07
2T4-83980-00-00 Front Stop Switch As |
2T4-83980-00-00 |
from US $21.62 |
||
| replacement | |||||
|
07
|
07
3E1-83980-09-00 Front Stop Switch Assy |
3E1-83980-09-00 |
from US $25.12 |
||
|
08
|
08
4MJ-82920-00-00
Lever Holder Assy (Right)
|
4MJ-82920-00-00 |
— | ||
| replacement | |||||
|
08
|
08
4MJ-82920-09-00
Lever Holder Assy (Right)
|
4MJ-82920-09-00 |
— | ||
|
09
|
09
2T4-83922-02-00 Lever 2 |
2T4-83922-02-00 |
from US $12.61 |
||
| replacement | |||||
|
09
|
09
2T4-83922-03-00 Lever 2 |
2T4-83922-03-00 |
from US $8.94 |
||
|
10
|
10
90149-06175-00 Screw |
90149-06175-00 |
from US $3.54 |
||
|
11
|
11
95706-05300-00 Nut, Flange |
95706-05300-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
12
|
12
98586-05025-00 Screw, Pan Head |
98586-05025-00 |
US $1.84 |
||
| replacement | |||||
|
12
|
12
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
13
|
13
98506-05035-00 Screw, Pan Head |
98506-05035-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
14
|
14
2T4-83980-00-00 Front Stop Switch As |
2T4-83980-00-00 |
from US $21.62 |
||
| replacement | |||||
|
14
|
14
3E1-83980-09-00 Front Stop Switch Assy |
3E1-83980-09-00 |
from US $25.12 |
||
