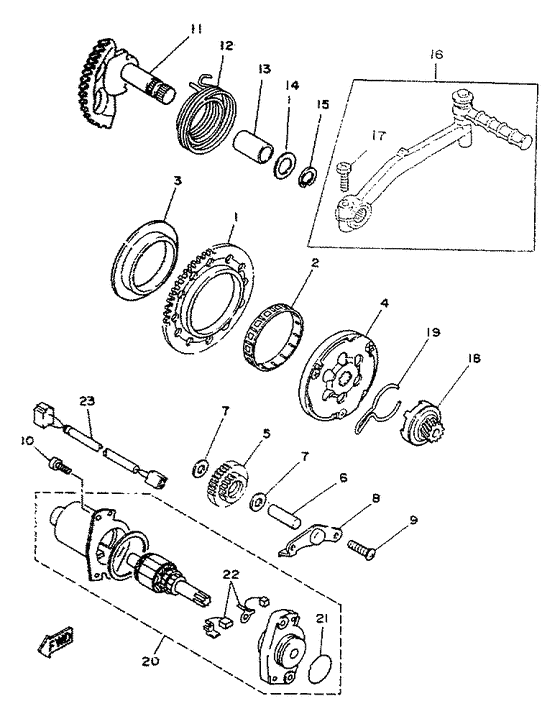

Starter Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Model code
- 4MJ7
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4JP-15513-00-00 Gear 1 (68T) |
4JP-15513-00-00 |
from US $41.86 |
||
|
02
|
02
93310-257R1-00 Bearing |
93310-257R1-00 |
from US $28.48 |
||
| replacement | |||||
|
02
|
02
93310-25712-00 Bearing |
93310-25712-00 |
from US $28.48 |
||
|
03
|
03
3KJ-15528-00-00 Boss, Gear |
3KJ-15528-00-00 |
from US $14.17 |
||
|
04
|
04
3VL-15570-00-00 Starter Clutch Assy |
3VL-15570-00-00 |
from US $73.48 |
||
|
05
|
05
4JP-15650-00-00 Idle Gear Assy (65T/20T) |
4JP-15650-00-00 |
from US $34.34 |
||
|
06
|
06
50M-13342-00-00 Shaft |
50M-13342-00-00 |
from US $5.58 |
||
| replacement | |||||
|
06
|
06
3KJ-15659-00-00 Shaft |
3KJ-15659-00-00 |
from US $5.58 |
||
|
07
|
07
90201-08008-00 Washer, Plate |
90201-08008-00 |
from US $2.55 |
||
|
08
|
08
3KJ-15532-00-00 Plate, Idle Gear |
3KJ-15532-00-00 |
from US $4.23 |
||
|
09
|
09
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
09
|
09
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
10
|
10
91318-06020-00 Bolt |
91318-06020-00 |
from US $1.35 |
||
| replacement | |||||
|
10
|
10
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
11
|
11
3KJ-15601-00-00 Kick Shaft Assembly |
3KJ-15601-00-00 |
from US $67.59 |
||
|
12
|
12
905-08326-09-00 Spring, Torsion (32N) |
905-08326-09-00 |
from US $8.08 |
||
|
13
|
13
90380-15083-00 Bush, Solid |
90380-15083-00 |
from US $1.62 |
||
| replacement | |||||
|
13
|
13
90380-15817-00 Bush, Solid |
90380-15817-00 |
from US $4.25 |
||
|
14
|
14
90201-155G5-00 Washer, Plate |
90201-155G5-00 |
from US $2.55 |
||
| replacement | |||||
|
14
|
14
90201-154E9-00 Washer, Plate (5G3) |
90201-154E9-00 |
from US $2.55 |
||
|
15
|
15
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
16
|
16
4CU-X5620-00-00
Kick Crank Assy
|
4CU-X5620-00-00 |
— | ||
|
17
|
17
97316-06025-00 Bolt |
97316-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
18
|
18
3KJ-15630-00-00 Kick Pinion Assy |
3KJ-15630-00-00 |
US $53.07 |
||
|
19
|
19
32N-15673-00-00 Clip |
32N-15673-00-00 |
from US $7.93 |
||
|
20
|
20
3KJ-81800-01-00 Starting Motor Assy |
3KJ-81800-01-00 |
from US $178.52 |
||
| replacement | |||||
|
20
|
20
5BM-81800-01-00 Starting Motor Assy |
5BM-81800-01-00 |
from US $285.57 |
||
|
21
|
21
93210-23614-00 O-Ring |
93210-23614-00 |
from US $1.56 |
||
|
22
|
22
1YU-81801-M0-00 Brush Set |
1YU-81801-M0-00 |
from US $28.48 |
||
|
23
|
23
3WG-H2541-00-00
Wire, Lead
|
3WG-H2541-00-00 |
— | ||
