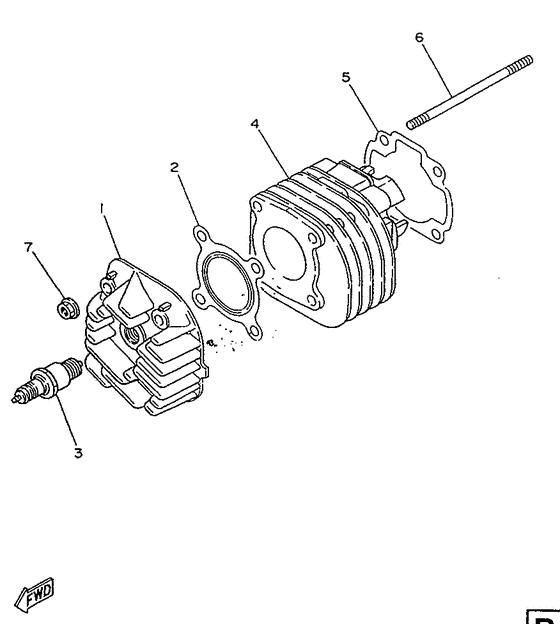

Cilindro, culata Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Colour
- Sweet Heart Red (SHR; 000M)
- Model code
- 4MJ9
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4MJ-E1111-00-00
Head, Cylinder 1
|
4MJ-E1111-00-00 |
— | ||
|
02
|
02
4EF-E1181-00-00
Gasket, Cylinder Head 1
|
4EF-E1181-00-00 |
— | ||
| replacement | |||||
|
02
|
02
4CU-E1181-00-00
Gasket, Cylinder Head 1
|
4CU-E1181-00-00 |
— | ||
|
03
|
03
94701-00198-00 Bpr6Hs Ngk Splug 1 |
94701-00198-00 |
from US $4.33 |
||
| replacement | |||||
|
03
|
03
BPR-6HS00-00-00 BPR6HS NGK SPLUG 1 |
BPR-6HS00-00-00 |
from US $6.40 |
||
|
04
|
04
4MJ-E1311-00-00
Cylinder 1
|
4MJ-E1311-00-00 |
— | ||
|
05
|
05
4CU-E1351-00-00
Gasket, Cylinder
|
4CU-E1351-00-00 |
— | ||
| replacement | |||||
|
05
|
05
5BR-E1351-00-00
Gasket, Cylinder
|
5BR-E1351-00-00 |
— | ||
|
06
|
06
90116-07353-00 Bolt, Stud |
90116-07353-00 |
from US $2.13 |
||
| replacement | |||||
|
06
|
06
90116-07827-00 Bolt, Stud |
90116-07827-00 |
from US $0.81 |
||
|
07
|
07
90179-07681-00
Nut
|
90179-07681-00 |
— | ||
