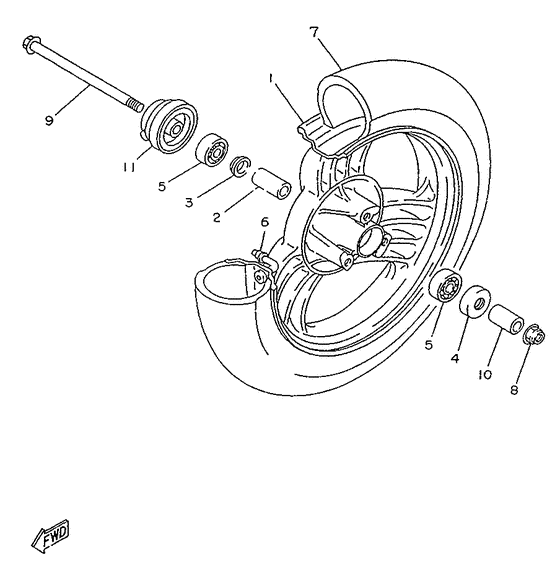

Front wheel Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Colour
- Sweet Heart Red (SHR; 000M)
- Model code
- 4MJ9
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4PC-F5168-00-35
Cast Wheel, Front
Ur silver |
4PC-F5168-00-35 |
— | ||
| replacement | |||||
|
01
|
01
4PC-X5168-00-00
Wheel Front
Ur silver |
4PC-X5168-00-00 |
— | ||
|
02
|
02
4KH-F5117-00-00
Spacer, Bearing
|
4KH-F5117-00-00 |
— | ||
| replacement | |||||
|
02
|
02
4KH-W5115-17-00 Flange, Spacer 1 |
4KH-W5115-17-00 |
US $14.29 |
||
|
03
|
03
4KH-F5115-00-00
Flange, Spacer 1
|
4KH-F5115-00-00 |
— | ||
| replacements | |||||
|
03
|
03
4KH-W5115-17-00 Flange, Spacer 1 |
4KH-W5115-17-00 |
US $14.29 |
||
|
03
|
03
4KH-W5117-00-00
Cjto. Casquillo Separador
|
4KH-W5117-00-00 |
— | ||
|
04
|
04
93106-20001-00 Oil Seal |
93106-20001-00 |
US $5.81 |
||
|
05
|
05
933-06300-03-00 Bearing |
933-06300-03-00 |
from US $9.60 |
||
|
06
|
06
3VL-F5170-10-00 Air Valve Assy |
3VL-F5170-10-00 |
from US $21.56 |
||
|
08
|
08
90185-10822-00
Nut, Self-Locking
|
90185-10822-00 |
— | ||
| replacement | |||||
|
08
|
08
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
09
|
09
3VP-25181-00-00 Axle, Wheel |
3VP-25181-00-00 |
from US $7.15 |
||
| replacement | |||||
|
09
|
09
3XG-F5181-00-00 Axle, Wheel |
3XG-F5181-00-00 |
from US $5.36 |
||
|
10
|
10
90387-10079-00 Collar |
90387-10079-00 |
from US $7.63 |
||
|
11
|
11
4JC-F5190-10-00
Gear Unit Assy
|
4JC-F5190-10-00 |
— | ||
