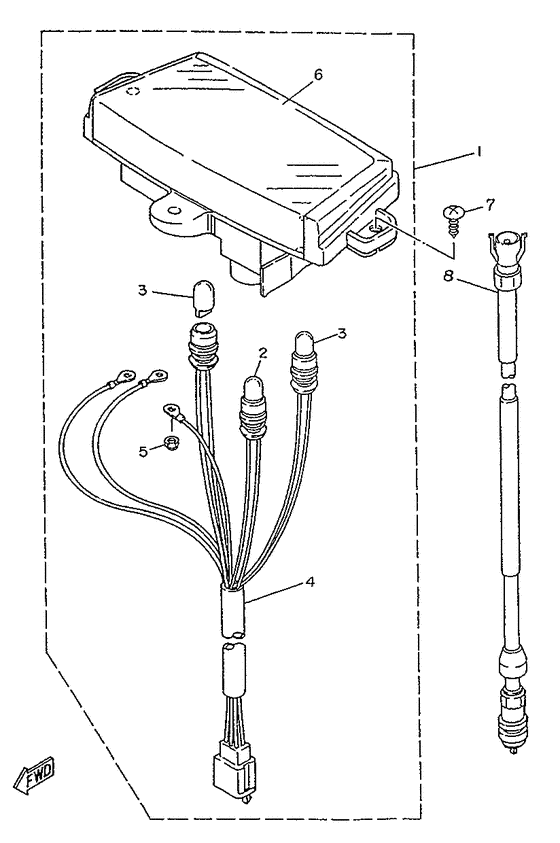

Panel de cuenta kms. y testigo Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Colour
- Sweet Heart Red (SHR; 000M)
- Model code
- 4MJ9
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4MJ-H3510-10-00
Speedometer Assy
|
4MJ-H3510-10-00 |
— | ||
| replacement | |||||
|
01
|
01
4MJ-H3510-A0-00
Speedometer Assy
|
4MJ-H3510-A0-00 |
— | ||
|
02
|
02
4MJ-H3516-00-00
Bulb(12V 3W)
|
4MJ-H3516-00-00 |
— | ||
|
03
|
03
4MJ-H3517-00-00
Bulb(12V 1.2W)
|
4MJ-H3517-00-00 |
— | ||
|
04
|
04
4MJ-H3520-00-00
Socket Cord Assy
|
4MJ-H3520-00-00 |
— | ||
|
05
|
05
4MJ-H366W-00-00
Nut
|
4MJ-H366W-00-00 |
— | ||
|
06
|
06
4MJ-H353K-00-00
Glass Plate
|
4MJ-H353K-00-00 |
— | ||
|
07
|
07
97701-50016-00 Screw, Truss Head Tapping |
97701-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
07
|
07
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
07
|
07
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
08
|
08
3WG-H3550-R1-00
Speedometer Cable Assy
|
3WG-H3550-R1-00 |
— | ||
| replacement | |||||
|
08
|
08
4PC-H3550-10-00
Speedometer Cable Assy
|
4PC-H3550-10-00 |
— | ||
