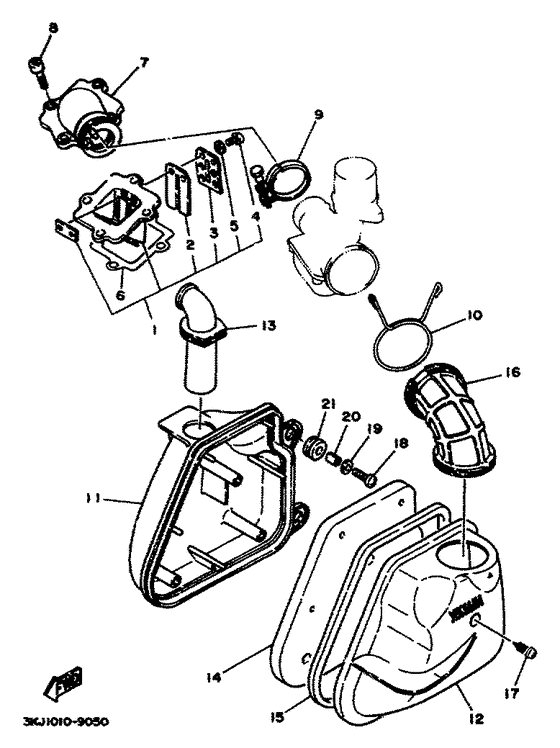

Intake Diagram Yamaha YA50 Forte 50
- Year
- 1994
- Colour
- Frost Silver (FRS; 009G)
- Model code
- 4PC1
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4CU-E3610-00-00
Reed Valve Assy
|
4CU-E3610-00-00 |
— | ||
| replacement | |||||
|
01
|
01
3KJ-13610-00-00 Reed Valve Assembly |
3KJ-13610-00-00 |
from US $45.04 |
||
|
02
|
02
4CU-E3613-00-00
Reed, Valve
|
4CU-E3613-00-00 |
— | ||
|
03
|
03
4CU-E3616-00-00
Stopper, Reed Valve
|
4CU-E3616-00-00 |
— | ||
|
04
|
04
98507-03008-00 Screw, Pan Head |
98507-03008-00 |
from US $2.27 |
||
| replacement | |||||
|
04
|
04
98517-03008-00 Screw, Pan Head |
98517-03008-00 |
from US $2.27 |
||
|
05
|
05
92907-03600-00 Washer(3Sx) |
92907-03600-00 |
from US $1.07 |
||
|
06
|
06
4CU-E3621-00-00 Gasket, Valve Seat |
4CU-E3621-00-00 |
US $10.91 |
||
|
07
|
07
4EE-E3555-00-00
Manifold, Intake
|
4EE-E3555-00-00 |
— | ||
| replacement | |||||
|
07
|
07
4CU-E3555-20-00
Manifold, Intake
|
4CU-E3555-20-00 |
— | ||
|
08
|
08
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
08
|
08
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
09
|
09
90460-32242-00 Hose Clamp Assy |
90460-32242-00 |
from US $7.08 |
||
| replacement | |||||
|
09
|
09
90450-32081-00 Hose Clamp Assy |
90450-32081-00 |
from US $7.08 |
||
|
10
|
10
90467-24140-00 Clip(3Vr) |
90467-24140-00 |
from US $3.12 |
||
|
11
|
11
3WG-E4411-00-00
Case, Air Cleaner 1
|
3WG-E4411-00-00 |
— | ||
|
12
|
12
3WG-E4412-00-00
Cap, Cleaner Case 1
|
3WG-E4412-00-00 |
— | ||
|
13
|
13
3WG-E4437-00-00
Duct
|
3WG-E4437-00-00 |
— | ||
|
14
|
14
3WG-E4451-00-00 Element, Air Cleaner |
3WG-E4451-00-00 |
US $8.28 |
||
|
15
|
15
3WG-E4452-00-00 Seal |
3WG-E4452-00-00 |
US $18.56 |
||
|
16
|
16
3WG-E4453-00-00
Joint, Air Cleaner 1
|
3WG-E4453-00-00 |
— | ||
|
17
|
17
977-07501-25-00 Screw, Tapping |
977-07501-25-00 |
from US $1.70 |
||
| replacement | |||||
|
17
|
17
97707-50525-00 Screw, Tapping |
97707-50525-00 |
from US $1.34 |
||
|
18
|
18
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
18
|
18
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
19
|
19
90201-06815-00
Washer, Plate
|
90201-06815-00 |
— | ||
|
20
|
20
90387-068C7-00
Collar
|
90387-068C7-00 |
— | ||
| replacements | |||||
|
20
|
20
90387-067V1-00 Collar(3Kj) |
90387-067V1-00 |
from US $1.70 |
||
|
20
|
20
90387-068J5-00 Collar |
90387-068J5-00 |
from US $1.70 |
||
|
21
|
21
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.28 |
||
