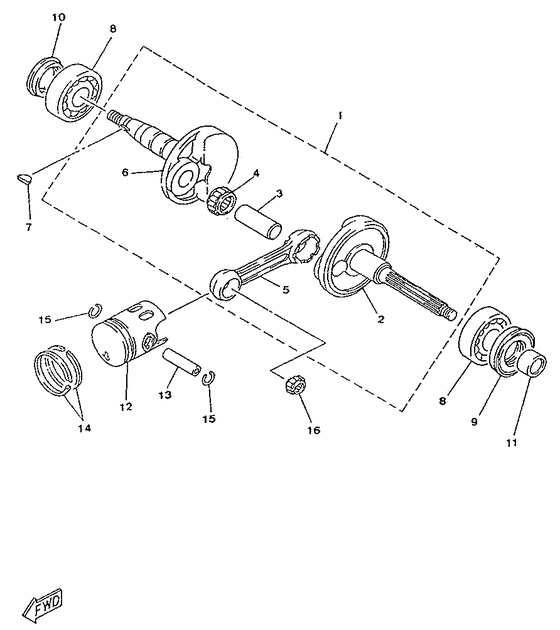

Crankshaft & Piston Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4PC6
- Sales region
- Italy (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4CU-E1400-00-00
Crankshaft Assy
|
4CU-E1400-00-00 |
— | ||
| replacement | |||||
|
01
|
01
5RN-E1400-11-00
Crankshaft Assy
|
5RN-E1400-11-00 |
— | ||
|
02
|
02
4CU-E1412-00-00
Crank 1
|
4CU-E1412-00-00 |
— | ||
| replacement | |||||
|
02
|
02
5RN-E1400-11-00
Crankshaft Assy
|
5RN-E1400-11-00 |
— | ||
|
03
|
03
1YU-11681-00-00 Pin, Crank 1 |
1YU-11681-00-00 |
from US $25.36 |
||
|
04
|
04
3VL-E1415-00-00
Bearing Assy 1
|
3VL-E1415-00-00 |
— | ||
| replacement | |||||
|
04
|
04
933-10416-X9-00
Bearing
|
933-10416-X9-00 |
— | ||
|
05
|
05
3VL-E1651-10-00
Rod, Connecting
|
3VL-E1651-10-00 |
— | ||
|
06
|
06
4CU-E1422-00-00
Crank 2
|
4CU-E1422-00-00 |
— | ||
| replacement | |||||
|
06
|
06
5RN-E1400-11-00
Crankshaft Assy
|
5RN-E1400-11-00 |
— | ||
|
07
|
07
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.70 |
||
|
08
|
08
93306-20458-00 Bearing |
93306-20458-00 |
from US $21.96 |
||
| replacement | |||||
|
08
|
08
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $28.19 |
||
|
09
|
09
93102-20425-00 Oil Seal |
93102-20425-00 |
from US $6.80 |
||
| replacement | |||||
|
09
|
09
93102-20371-00 Oil Seal(1Yu) |
93102-20371-00 |
from US $6.80 |
||
|
10
|
10
91101-20138-00
Bolt
|
91101-20138-00 |
— | ||
|
11
|
11
90387-156U0-00 Collar |
90387-156U0-00 |
from US $8.22 |
||
|
12
|
12
3VL-E1631-00-96
Piston (Std)
Ur std |
3VL-E1631-00-96 |
— | ||
| replacement | |||||
|
12
|
12
3VL-E1631-00-00
Piston (Std)
Ur std |
3VL-E1631-00-00 |
— | ||
|
12
|
12
3VL-E1636-00-00
Piston (0.50Mm O/s)
Ap |
3VL-E1636-00-00 |
— | ||
|
13
|
13
3VL-E1633-00-00
Pin, Piston
|
3VL-E1633-00-00 |
— | ||
|
14
|
14
3VL-E1610-00-00
Piston Ring Set (Std)
Ur std |
3VL-E1610-00-00 |
— | ||
|
14
|
14
3VL-E1610-20-00
Piston Ring Set (0.50Mm O/s)
Ap |
3VL-E1610-20-00 |
— | ||
|
15
|
15
93450-11120-00 Circlip |
93450-11120-00 |
from US $1.70 |
||
|
16
|
16
93310-210M0-00 Bearing |
93310-210M0-00 |
from US $10.48 |
||
