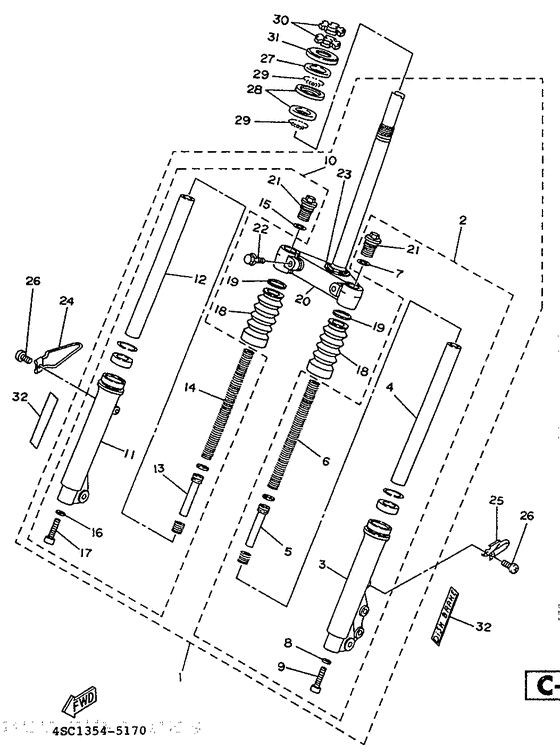

Front fork Diagram Yamaha YA50 Axis 50
- Year
- 1995
- Colour
- Black Solid 1 (BS1; 005C)
- Model code
- 4SC1
- Sales region
- Italy (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4SC-F3100-00-00
Front Fork Assy
|
4SC-F3100-00-00 |
— | ||
|
02
|
02
4SC-F3102-00-00
Front Fork Assy (L.h)
|
4SC-F3102-00-00 |
— | ||
|
03
|
03
4SC-F3126-00-00
Tube, Outer (Left)
|
4SC-F3126-00-00 |
— | ||
|
04
|
04
4SC-F3110-00-00
Inner Tube Comp.1
|
4SC-F3110-00-00 |
— | ||
|
05
|
05
4SC-F3170-00-00
Cylinder Comp., Front Fork
|
4SC-F3170-00-00 |
— | ||
|
06
|
06
4SC-F3141-00-00
Spring, Front Fork
|
4SC-F3141-00-00 |
— | ||
|
07
|
07
3GF-F3147-00-00 O-Ring |
3GF-F3147-00-00 |
from US $0.45 |
||
| replacement | |||||
|
07
|
07
93210-16275-00 O-Ring |
93210-16275-00 |
from US $1.63 |
||
|
08
|
08
4JL-F3158-00-00
Gasket
|
4JL-F3158-00-00 |
— | ||
|
09
|
09
3GF-F3181-50-00
Bolt,hexacon Socket Head
|
3GF-F3181-50-00 |
— | ||
|
10
|
10
4SC-F3103-00-00
Front Fork Assy (R.h)
|
4SC-F3103-00-00 |
— | ||
|
11
|
11
4SC-F3136-00-00
Tube, Outer (Right)
|
4SC-F3136-00-00 |
— | ||
|
12
|
12
4SC-F3110-00-00
Inner Tube Comp.1
|
4SC-F3110-00-00 |
— | ||
|
13
|
13
4SC-F3170-00-00
Cylinder Comp., Front Fork
|
4SC-F3170-00-00 |
— | ||
|
14
|
14
4SC-F3141-00-00
Spring, Front Fork
|
4SC-F3141-00-00 |
— | ||
|
15
|
15
3FG-F3147-00-00
O-Ring
|
3FG-F3147-00-00 |
— | ||
|
16
|
16
4JL-F3158-00-00
Gasket
|
4JL-F3158-00-00 |
— | ||
|
17
|
17
3GF-F3181-00-00 Bolt, Hexagon Socket Head |
3GF-F3181-00-00 |
from US $1.67 |
||
|
18
|
18
4JL-F3191-00-00 Boot |
4JL-F3191-00-00 |
US $16.86 |
||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
4JL-F3192-00-00 Band |
4JL-F3192-00-00 |
US $4.19 |
||
|
20
|
20
4JL-F3340-00-00
Under Bracket Comp
|
4JL-F3340-00-00 |
— | ||
|
21
|
21
4JL-F3356-00-00
Bolt 2
|
4JL-F3356-00-00 |
— | ||
|
22
|
22
3GF-F3346-00-00 Bolt 1 |
3GF-F3346-00-00 |
from US $1.28 |
||
|
23
|
23
22F-23414-01-00 Race, Ball 4 |
22F-23414-01-00 |
from US $8.22 |
||
| replacement | |||||
|
23
|
23
BP2-23414-00-00 Race, Ball |
BP2-23414-00-00 |
from US $7.45 |
||
|
24
|
24
3XG-F3317-00-00 Holder, Cable |
3XG-F3317-00-00 |
US $8.64 |
||
|
25
|
25
3XG-F5875-00-00
Holder, Brake Hose 1
|
3XG-F5875-00-00 |
— | ||
|
26
|
26
9580L-06010-00 Bolt, Flange |
9580L-06010-00 |
from US $0.27 |
||
| replacement | |||||
|
26
|
26
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
27
|
27
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
27
|
27
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
28
|
28
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
28
|
28
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
29
|
29
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
30
|
30
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
30
|
30
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
30
|
30
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
31
|
31
3XG-F3416-00-00 Cover, Ball Race 2 |
3XG-F3416-00-00 |
US $2.83 |
||
| replacement | |||||
|
31
|
31
3VP-23416-00-00 Cover, Ball Race 2 |
3VP-23416-00-00 |
US $2.83 |
||
|
32
|
32
4JL-F3108-00-00
Emblem
Ur black |
4JL-F3108-00-00 |
— | ||
|
32
|
32
4JL-F3108-20-00
Emblem
Ur red |
4JL-F3108-20-00 |
— | ||
