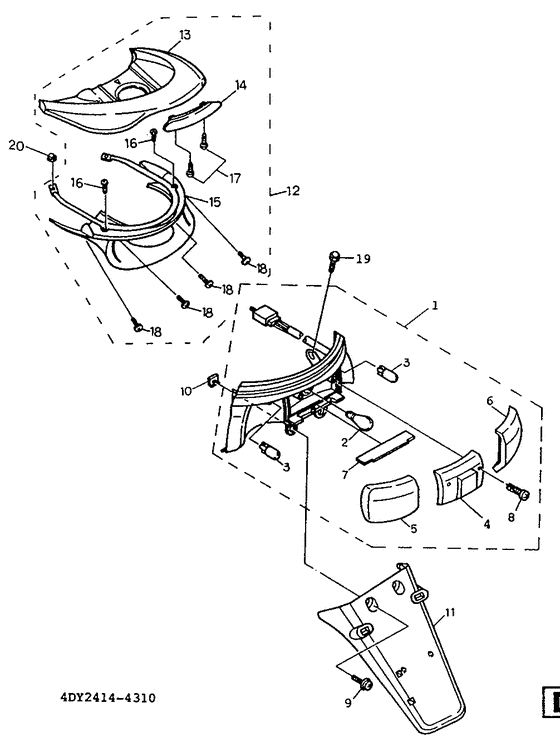

Taillight Diagram Yamaha YA50 Axis 50
- Year
- 1995
- Colour
- Black Solid 1 (BS1; 005C)
- Model code
- 4SC1
- Sales region
- Italy (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4SC-H4700-00-00
Taillight Assy
|
4SC-H4700-00-00 |
— | ||
|
02
|
02
1NT-H4714-V0-00 Bulb (12V-21/5W) |
1NT-H4714-V0-00 |
US $4.79 |
||
|
03
|
03
3XG-H3311-00-00 Bulb (12V-10W) |
3XG-H3311-00-00 |
US $3.44 |
||
| replacement | |||||
|
03
|
03
4AC-H3311-00-00 Bulb, Flasher |
4AC-H3311-00-00 |
US $3.09 |
||
|
04
|
04
4DY-H4721-00-00
Lens, Taillight
|
4DY-H4721-00-00 |
— | ||
|
05
|
05
4DY-H3332-00-00
Lens, Flasher
Ap |
4DY-H3332-00-00 |
— | ||
|
05
|
05
4DY-H3332-20-00
Lens, Flasher
|
4DY-H3332-20-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
4DY-H3342-00-00
Lens, Flasher 2
Ap |
4DY-H3342-00-00 |
— | ||
|
06
|
06
4DY-H3342-20-00
Lens, Flasher 2
|
4DY-H3342-20-00 |
— | ||
|
07
|
07
4DY-H4743-00-00
Lens, Licence Light
|
4DY-H4743-00-00 |
— | ||
|
08
|
08
97707-40620-00 Screw, Pan Tap.2 Slit |
97707-40620-00 |
from US $1.50 |
||
| replacement | |||||
|
08
|
08
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.50 |
||
|
09
|
09
97607-06220-00 Screw, With Washer |
97607-06220-00 |
from US $1.28 |
||
|
10
|
10
901-83058-07-00
Nut, Spring
|
901-83058-07-00 |
— | ||
| replacement | |||||
|
10
|
10
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.28 |
||
|
11
|
11
4DY-H4751-00-00
Bracket, License
|
4DY-H4751-00-00 |
— | ||
|
12
|
12
4SG-H4790-00-P2
High Mount Stop Lamp Assy
Ur red |
4SG-H4790-00-P2 |
— | ||
|
12
|
12
4SC-F4790-00-4B
Seat Back Assy
Ur black |
4SC-F4790-00-4B |
— | ||
|
13
|
13
4JL-H4396-00-4B
Cover
Ur black |
4JL-H4396-00-4B |
— | ||
|
13
|
13
4JL-H4396-00-P1
Cover
Ur red |
4JL-H4396-00-P1 |
— | ||
|
14
|
14
4JL-H3720-00-00
L.e.d Ass'y
|
4JL-H3720-00-00 |
— | ||
|
15
|
15
4JL-H4544-00-00
Cover
|
4JL-H4544-00-00 |
— | ||
|
16
|
16
90167-05025-00 Screw, Truss Head Tapping |
90167-05025-00 |
from US $1.13 |
||
| replacement | |||||
|
16
|
16
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.13 |
||
|
17
|
17
977-07405-12-00
Screw, Pan Tap.2
|
977-07405-12-00 |
— | ||
| replacement | |||||
|
17
|
17
97707-40612-00 Screw, Tapping |
97707-40612-00 |
from US $1.50 |
||
|
18
|
18
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
18
|
18
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.65 |
||
|
19
|
19
90111-08802-00 Bolt |
90111-08802-00 |
US $1.47 |
||
|
20
|
20
90176-06065-00 Nut, Crown |
90176-06065-00 |
from US $1.22 |
||
