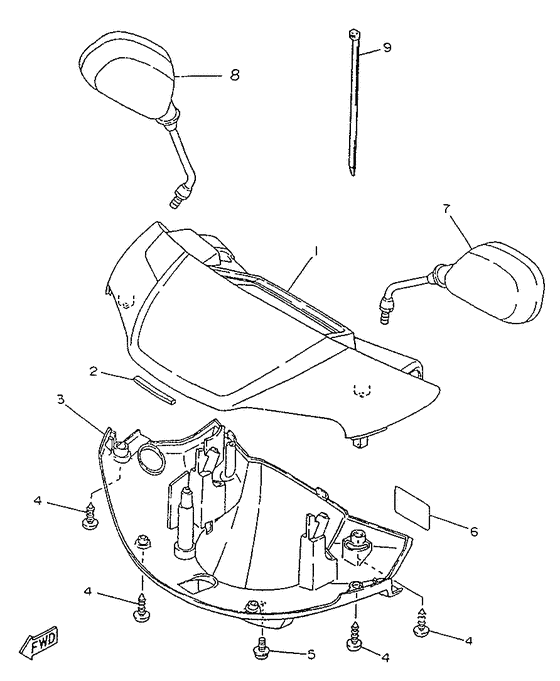

Cowling 1 Diagram Yamaha YA50 Axis 50
- Year
- 1996
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4SJ3
- Sales region
- Belgium (999)
- Engine Capacity
- 50
- Model
- YA50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4PC-F6213-00-0M
Cover, Upper
Ur sweet heart red |
4PC-F6213-00-0M |
— | ||
|
01
|
01
4PC-F6213-00-4B
Cover, Upper
Ur black 2 |
4PC-F6213-00-4B |
— | ||
|
02
|
02
4MJ-F639G-00-00
Seal
|
4MJ-F639G-00-00 |
— | ||
|
03
|
03
4MJ-F6215-10-00
Cover, Lower
Ur yamaha black |
4MJ-F6215-10-00 |
— | ||
|
04
|
04
97701-50016-00 Screw, Truss Head Tapping |
97701-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
04
|
04
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
04
|
04
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
05
|
05
90159-05028-00 Screw, With Washer |
90159-05028-00 |
from US $2.83 |
||
| replacement | |||||
|
05
|
05
90159-05121-00 Screw, With Washer |
90159-05121-00 |
from US $2.83 |
||
|
06
|
06
4SJ-F415E-00-00
Etiqueta Atencion
|
4SJ-F415E-00-00 |
— | ||
|
07
|
07
4MJ-F6280-10-00
Rear View Mirror Assy(Left)
|
4MJ-F6280-10-00 |
— | ||
|
08
|
08
4MJ-F6290-10-00
Rear View Mirror Assy (Right)
|
4MJ-F6290-10-00 |
— | ||
|
09
|
09
90464-13804-00
Clamp
|
90464-13804-00 |
— | ||
